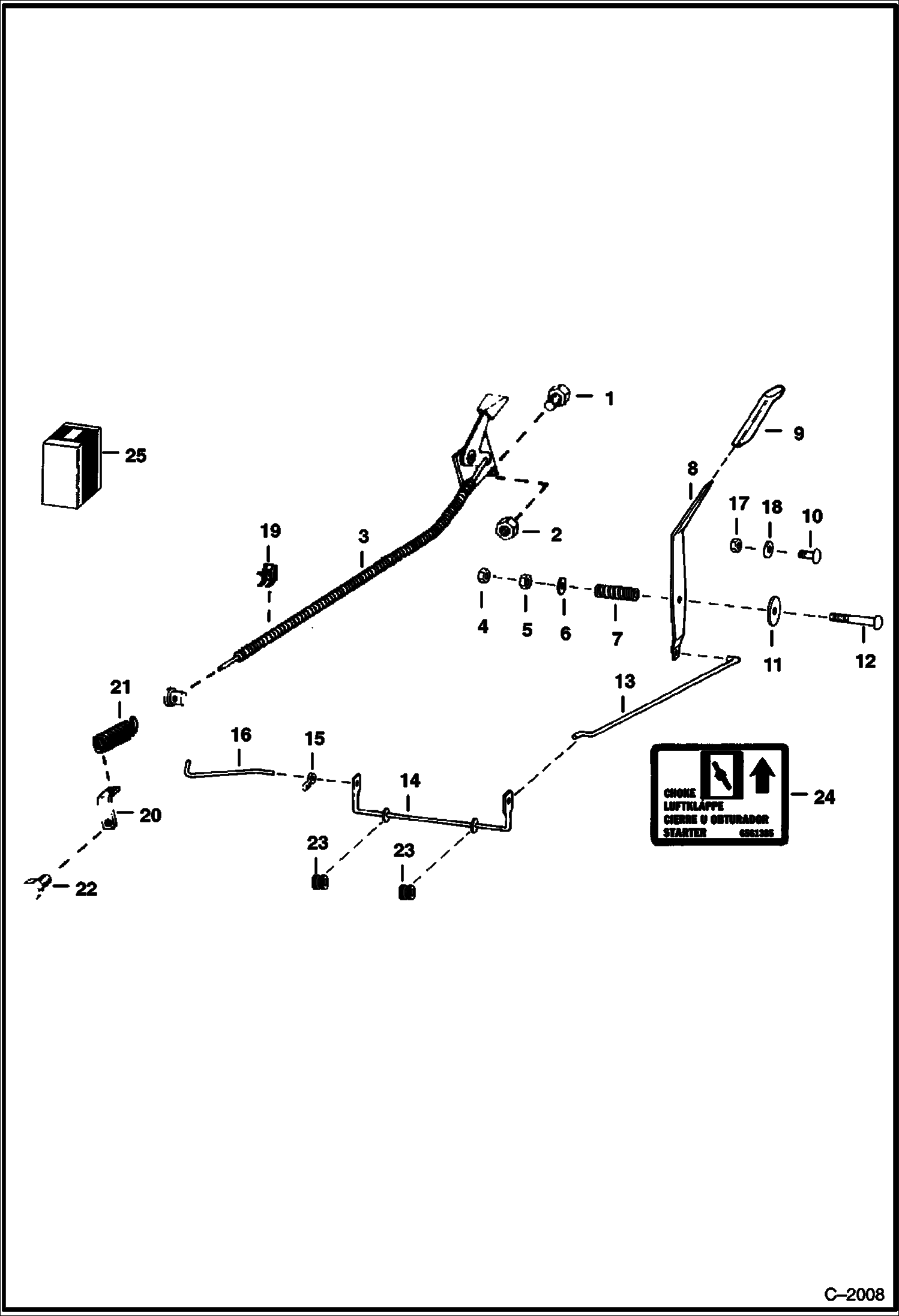

Запчасти Bobcat 500s THROTTLE POWER UNIT

1

45G1008

BOLT

2

50D10

LOCKNUT

3

6560601

CABLE choke

4

61D6

NUT 5

5

85D6

NUT, 5

6

27E6

WASHER 5

7

6562126

SPRING

8

6563940

LEVER

9

6553557

GRIP

10

37C616

BOLT Was 6514537 - A

11

6562127

WASHER

12

7C640

BOLT

13

6553559

ROD

14

6563096

LINKAGE ROD

15

6519479

CLIP

16

6553558

ROD throttle

17

57D6

NUT 5

18

25E21

WASHER 5 linkage

19

6514780

CLAMP

20

6560533

BRACKET

21

6560536

SPRING

22

17C508

BOLT

23

6519484

GROMMET retainer

24

6561385

DECAL

25

6561996

KIT choke - Ref. 1-3, 19-21 & 24
