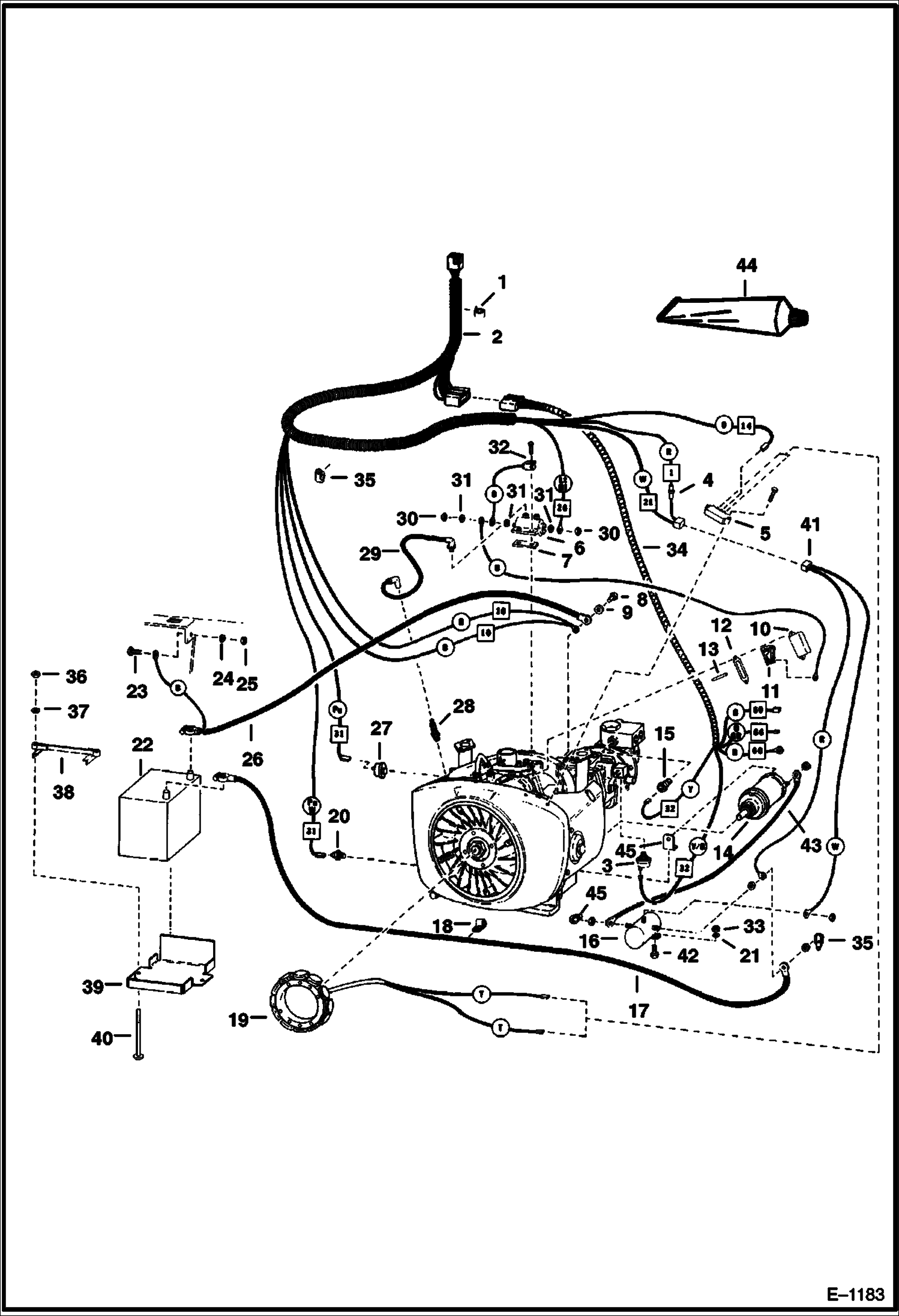

Запчасти Bobcat 500s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

30H47

CLIP

2

6562824

HARNESS

3

6557449

SWITCH hydraulic pressure

4

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

4

608869

FUSE Was 6515208 - A

5

6513972

RECTIFIER W/regulator

6

6512212

COIL

7

6517345

PLATE

8

17C620

BOLT

9

6E7

WASHER

10

6518879

COVER

11

6518868

BREAKER points

11

BRACKET NLA - For Points

12

6518867

GASKET

13

6512240

PUSH ROD push

14

6512287

STARTER See Illustration STARTER/ C2039

15

6598384

SWITCH hydro. temp.

16

6659319

SOLENOID Was 6632186 - A

17

6553748

CABLE positive

18

30H62

CLIP

19

6518264

STATOR See Illustration ALTERNATOR/ C1028

20

SWITCH NLA - eng. oil temp. - Was 6557838 - A

21

25E13

WASHER 5

22

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

22

6630154

CAP gang - Danger

22

6630155

CAP gang - Poison

22

6514898

CAP tilt-tite

23

17C512

BOLT 5

24

6E5

WASHER

25

61D5

NUT

26

6557451

CABLE negative

27

6631010

SWITCH, PRESS OIL ENG engine oil press.

28

6660301

SPARK PLUG resistor - Was 6512814 - A

29

6513589

WIRE

30

14D10

NUT

31

12E10

WASHER

32

6518873

CONDENSER

33

83D4

NUT 10

34

6563359

HARNESS

35

6560172

COVER terminal

36

59D5

NUT 5

37

25E15

WASHER

38

7024123

CLAMP Was 6563462 - A

39

6558826

MOUNT

40

6569623

BOLT

41

6558101

HARNESS

42

17C412

BOLT 5

43

WIRE NSS - Purchase Locally

44

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

45

6561936

BRACKET
