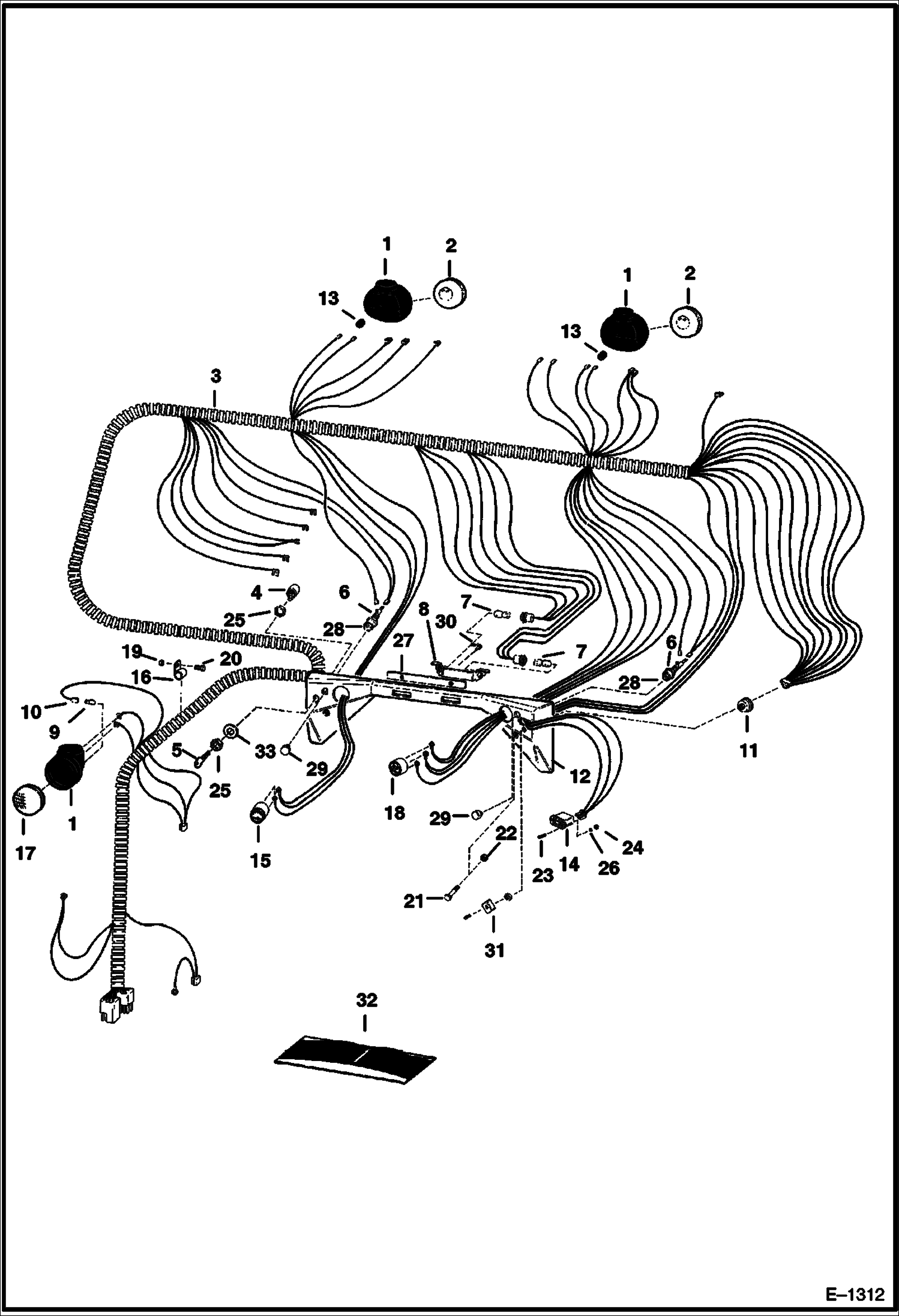

Запчасти Bobcat 500s CAB ELECTRICAL ELECTRICAL SYSTEM

1

6558142

HOUSING

2

6557486

LAMP

3

6561500

HARNESS

4

SWITCH See BTI289 NLA - ignition - Order Ref. 32 - Was 6519592 - A

4

6665606

SWITCH

5

6512809

KEY For NLA/ 6519592 Switch

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241- Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6513469

HOLDER

6

1319451

FUSE 5

7

6513468

BULB

8

6558242

BRACKET

9

960855

1003 BULB light #1003 - Use Only W/#4409 Lamp

9

898731

1156 BULB #1156-Use Only W/#4409X Lamp

10

6557504

SOCKET

11

6512808

SWITCH light

12

6560182

PANEL

13

6557493

GROMMET

14

6664886

HOURMETER Was 6631657 - A

15

6659912

VOLTMETER Was 6560354

16

30H45

CLIP Was 30H000041B - B

17

LAMP NLA - #4409 - Order 6563740 Lamp & 898731B Bulb

17

6563740

LAMP #4409X

18

6634273

GAUGE, FUEL Was 6560353 - A

19

61D5

NUT

20

10C512

BOLT Was 6553808 - A

21

17C572

BOLT

22

83D5

NUT 5

23

85G608

SCREW

24

12D6

NUT 10

25

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

25

6674202

NUT For Ref. 4 (6665606 Switch)

26

12E6

WASHER

27

6560699

LENS

28

6514643

GASKET

29

6514642

CAP

30

6514742

RIVET

31

6599781

KNOB

32

6724282

SWITCH KIT Ref. 4, 5 & 33

33

6709172

PLATE
