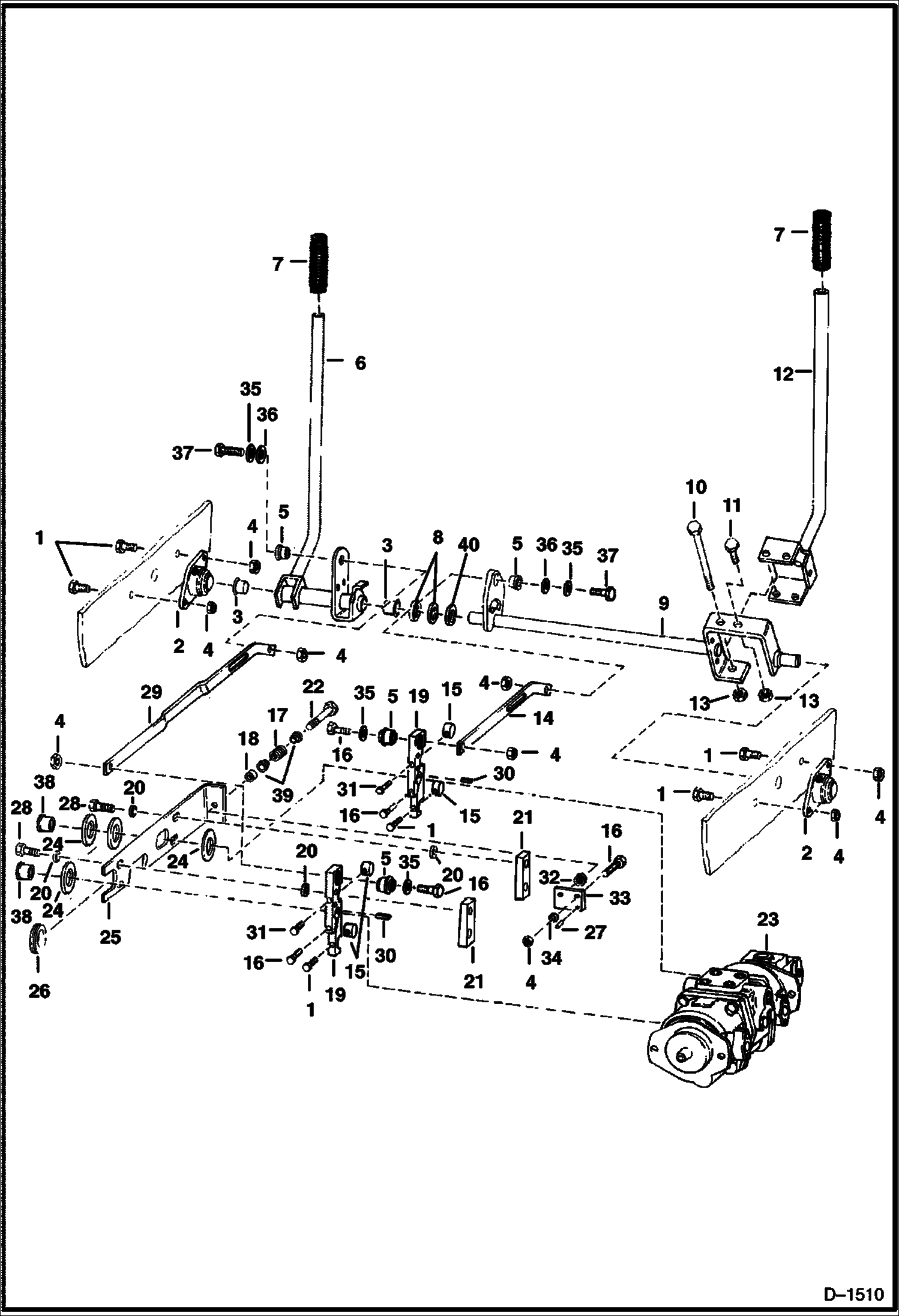

Запчасти Bobcat 500s HAND CONTROLS HYDROSTATIC SYSTEM

1

17C612

BOLT 5

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6558460

HANDLE L.H.

7

6513963

GRIP

8

25E29

WSHR

9

6564705

SHAFT Was 6568461 - A

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE R.H.

13

61D6

NUT 5

14

6558752

BAR

15

6562062

CAM

16

17C628

BOLT

17

SPRING NLA - .44'' I.D. - Order 6572026 Spring, & (2) of Ref. 39 - Was 6505082 - A

17

6572026

SPRING .75'' I.D.

18

6579990

WASHER Was 6558429 - A

19

LEVER NLA - Order 6733231 Lever, 6685060 Bushing & 619021 Washer - Was 6565753 - A

19

6733231

LEVER

20

6557831

WASHER

21

6562281

BAR

22

17C664

BOLT

23

PUMP See Illustration HYDROSTATIC PUMP/ D1289 NLA - WAS 6561056 - A

24

6558680

WASHER

25

6558750

BRACKET

26

6558436

GUIDE

27

14J2522

PIN

28

8C616

SCREW

29

6558751

BAR

30

8J3011

KEY

31

17C624

BOLT 5

32

83D6

NUT 5 Was 57D000006B - B

33

6559985

BLOCK

34

763403

WASHER

35

6563914

WASHER

36

6563965

WASHER

37

17C626

BOLT

38

6565824

PIN

39

6571991

GUIDE Use W/6572026 Spring

40

6705033

WASHER 0.067
