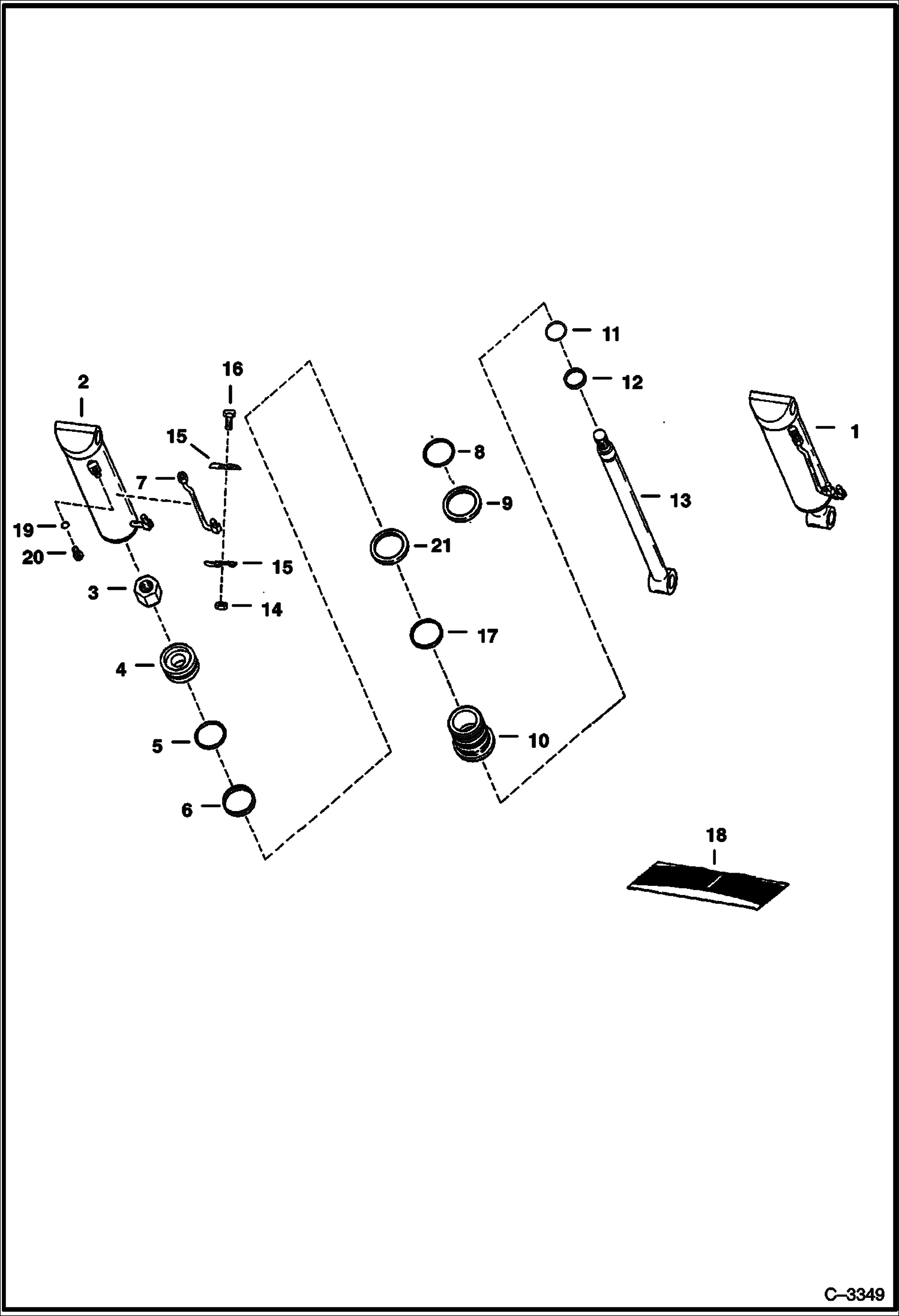

Запчасти Bobcat 500s TILT CYLINDER HYDRAULIC SYSTEM

1

6589331

CYLINDER, TILT tilt - Ref. 2-16

2

CASE NLA - Order Ref. 1 - Was 6589332 - A

3

6810539

NUT Was 6804592 - A

4

6803870

PISTON Was 6553912 - A

5

947088

RING, BACK-UP

6

25K30218

O RING 10

7

6593392

TUBE

8

58K232

O RING 10

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

6538367

HEAD, CYL TILT

11

6538141

SEAL

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6592897

ROD Was 6553913 - B

14

95D6

NUT Was 91D000006B - A

15

6502426

CLAMP

16

17C624

BOLT 5

17

58K234

O RING 10 Was 54K40300 - B

18

6589798

SEAL KIT Ref. 3, 5, 6, 8, 9, 11 & 12

19

79K6

O RING 10 flat boss face

19

95K6

O'RING tapered boss face

20

NLA - flat boss face - W/Ref. 19 - Was 47K000005B - A

20

90KV5

PLUG tapered boss face - W/Ref. 19

21

7008355

SEAL, QUAD
