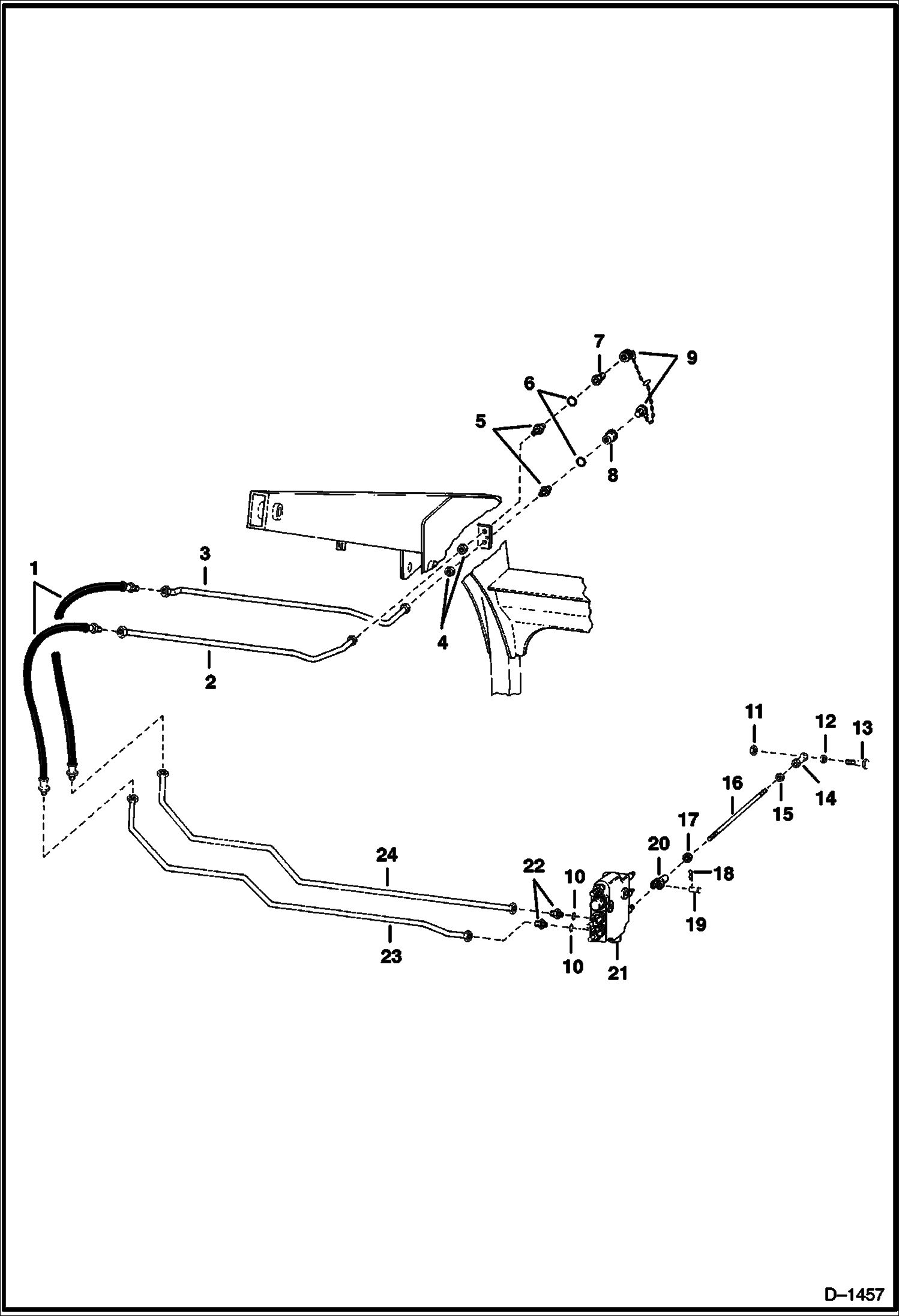

Запчасти Bobcat 500s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6558484

HOSE

2

6558415

TUBE Was 6558730 - A

3

6558414

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6 - Was 6560248 - A

6

79K10

O RING 10 Was 91F000007B - A

7

6513635

QUICK COUPLER Male

8

6598758

COUPLER, POPPET FEMALE straight - Was 6513430 - A

9

6513709

CAP PLUG Rubber

9

6515167

PLUG Steel

9

6515168

CAP Steel

10

79K8

O RING 10 Was 91F000006B - A

11

85D6

NUT, 5

12

6557831

WASHER

13

17C620

BOLT

14

6512955

SWIVEL L.H. threads

15

13D6

NUT

16

6567057

ROD

17

8D6

NUT 5

18

6513495

COTTER PIN

19

6559014

CLEVIS PIN

20

6560526

CLEVIS

21

6562031

VALVE See Illustration HYDRAULIC VALVE/ C2012 HYDRAULIC

22

15K6

ADAPTER W/Ref. 10

23

6557150

TUBE

24

6553458

TUBE
