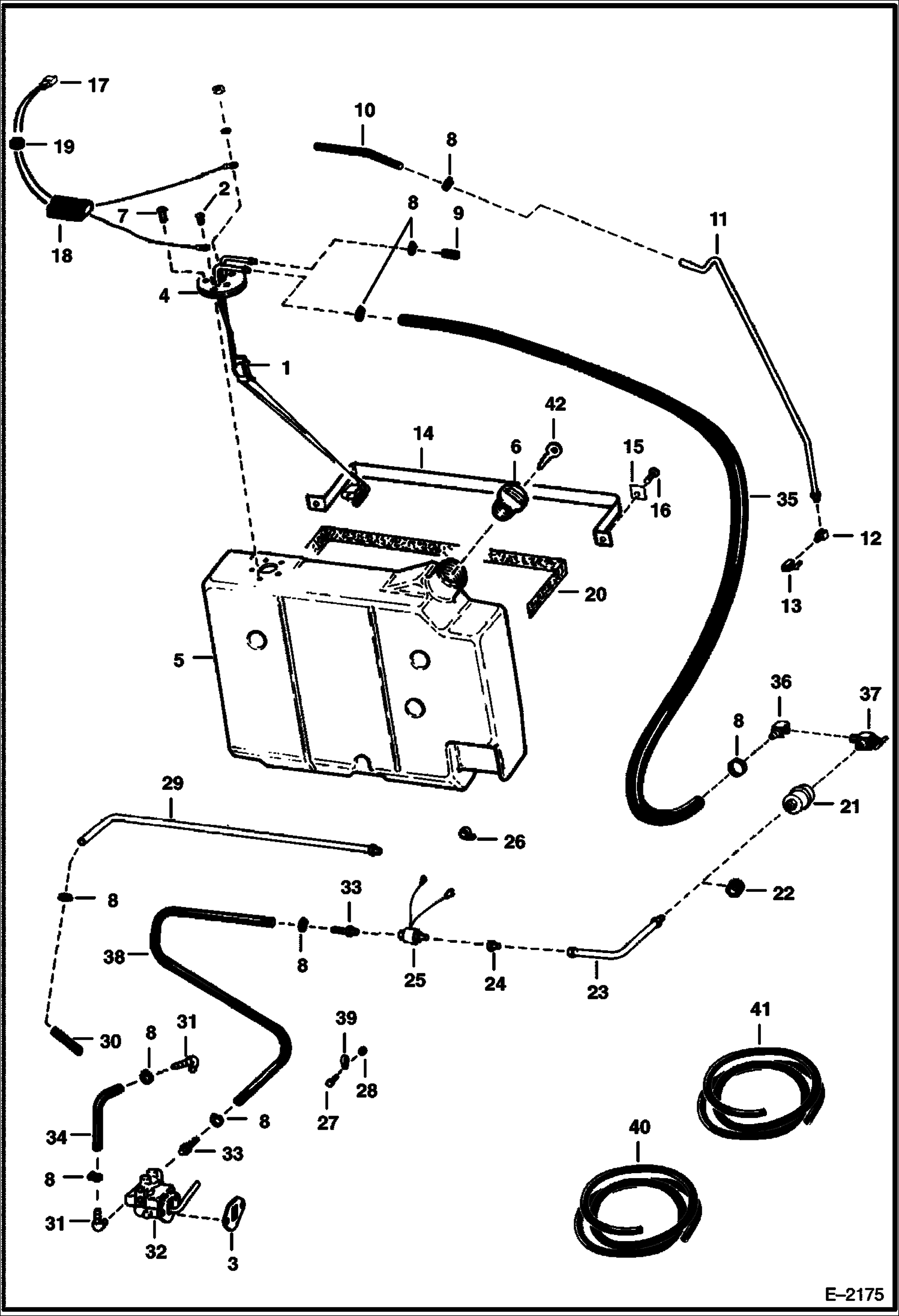

Запчасти Bobcat 500s FUEL SYSTEM MAIN FRAME

1

6563210

SENDER Fuel - includes gasket

2

85G1010

SCREW

3

6512203

GASKET Was 6599163 - A

4

6630972

GASKET

5

TANK See BTI216 NLA

6

6632468

CAP

6

NLA - locking-Code GC020 - W/Ref. 42 - Was 6635877 - A

6

6662770

CAP locking-Code PK510 - W/Ref. 42

7

85G1008

SCREW

8

42HS04

CLAMP, HOSE Was 6515575 - A

9

CAP NLA - Was 6562550 - A

10

HOSE NLA - 7'' (177,8 mm) long - Order Ref. 40

11

6562547

TUBE

12

62F4

ELBOW

13

6562553

VALVE

14

6562559

BAND

15

6559447

WASHER

16

84G3716

SCREW 5

17

6560117

WIRE

18

6562606

SEAL

19

742876

GROMMET

20

6591273

STRIP Was 6563233 - A

21

6512106

ELEMENT

22

6515603

GROMMET

23

6559152

TUBE

24

CONNECTOR NLA - Was 59F000004B - A

25

7024822

SOLENOID, FUEL Was 6559117

26

30H18

CLAMP

27

17C412

BOLT 5

28

85D4

NUT 5

29

TUBE NLA - Order Ref. 33 & 38

30

HOSE NLA - 5'' (127 mm) long - Order Ref. 41

31

6515156

CONNECTOR

32

6598432

FUEL PUMP See Illustration MANIFOLD & CARBURETOR/ B2237

33

6513421

CONNECTOR

34

HOSE NLA - 6'' (152 mm) long - Order Ref. 41

35

HOSE NLA - 35'' (889 mm) long - Order Ref. 40

36

6598753

ELBOW

37

6512138

VALVE

38

HOSE NLA - 23'' (584,2 mm) long - Order Ref. 41

39

30H54

CLIP

40

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - A

41

6577821

HOSE bulk - sold per foot - Was 672221 - A

42

6654374

KEY Code GC020

42

6587458

KEY Code PK510
