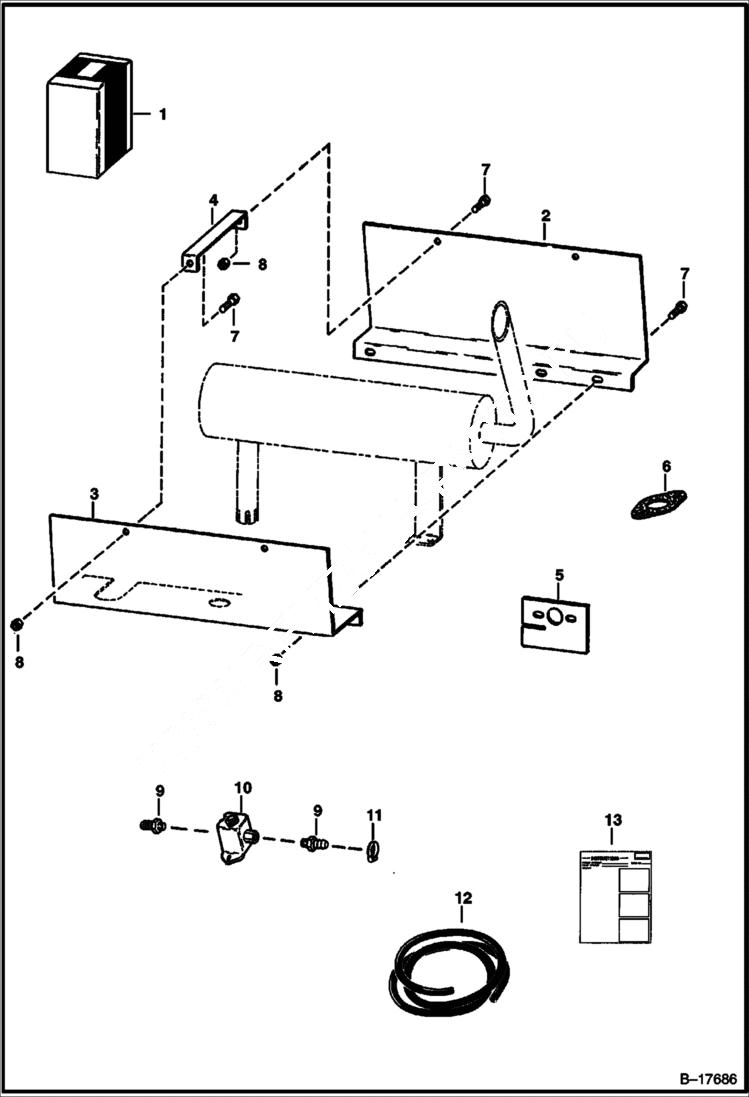

Запчасти Bobcat 500s VAPOR LOCK & HEAT SHIELD KIT ACCESSORIES & OPTIONS

1

6571519

KIT Ref. 2 - 13

2

6571511

SHIELD

3

6571512

SHIELD

4

6571513

STRAP

5

6571514

SHIELD

6

6518866

GASKET carb.

7

17C412

BOLT 5

8

61D4

NUT 5

9

6505813

CONNECTOR

10

6558398

FUEL PUMP Electric

11

42HS04

CLAMP, HOSE Was 6515575 - A

12

6577821

HOSE bulk - sold per foot - Was 672221 - A

13

INSTRUCTIONS NLA - Print Instructions from BASS - Was 65702019 - A
