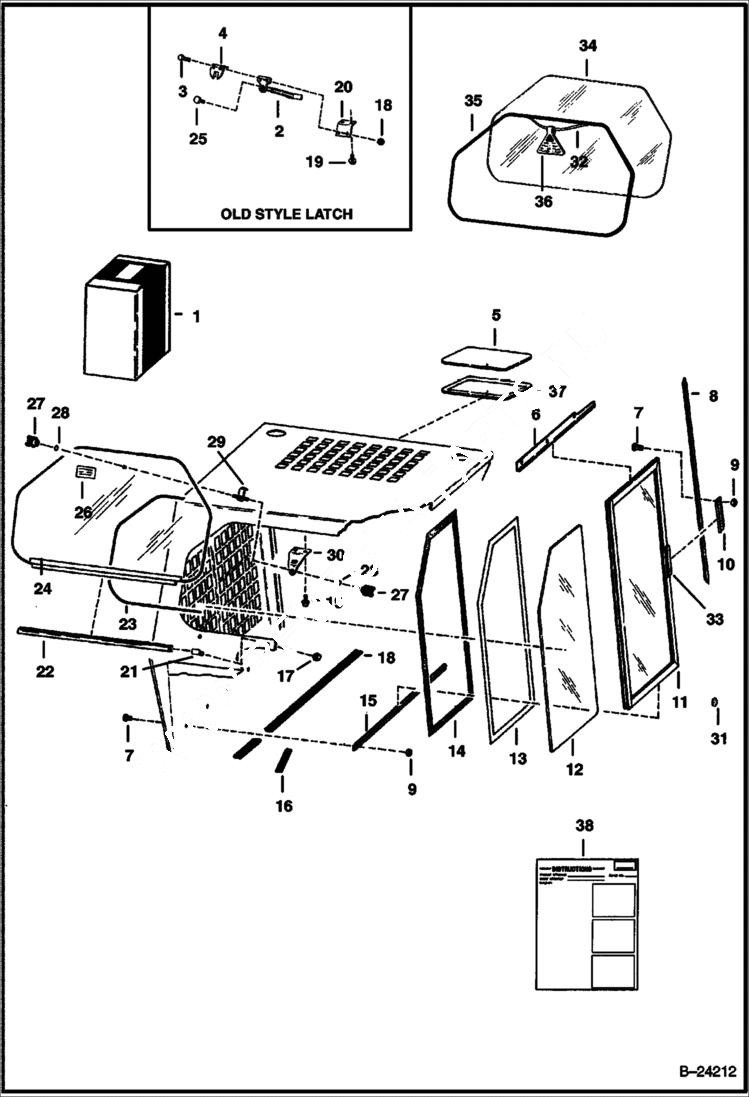

Запчасти Bobcat 500s CAB WINDOWS (S/N 20001 & Above) ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 5 - 16 & 31 - 38

2

LATCH NLA - W/Ref. 25 - Order Ref. 27-30 - Was 6630929 - A

3

85G1014

SCREW

4

CLIP NLA - Order Ref. 27-30 - Was 6630928 - A

5

6701986

WINDOW top - not Use W/Ref. 37 - Was 6563391 - A

5

6705735

WINDOW top - Use W/Ref. 37

6

6703159

TRACK RH - Was 6630921 - A

6

6703160

TRACK LH - Was 6630920 - A

7

35C410

BOLT 5 Was 25G000410B - A

8

6630918

TRACK L.H.

8

6630919

TRACK R.H.

9

83D4

NUT 10

10

6630924

BRACKET

11

6658143

WINDOW LH - Was 6630922 - A

11

6658142

WINDOW RH - Was 6630923 - A

12

6702731

WINDOW, CAB Was 6567750 - A

13

6631548

LOOP scotchmate

14

6631549

HOOK scotchmate

15

6661689

TRACK LH - Was 6630916 - A

15

6661690

TRACK RH - Was 6630917 - A

16

6513152

SEAL bulk - sold per foot

17

59D4

NUT 5

18

50D10

LOCKNUT

19

84G3112

BOLT 5

20

6568540

MOUNT

21

6576513

BOLT Was 6630927 - A

22

6630926

HINGE

23

6555351

SEAL bulk - sold per foot

24

6630925

WINDOW

25

KNOB NLA - Was 6631665 - A

26

6631625

DECAL For Old Style Latch

27

6571529

KNOB

28

58K109

O RING 10

29

6571532

BRACKET

30

6571533

MOUNT

31

6632265

PLUG button

32

6554149

CORD, BULK/FT bulk - sold per foot - Also Order Ref. 36 (6731478 exit tag)

33

6659949

LATCH

34

6704891

WINDOW Was 6703021 - A

35

6658352

MOULDING bulk - sold per foot

36

6731478

EXIT TAG Was 6559515 - A

37

6664351

SEAL Use W/cab headliner & Ref. 5 (6705735 window)

37

6665012

SEAL Use W/O cab headliner & Ref. 5 (6705735 window)

38

6566955

INSTRUCTIONS rear Window

38

6566957

INSTRUCTIONS side Windows
