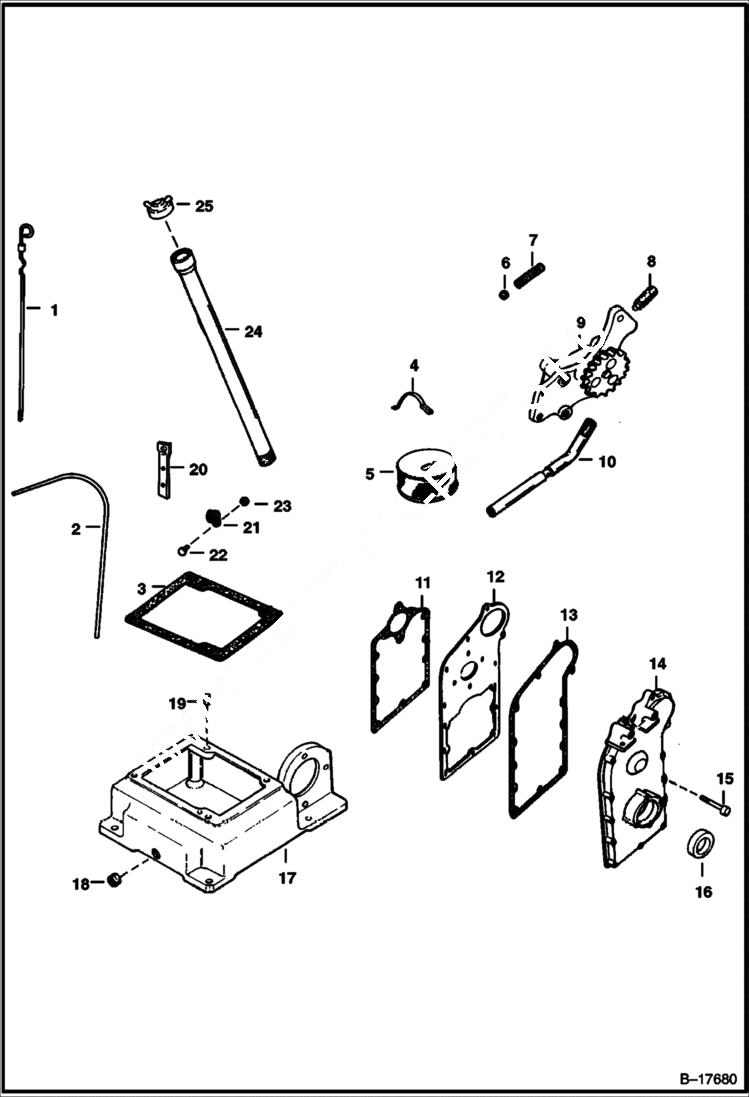

Запчасти Bobcat 500s OIL PAN & GEAR COVER POWER UNIT

1

6564624

DIPSTICK

2

6565846

TUBE dipstick

3

6512213

GASKET oil pan

4

6517166

CLAMP oil tube

5

SCREEN NLA - Was 6512217 - A

6

10J10

BALL

7

6512218

SPRING relief

8

SCREW NLA - adjusting - Was 852454B - A

9

6513948

OIL PUMP

10

TUBE NLA - oil inlet - Was 6512216 - A

11

GASKET NLA - Cover - Ref. 11 - Was 6512221 - A

12

6512220

PLATE

13

6512219

GASKET gear cover

14

COVER NLA - gear - Was 6512321 - A

15

17C528

BOLT

16

6632344

SEAL front oil

17

6599735

OIL PAN

18

16F12

PLUG pipe

19

DOWEL PIN NLA - Was 6512265 - A

20

6564622

BRACKET

21

30H22

CLIP

22

17C510

BOLT

23

61D5

NUT

24

6599731

TUBE oil fill

25

6599728

CAP oil fill
