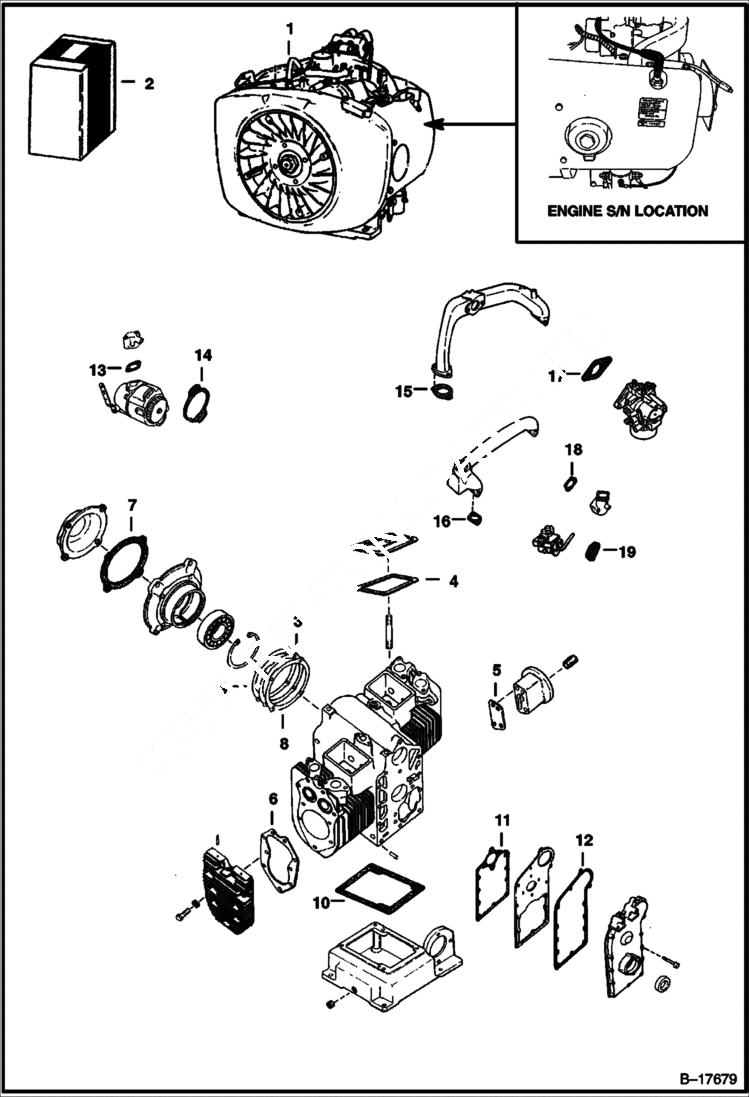

Запчасти Bobcat 500s ENGINE POWER UNIT

1

ENGINE NLA - With starter, flywheel, manifolds, fuel pump & carburetor - Was 6564181 - A

1

6564181REM

ENGINE complete

1

SHORT BLOCK NLA - W/Crankshaft5, camshaft, samshaft gear pistons, sonnecting rods, oil pump, valves, main bearings & gasket kit - Was 6513428 - A

2

6667812

KIT gasket - Overhaul - W/Ref. 3-18 - Was 6512224 - A

3

GASKET See Illustration CYLINDER BLOCK/ D1291 NLA - Ref. 5 - Was 6512181 - A

4

6517222

GASKET See Illustration CYLINDER BLOCK/ D1291 Ref. 7

5

GASKET See Illustration CYLINDER BLOCK/ D1291 NLA - Was 6512223 - A

6

6512189

GASKET See Illustration CYLINDER BLOCK/ D1291 Ref. 14

7

6512789

GASKET See Illustration CYLINDER BLOCK/ D1291 Ref. 19

8

6512878

GASKET See Illustration CYLINDER BLOCK/ D1291 Ref. 21

9

GASKET See Illustration CYLINDER BLOCK/ D1291 NLA - Ref. 22 - Was 6512879 - A

10

6512213

GASKET See Illustration OIL PAN & GEAR COVER/ B17680 Ref. 3

11

GASKET See Illustration OIL PAN & GEAR COVER/ B17680 NLA - Cover - Ref. 11 - Was 6512221 - A

12

6512219

GASKET See Illustration OIL PAN & GEAR COVER/ B17680 Ref. 13

13

6512208

GASKET See Illustration GOVERNOR/ C2016 Ref. 7

14

6512204

GASKET See Illustration GOVERNOR/ C2016 Ref. 10

15

6599732

GASKET See Illustration MANIFOLDS & CARBURETOR/ C2764 Ref. 2

16

6599727

GASKET See Illustration MANIFOLDS & CARBURETOR/ C2764 Ref. 3

17

6518866

GASKET See Illustration MANIFOLDS & CARBURETOR/ C2764 Ref. 8

18

6512163

GASKET See Illustration MANIFOLDS & CARBURETOR/ C2764 Ref. 10

19

6512203

GASKET See Illustration MANIFOLDS & CARBURETOR/ C2764 Ref. 15
