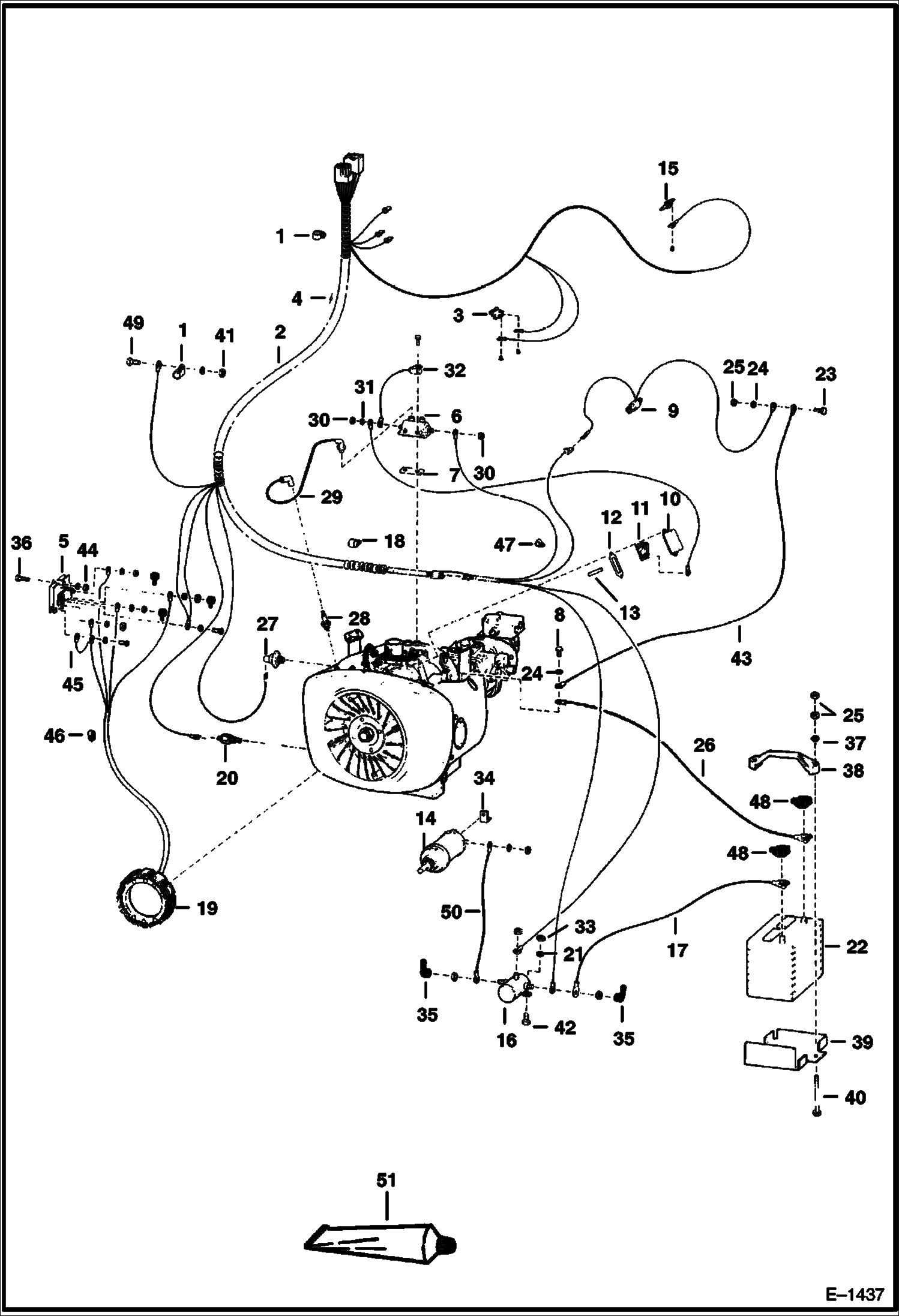

Запчасти Bobcat 500s ENGINE ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

30H47

CLIP

2

6564841

HARNESS engine

3

6671062

SWITCH hydraulic pressure - Was 6664577 - A

4

6564873

RESISTOR

5

6516693

REGULATOR See Illustration ALTERNATOR/ B24211 See BTI362 regulator

6

6512212

COIL

7

6517345

PLATE coil mounting

8

BOLT NLA - Was 31C000520B - A

9

7024822

SOLENOID, FUEL Was 6559117

10

6518879

COVER breaker

11

6518868

BREAKER points

12

6518867

GASKET

13

6512240

PUSH ROD

14

6512287

STARTER See Illustration STARTER/ C2039

15

6632633

SWITCH hyd temp - Was 6564560 - A

16

6631939

SOLENOID

17

6557450

CABLE battery

18

30H54

CLIP

19

6516694

STATOR ASSY. See Illustration ALTERNATOR/ B24211

20

SWITCH See BTI259 NLA - eng. temp. - Was 6599492 - A

20

6658818

SENDER See Illustration CAB ELECTRICAL SYSTEM/ E1629 See BTI259 eng. temp. - threaded connector - Use W/6669663 gauge

21

25E13

WASHER 5

22

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

22

6630154

CAP gang - Danger

22

6630155

CAP gang - Poison

22

6514898

CAP tilt

23

17C512

BOLT 5

24

6E5

WASHER

25

61D5

NUT

26

6553094

CABLE battery - Was 6562905 - B

27

6631010

SWITCH, PRESS OIL ENG engine oil pressure

28

6660301

SPARK PLUG resistor - Was 6512814 - A

29

6513589

WIRE spark plug

30

14D10

NUT

31

12E10

WASHER

32

6518873

CONDENSER

33

83D4

NUT 10

34

6561936

BRACKET

35

6560172

COVER terminal

36

BOLT NLA - Was 45G001024B - A

37

25E15

WASHER

38

7024123

CLAMP Was 6563462 - A

39

6558826

MOUNT

40

6569623

BOLT

41

61D6

NUT 5

42

17C412

BOLT 5

43

6563025

CABLE

44

12D10

NUT

45

6564733

WIRE

46

30H19

CLIP

47

30H7

CLAMP

48

2356058

BOOT

49

17C612

BOLT 5

50

WIRE NSS - Purchase Locally

51

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz
