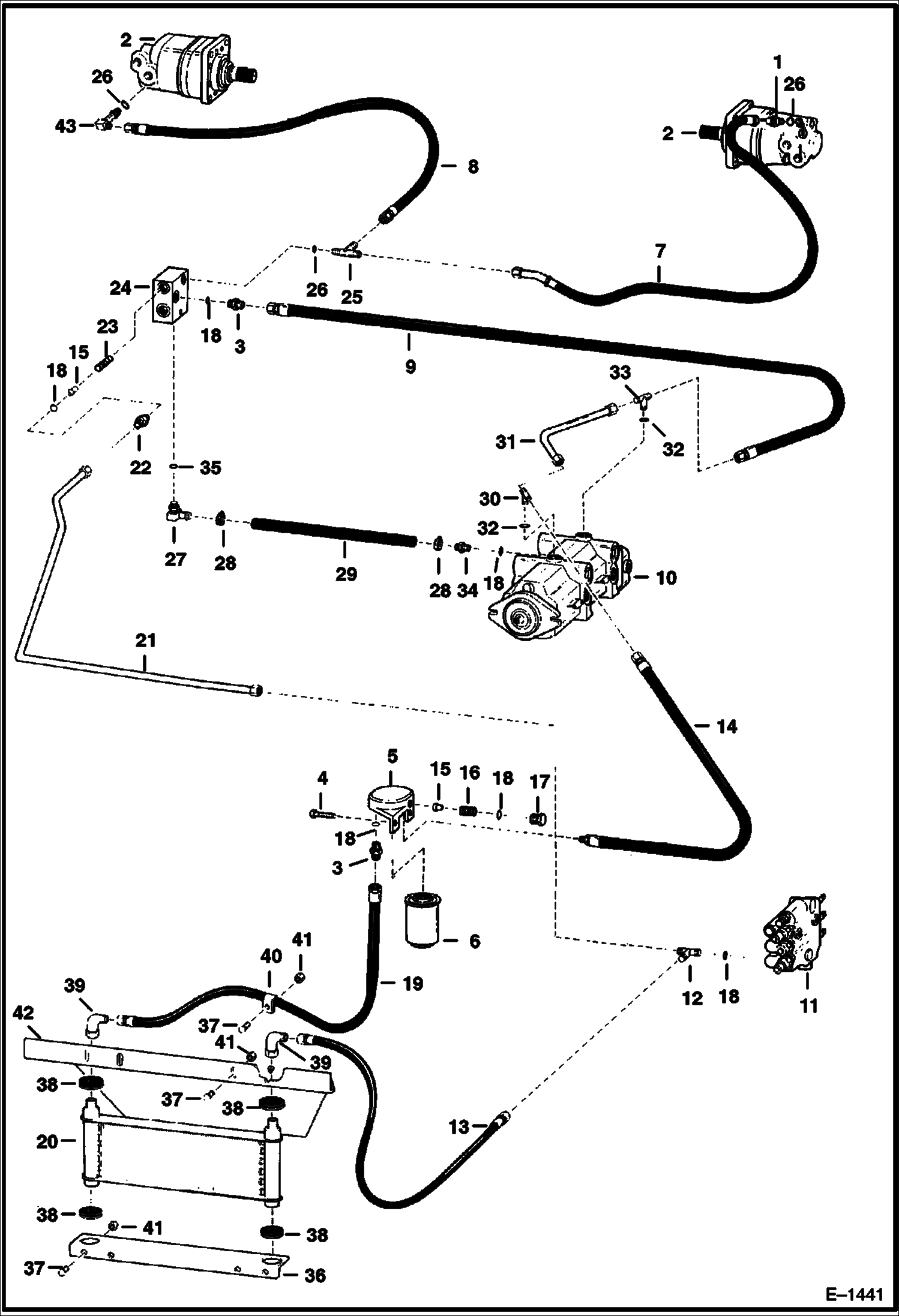

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

15K5

FITTING W/Ref. 26

2

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678

3

15K7

FITTING W/Ref. 18

4

84G3712

BOLT 5

5

6564877

HEAD filter

5

HEAD NLA - filter - Was 6567863 - A

6

6599543

FILTER filter - Was 6599543 - A

6

6630494

ELEMENT filter

7

6577891

HOSE Was 6564717 - A

8

6577892

HOSE Was 6564148 - A

9

6564150

HOSE Use W/O Backup Alarm

9

6702181

HOSE Use W/Backup Alarm

10

PUMP See Illustration HYDROSTATIC PUMP/ D1607

11

VALVE See Illustration HYDRAULIC VALVE/ C2012

12

21K7

TEE W/Ref. 18

13

6561044

HOSE

14

6565960

HOSE

15

6515078

POPPET

16

6553897

SPRING

17

6561811

PLUG

18

79K10

O RING 10

19

6561045

HOSE

19

6568989

HOSE

20

OIL COOLER NLA - Was 6557282 - A

21

6564786

TUBE

21

6564514

TUBE

22

6559518

ADAPTER W/Ref. 18

23

6564884

SPRING

24

6565550

PORT BLOCK port

25

21K5

TEE W/Ref. 26

26

79K6

O RING 10

27

6567886

ELBOW W/Ref. 35

28

42H12

CLAMP 10

29

6567889

HOSE

30

6563653

TEE W/Ref. 32

31

6563645

TUBE

32

79K8

O RING 10

33

19K6

FITTING W/Ref. 32

34

6567885

ADAPTER W/Ref. 18

35

79K12

O RING 10

36

6553432

BRACKET

37

37C616

BOLT Was 6514537 - A

38

6511983

GROMMET

39

11K7

ADAPTER W/Ref. 18

40

31H46

CLAMP

41

85D6

NUT, 5

42

6553431

BRACKET

43

6558510

ELBOW W/Ref. 26
