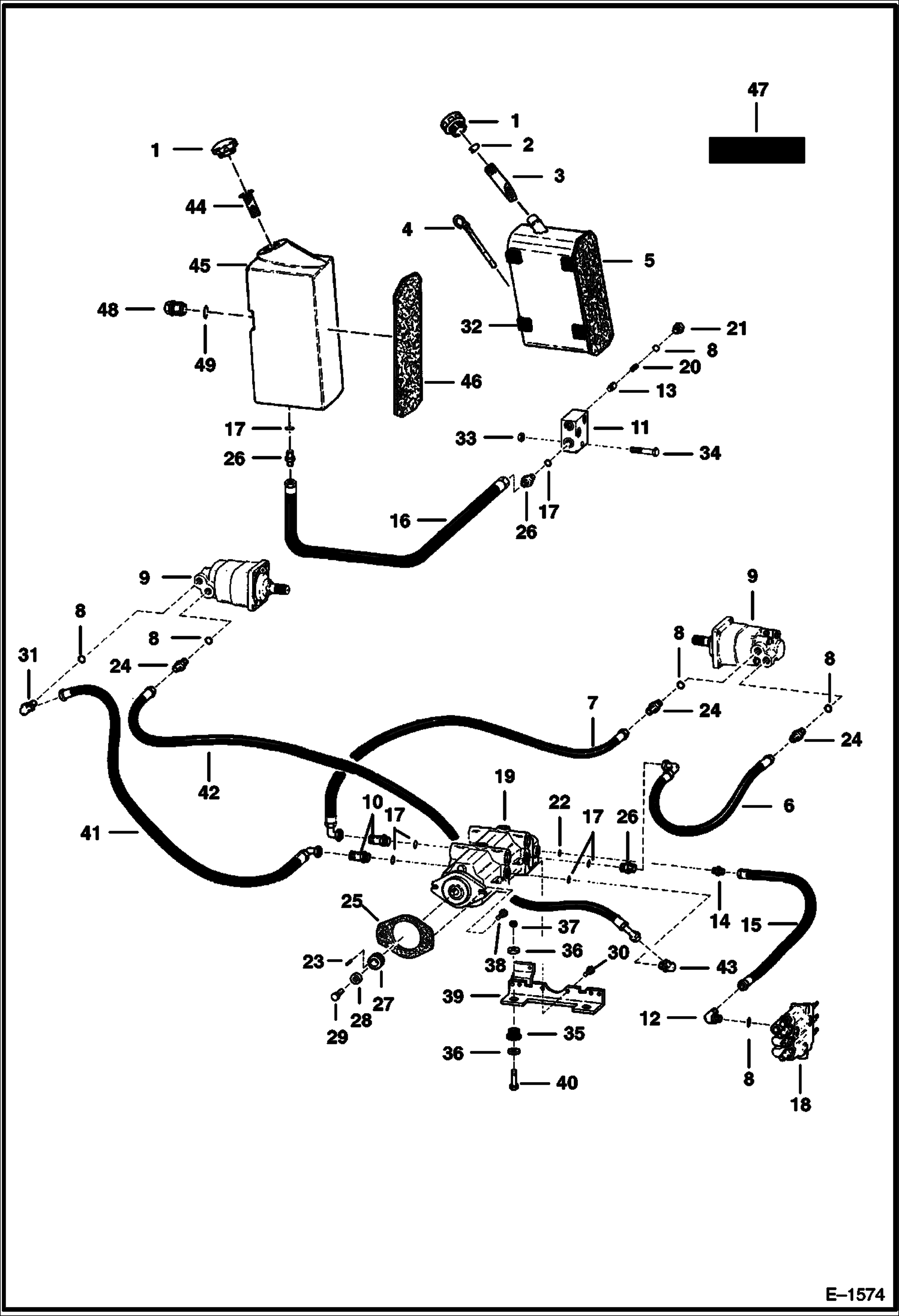

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY (S/N 13001 & Above) HYDROSTATIC SYSTEM

1

CAP NLA - Pack of 12 - Was 1779011B - A

1

6727475

CAP, OIL HYD Pack of 1 - Was 6577785 - A

2

713133

SNAP RING snap ring

3

6558604

SCREEN

4

6563979

DIPSTICK

5

6563981

TANK steel

5

TANK NLA - steel - Order 6563981 tank , 713133 snap ring, 6558604 screen, & 6563979 dip stick - Was 6568197 - A

6

6564367

HOSE

7

6565448

HOSE

8

79K10

O RING 10

9

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678 hydro.

10

16K8

CONNECTOR W/Ref. 17

11

6565550

PORT BLOCK port

12

6532179

ELBOW W/Ref. 8 - Was 17K000007B - B

13

6565620

POPPET

14

15K6

ADAPTER W/Ref. 22

15

1577507

HOSE

16

6559007

HOSE

17

79K12

O RING 10

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2402 hyd.

19

PUMP See Illustration HYDROSTATIC PUMP/ D1607 hydro.

20

6562691

SPRING

21

6561811

PLUG

22

79K8

O RING 10 W/Ref. 8

23

6598880

KEY

24

730963

CONNECTR W/Ref. 8

25

6563726

GASKET

26

15K8

FITTING W/Ref. 17

27

6553539

ADAPTER splined

28

6553541

WASHER

29

96G616

SCREW

30

17C532

BOLT 5

31

18K7

FITTING W/Ref. 8

32

STRIP NLA - 2'' (50,8 mm) long - Order Ref. 47 (6559448 Seal) - Was 6562555 - A

33

85D6

NUT, 5

34

17C644

BOLT

35

6560633

DAMPENER

36

6564692

WASHER

37

85D8

NUT, 5

38

35C620

BOLT 5

39

6706536

MOUNT Was 6576754 - A

40

35C840

BOLT

41

6565449

HOSE

42

6565725

HOSE

43

17K8

FITTING W/Ref. 17

44

7120881

SCREEN, FILLER Was 6569219 - A

45

6569220

TANK nylon

46

6565012

INSULATION

47

6559448

SEAL rubber - bulk - Sold Per Foot

48

SIGHT GUAGE NLA - plastic - Order 6665915 Sight Gauge & 79K000012B O-ring - Was 6631610 - A

48

6665915

GAUGE steel - Also Order 79K000012B O-ring - Was 6656338 - A

49

25K40030

O RING 10 for plastic sight gauge

49

79K12

O RING 10 for steel sight gauge
