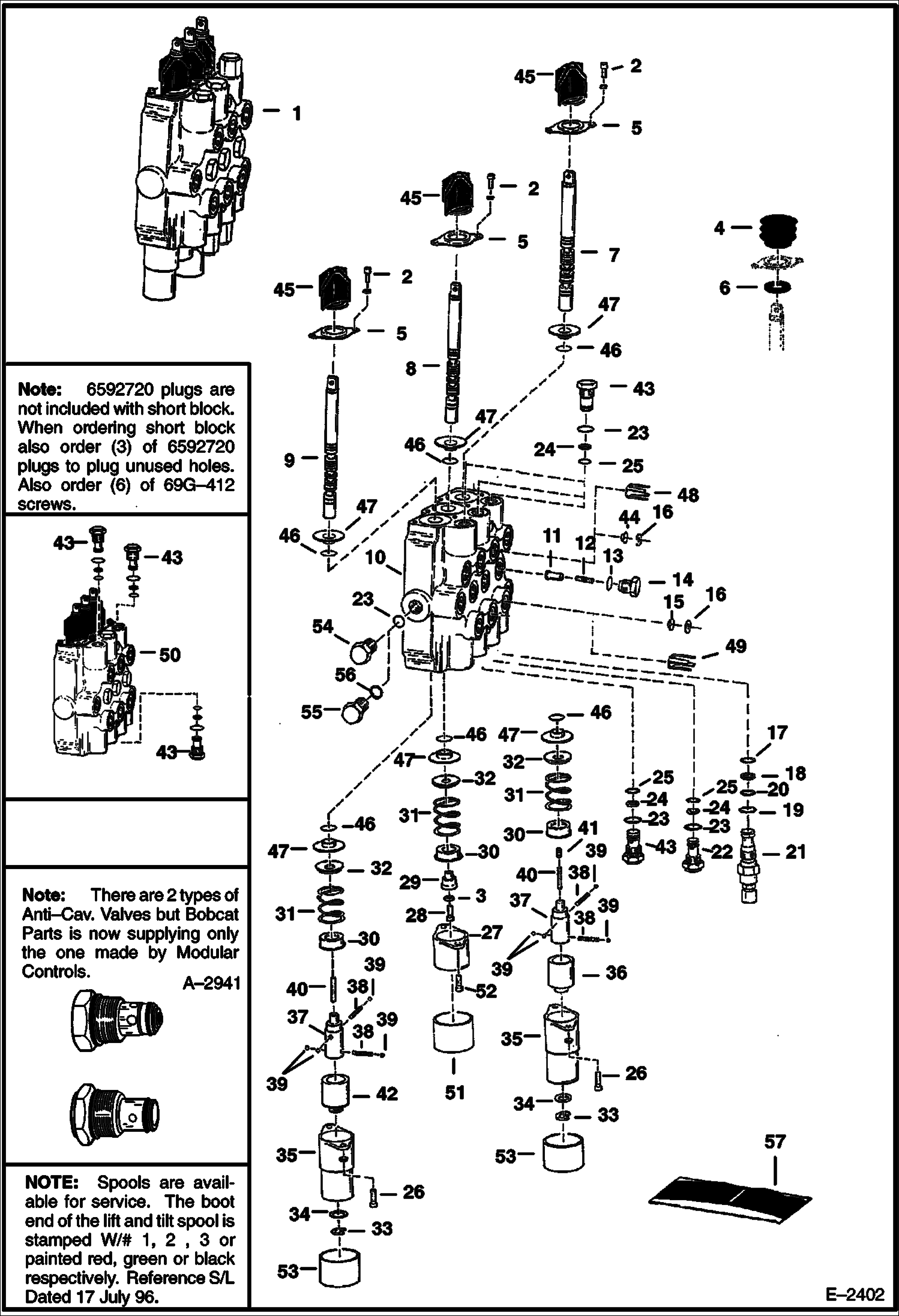

Запчасти Bobcat 500s HYDRAULIC CONTROL VALVE (S/N 13001 & Above) (Bobcat) HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2403 NLA - Order 6802997 Valve - Ref. 2-49 - Service valve does not include reliefs and fittings - Valve shown uses stamped boot retainers - Ref. 5, wh

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BOOT NLA - Order Ref. 45 - Was 6592122 - A

5

6592123

RETAINER Stamped

6

FILTER NLA - Order Ref. 45 - Was 6592124 - A

7

6666582

SPOOL lift - #1 or red - SEE NOTE

7

6666583

SPOOL lift - #2 or green - SEE NOTE

7

6666584

SPOOL lift - #3 or black - SEE NOTE

8

6666585

SPOOL tilt - #1 or red - SEE NOTE

8

6666586

SPOOL tilt - #2 or green - SEE NOTE

8

6666587

SPOOL tilt - #3 or black - SEE NOTE

9

6592119

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

ORIFICE NLA - .123/.130 - Was 6592110 - A

16

6593680

RETAINER

17

O-RING NSS

18

WASHER NSS - back-up

19

O-RING NSS

20

WASHER NSS - back-up

21

VALVE NLA - main relief - Was 6632172 - A

21

6676195

VALVE main relief

22

6667549

VALVE anti-cavity check - W/Ref. 23-25 - SEE NOTE - Was 6661345 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

25

6677106

O-RING Back-up Washer Not Required

26

6588163

SCREW 7/8'' long - Was 69G000412B - B

26

29G416

BOLT 1'' long - Was 6580982 - A

27

BONNET NLA - W/.25'' flange - Order 6587633 Bonnet, 6662848 Cap & (2) of 6588164 Screw - Was 6592097 - A

27

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - A

28

6588166

SCREW Was 74G000416B - B

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING Was 6592106 - A

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

BONNET NLA - W/.25'' flange - Order 6589226 Bonnet, 6660644 Cap & (2) of 6588982 Screw - Was 6592094 - A

35

6589226

COVER, END 0.63'' flange

36

6592096

SLEEVE lift

37

6587575

ADAPTER Was 6592099 - A

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW Was 6632374 - A

41

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B O-Ring - Was 6592752 - A

41

6596807

PLUG plastic - 0.46'' long

41

54K20002

O'RING 10

42

6593349

SLEEVE auxiliary

43

6592720

PLUG W/Ref. 23-25

44

RESTRICTOR .107/.114 NLA - .107/.114 - Was 6592762 - A

45

6587763

BOOT Remove Ref. 6 when installing - Was 6583727 - A

46

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

46

6646372

SEAL See BTI374 quad ring seal

47

6592103

BUSHING See Service Letter 5 Jan. 87

47

6538466

BUSHING W/Part Number stamped on face

48

6587304

ORIFICE .125

49

6587315

ORIFICE .110

50

SHORT BLOCK NLA - Ref. 2-10 & 40 - Order Ref. 1 - SEE NOTE - Was 6537937 - A

51

6662848

CAP Use W/6587633 Bonnet

52

6588164

SCREW

53

6660644

CAP

54

47K7

PLUG .875-14 - W/Ref. 23

55

47K9

PLUG 1.1875-12 - W/Ref. 56

56

79K14

O RING 10

57

6816250

KIT, SEAL See BTI374 - Ref. 2, 26, 41, 45 & 46 - one spool - Was 6803605 - A

57

6661328

SEAL KIT Ref. 17 - 20 - Was 6592474 - A

57

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

57

6816251

KIT, SEAL See BTI374 - Ref. 13, 17-20, 23-25, 41, 45 & 46 - Was 6803606 - A
