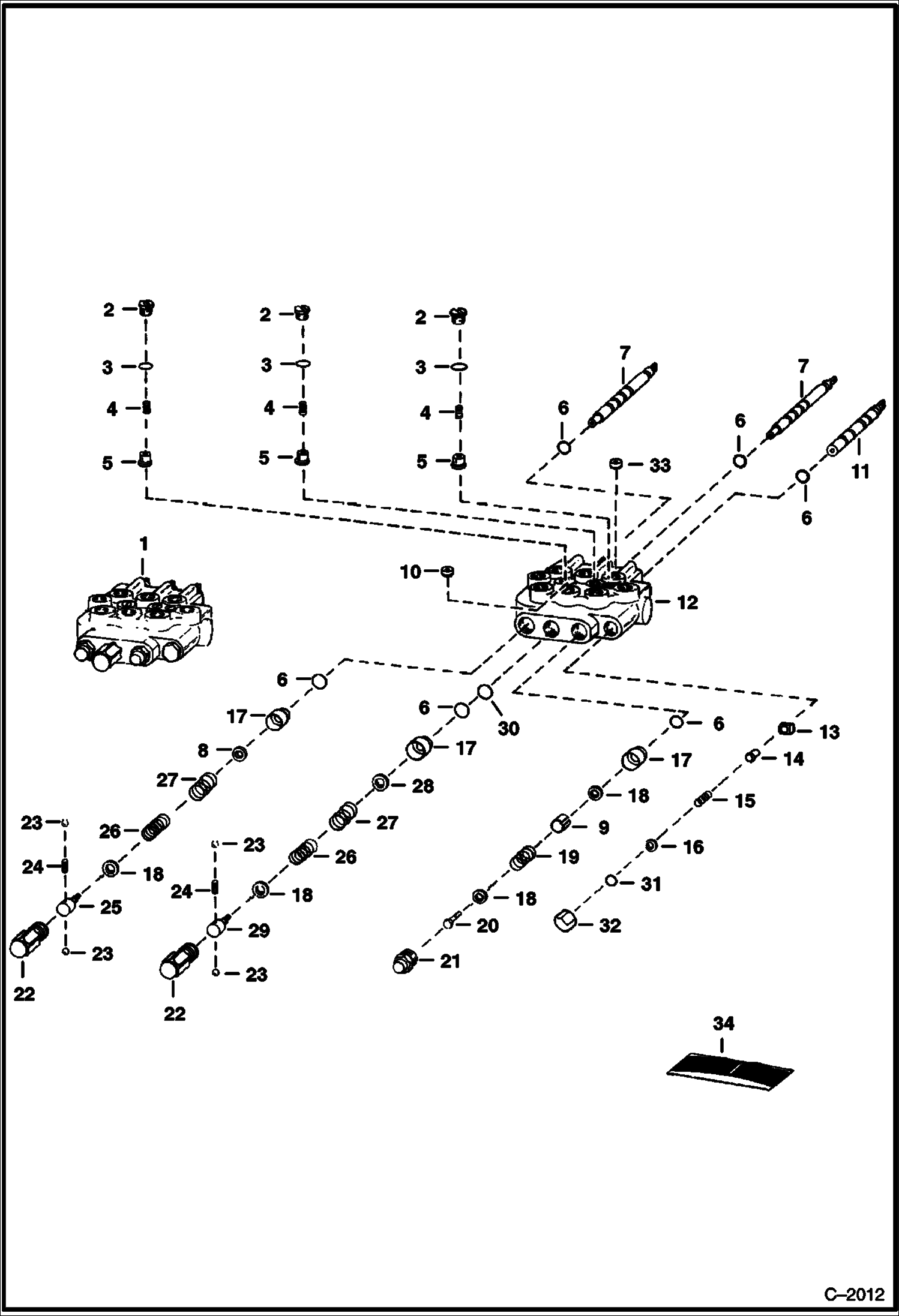

Запчасти Bobcat 500s HYDRAULIC VALVE (S/N 12999 & Below) (Cessna) HYDRAULIC SYSTEM

1

6562031

VALVE hydraulic

2

6632473

PLUG W/Ref. 3 - Was 947754B - A

3

58K112

O RING 10

4

1550482

SPRING

5

4149071

PLUNGER L

6

O-RING NSS

7

SPOOL NLA

8

6510804

WASHER

9

SPACER NLA

10

6512249

ORIFICE

11

SPOOL NLA

12

HOUSING NLA

13

6598214

SEAT

14

6598212

POPPET

15

6598210

SPRING

16

6598211

SHIM

17

6510809

BUSHING

18

5290338

WSH

19

6510858

SPRING

20

6511039

BOLT spool

21

6510811

CAP

22

6510810

CAP

23

949093

BALL

24

6510806

SPRING

25

6514705

SCREW spool detent

26

6510807

SPRING

27

6512250

SPRING

28

6511034

WASHER

29

6511038

SCREW spool detent

30

O-RING NSS

31

O-RING NSS

32

6598213

CAP

33

6599591

ORIFICE .1015

34

6598220

SEAL KIT Ref. 3, 6, 30 & 31
