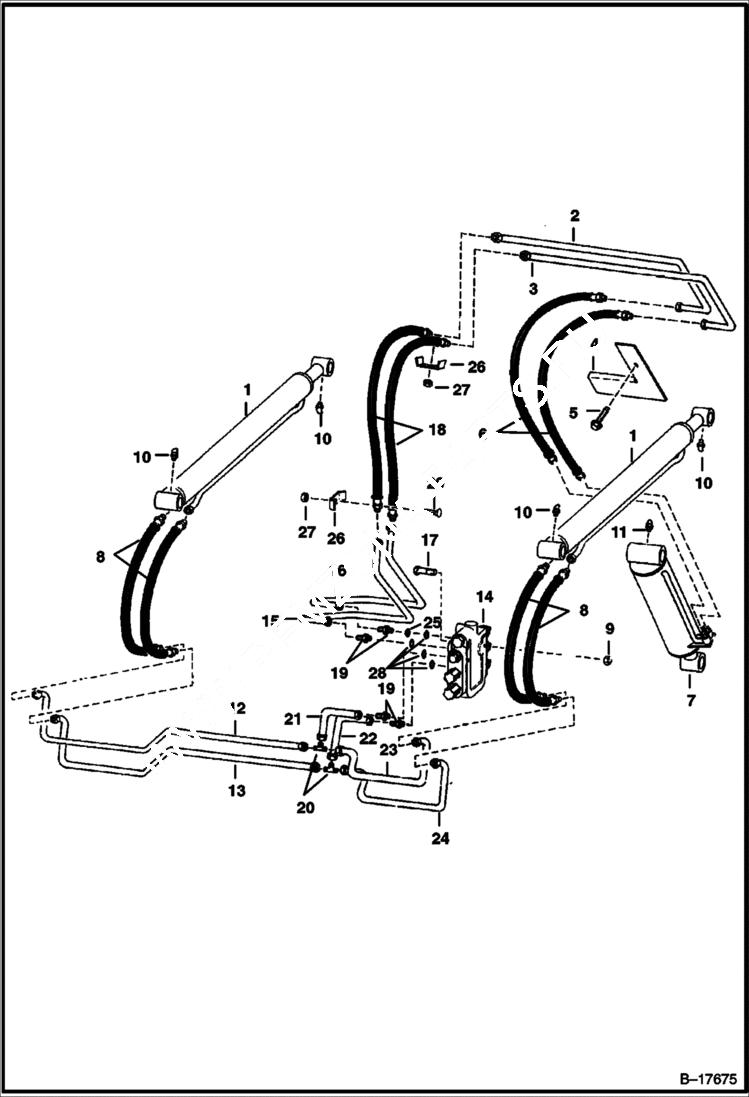

Запчасти Bobcat 500s HYDRAULIC CIRCUITRY (S/N 12999 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B6942 See Illustration LIFT CYLINDER/ B2206 lift

2

6553159

TUBE

3

6553160

TUBE

4

6553422

COVER

5

84G3720

BOLT

6

6553204

HOSE

7

CYLINDER See Illustration TILT CYLINDER/ C2868 See Illustration TILT CYLINDER/ C2001 tilt

8

6553244

HOSE

9

85D5

NUT 5

10

11H15

GREASE FITTING

11

10H25

FITTING, GREASE 5

12

6560096

TUBE

13

6560097

TUBE

14

6562031

VALVE See Illustration HYDRAULIC VALVE/ C2012 hydraulic

15

6564237

TUBE

16

6553251

TUBE

17

BOLT NLA - Was 17C000538B - A

18

6553454

HOSE

19

15K6

ADAPTER W/Ref. 28

20

10K6

FITTING

21

6560093

TUBE

22

TUBE NLA - Was 6563727 - A

23

6560095

TUBE

24

6560094

TUBE

25

6599591

ORIFICE 0.1015

26

6502203

CLAMP

27

85D6

NUT, 5

28

79K8

O RING 10

29

6514571

BOLT
