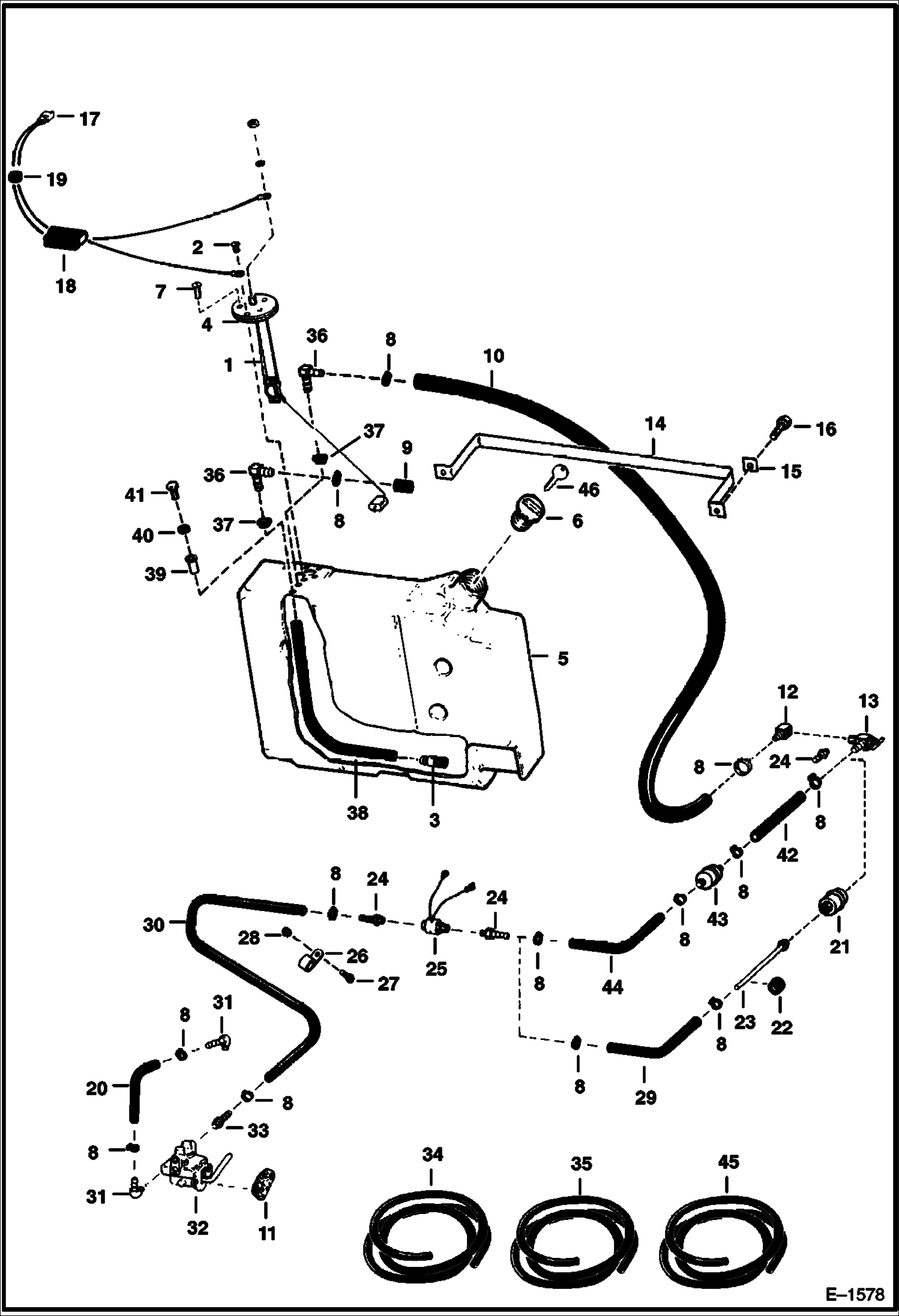

Запчасти Bobcat 500s FUEL SYSTEM (S/N 13007 & Above) MAIN FRAME

1

6562552

SENDER

1

6568175

SENDER, FUEL

2

85G1010

SCREW

3

6598911

SCREEN

4

6630972

GASKET

5

6567909

TANK

6

6632468

CAP Was 6555717 - A

6

CAP NLA - W/Ref. 35 - Code GC020 - Was 6654373 - A

6

6662770

CAP locking - W/Ref. 35 - Code PK510 - Was 6635877 - A

7

85G1008

SCREW

8

42HS04

CLAMP, HOSE Was 6515575 - A

9

CAP NLA - Was 6562550 - A

10

HOSE NLA - Order Ref. 35 - 35'' (889 mm) long

11

6512203

GASKET fuel pump

12

6598753

ELBOW

13

6632593

VALVE shut off - barbed - Was 6512138 - A

14

6562559

BAND

15

6559447

WASHER square

16

84G3720

BOLT

17

6560117

WIRE

18

6562606

SEAL

19

742876

GROMMET

20

HOSE NLA - Order Ref. 34 - 6'' (152 mm) long

21

6512106

ELEMENT

22

6515603

GROMMET

23

6565845

TUBE

24

6505813

CONNECTOR Use W/Barbless Fuel Valve

25

7024822

SOLENOID, FUEL Was 6559117

26

30H33

CLIP

27

17C412

BOLT 5

28

85D4

NUT 5

29

HOSE NLA - Order Ref. 34 - 3'' (76 mm) long

30

HOSE NLA - Order Ref. 34 - 34'' (863,6 mm) long

31

6515156

CONNECTOR

32

6598432

FUEL PUMP

33

6513421

CONNECTOR

34

6577821

HOSE bulk - sold per foot - Was 672221 - A

35

6577822

HOSE bulk - Was 6562515 - A

36

6598908

ELBOW Was 6681462 - A

37

6553411

BUSHING 0.38'' ID

38

HOSE NLA - Order Ref. 45 - 21'' (533,4 mm) long - Was 6564193 - A

39

1308362

WELL NUT

40

25E13

WASHER 5

41

17C414

BOLT

42

HOSE NLA - Order Ref. 34 - 9'' (228,6 mm) long

43

6511393

FILTER

44

HOSE NLA - Order Ref. 34 - 5'' (127 mm) long

45

6569752

HOSE BULK/FT bulk - sold per foot

46

6654374

KEY Code GC020 - Was 6654373 - D

46

6587458

KEY Code PK510
