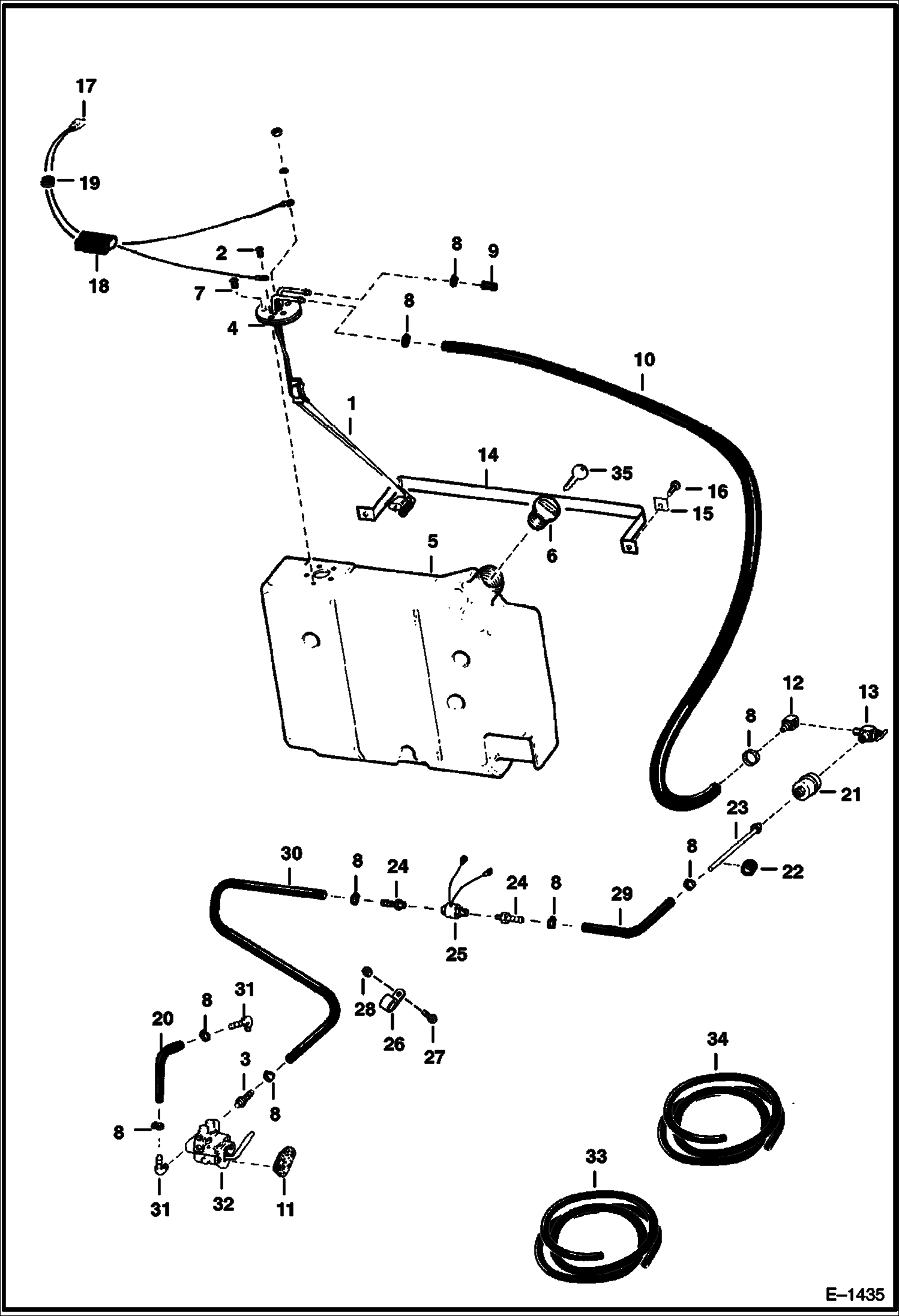

Запчасти Bobcat 500s FUEL SYSTEM (S/N 13006 & Below) MAIN FRAME

1

6563210

SENDER Fuel - includes gasket

2

85G1010

SCREW

3

6513421

CONNECTOR

4

6630972

GASKET

5

TANK See BTI216 NLA

6

6632468

CAP Was 6555717 - A

6

CAP NLA - W/Ref. 35 - Code GC020 - Was 6654373 - A

6

6662770

CAP locking - W/Ref. 35 - Code PK510 - Was 6635877 - A

7

85G1008

SCREW

8

42HS04

CLAMP, HOSE Was 6515575 - A

9

CAP NLA - Was 6562550 - A

10

HOSE NLA - Order Ref. 35 - 35'' (889 mm) long

11

6512203

GASKET fuel pump

12

6598753

ELBOW

13

6512138

VALVE shut off

14

6562559

BAND

15

6559447

WASHER square

16

84G3720

BOLT

17

6560117

WIRE

18

6562606

SEAL

19

742876

GROMMET

20

HOSE NLA - Order Ref. 34 - 6'' (152 mm) long

21

6512106

ELEMENT

22

6515603

GROMMET

23

6565845

TUBE

24

6505813

CONNECTOR

25

7024822

SOLENOID, FUEL Was 6559117

26

30H33

CLIP

27

17C412

BOLT 5

28

85D4

NUT 5

29

HOSE NLA - Order Ref. 34 - 3'' (76 mm) long

30

HOSE NLA - Order Ref. 34 - 34'' (863,6 mm) long

31

6515156

CONNECTOR

32

6598432

FUEL PUMP

33

6577821

HOSE bulk - sold per foot - Was 672221 - A

34

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - A

35

6654374

KEY Code GC020

35

6587458

KEY Code PK510
