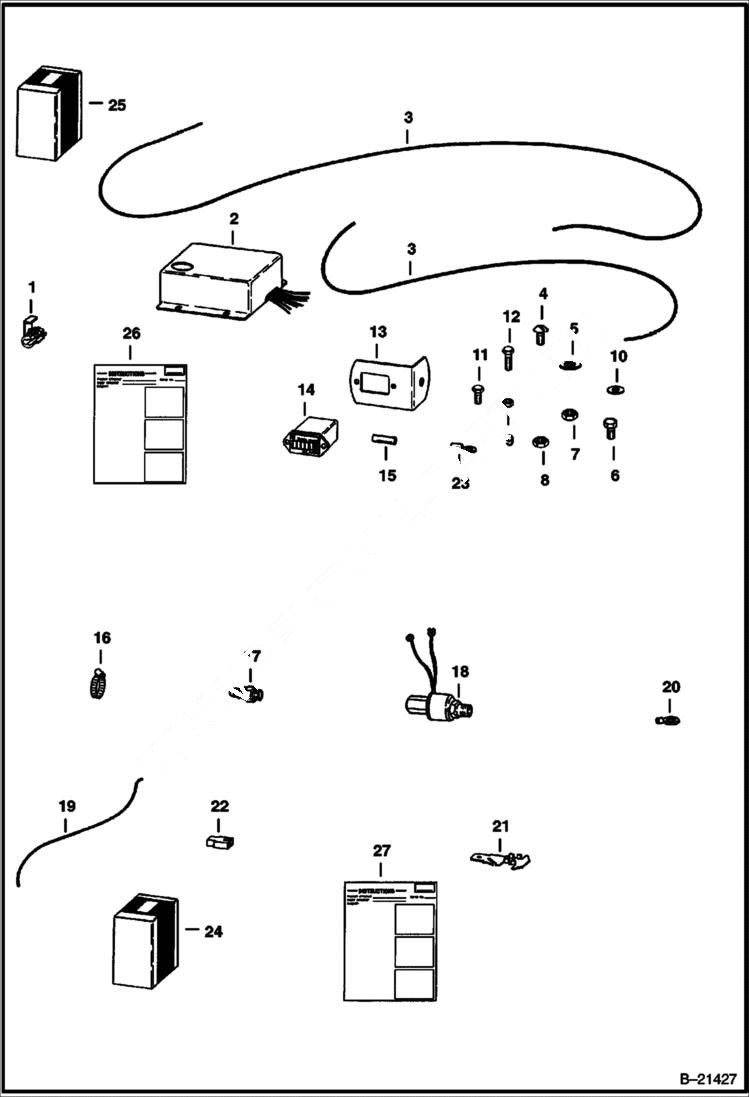

Запчасти Bobcat 500s RENTAL KIT & FUEL VALVE ACCESSORIES & OPTIONS

1

6513275

CONNECTOR

2

6513274

MODULE

3

WIRE NLA - 1 (304,8 mm) ft. - Was 774706 - A

3

774708

WIRE 3 (914,4mm) ft.

4

85G608

SCREW

5

25E17

WASHER 5

6

17C614

BOLT

7

12D6

NUT 10

8

61D4

NUT 5

9

61D6

NUT 5

10

6E4

WASHER 10

11

17C408

BOLT

12

17C412

BOLT 5

13

6552906

BRACKET

14

6664886

HOURMETER Was 6631657 - A

15

637641

SLEEVE

16

42HS04

CLAMP, HOSE Was 6515575 - A

17

6505813

CONNECTOR

18

7024822

SOLENOID, FUEL Was 6559117

19

WIRE NSS

20

EYELET NSS

21

TERMINAL NSS

22

CONNECTOR NSS

23

30R104

TERMINAL

23

30R107

TERMINAL

24

6560569

KIT fuel valve - Ref. 16 - 22 & 27

25

6562298

KIT rental - Ref. 1 - 15 & 23 - Must Also Order Ref. 24 & 26

26

INSTRUCTIONS NLA - rental kit - Print Instructions from BASS - Was 6556831 - A

27

6556562

INSTRUCTIONS Fuel Valve Kit
