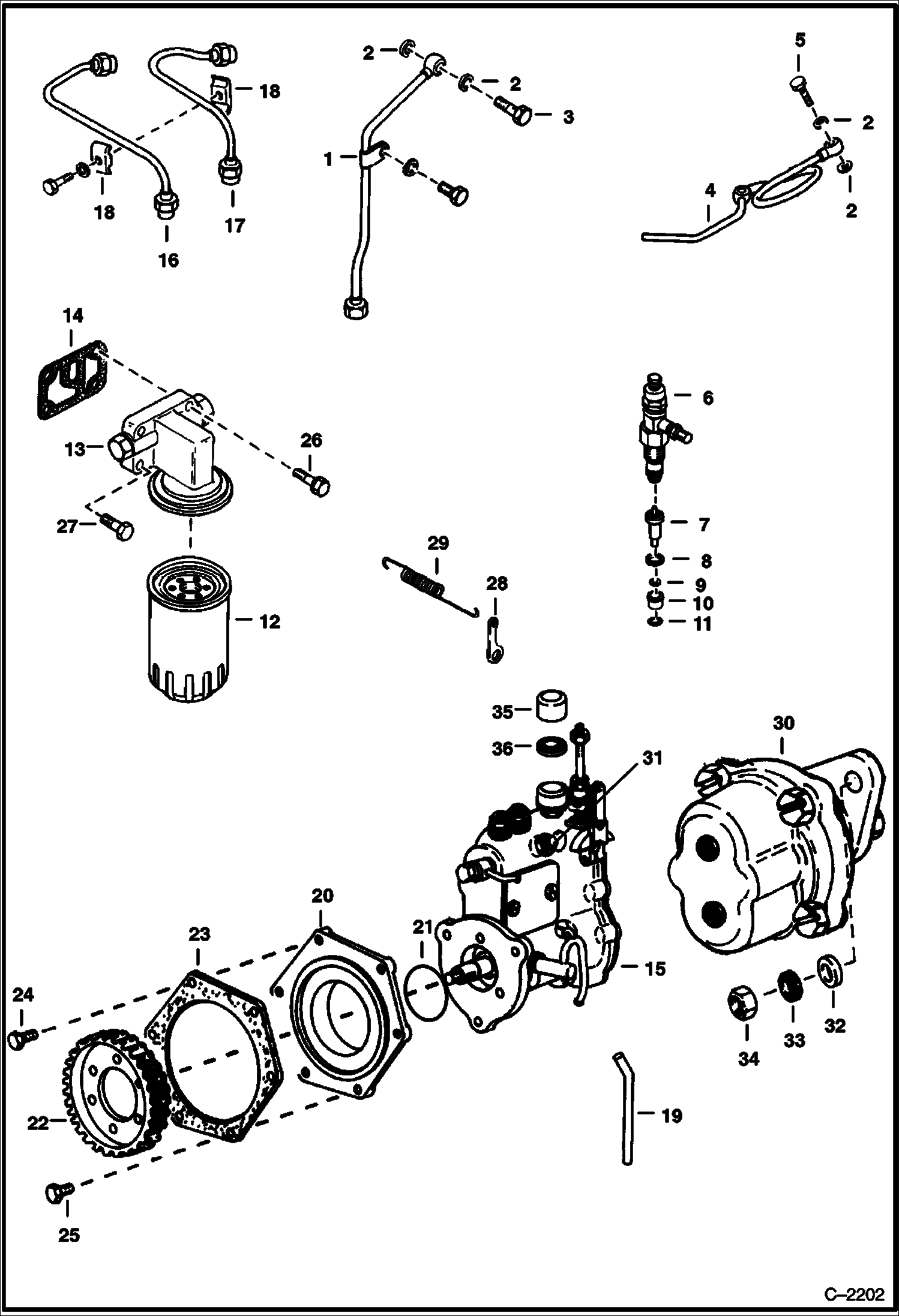

Запчасти Bobcat 500s FUEL INJECTION & LUBRICATION PARTS POWER UNIT

1

6513135

TUBE oil rocker arm

2

6513051

WASHER

3

6512702

BOLT hollow

4

6661094

TUBE fuel - Nozzle Leak Off - Was 6513040 - A

5

6512704

BOLT hollow

6

6512723

INJECTOR W/Out Ref. 7-11

7

6512705

NOZZLE Injector - Not W/Ref. 6

8

6512707

WASHER

9

6512709

WASHER corrugated

10

6512706

HEAT SHIELD

11

6512708

WASHER

12

6555779

ELEMENT oil filter - Package of 6

13

FILTER HEAD NLA - Was 6513059 - A

14

6513048

GASKET

15

PUMP NLA - injection - Was 6512722 - A

16

PIPE NLA - injection - Was 6513037 - A

17

PIPE NLA - injection - Was 6513038 - A

18

6513039

CLIP

19

6513041

PIPE vinyl

20

6513042

BRACKET

21

6513043

O-RING

22

GEAR NLA - Was 6513044 - A

23

6513045

GASKET

24

1CM875

BOLT

25

6513047

BOLT

26

6513049

BOLT

27

6513050

BOLT

28

BRACKET NLA - Spring - Was 6513052 - A

29

6513053

SPRING

30

6513073

FUEL PUMP

31

SCREW NLA - Was 6598349 - A

32

6631959

WASHER

33

3676453

WASHER

34

6631960

NUT

35

6662905

CAP

36

6651851

GASKET
