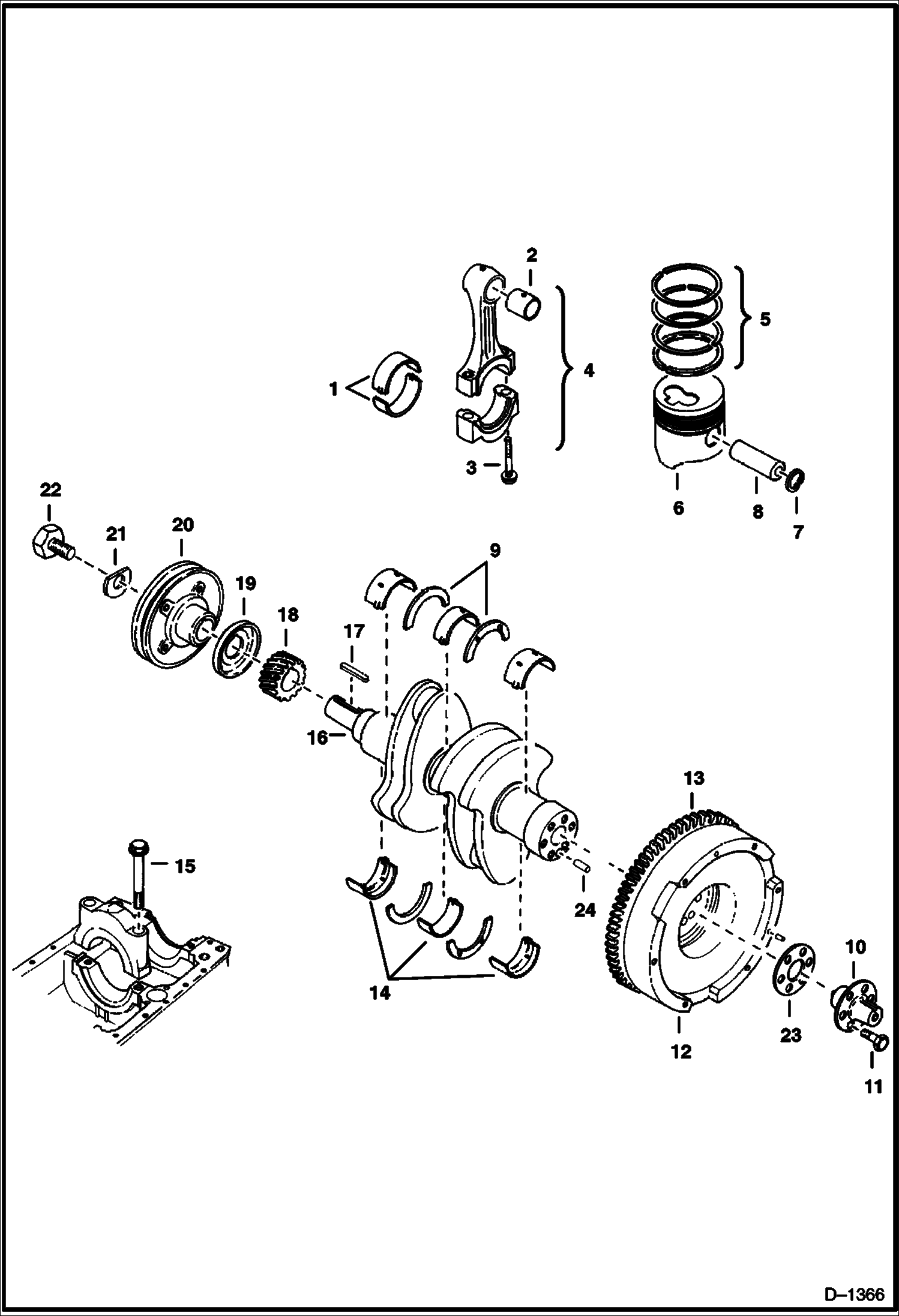

Запчасти Bobcat 500s PISTON & CRANKSHAFT POWER UNIT

1

6660991

BEARING SET rod - Std - Was 6512698 - A

1

6513087

BEARING SET rod - +.020'' (0,51mm)

1

6513088

BEARING SET rod - +.040'' (1,02mm)

2

6513029

BUSHING rod

3

6513140

BOLT

4

6512726

ROD

5

6598674

RING SET Std - For One Piston

5

6598737

RING SET +.020'' (0,51mm) - For One Piston

5

6598738

RING SET +.040'' (1,02mm) - For One Piston

6

PISTON NLA - Std. - Was 6513141 - A

6

6667580

PISTON +.020'' (0,51 mm) - Was 6513081 - A

6

6513082

PISTON +.040'' (1,02mm)

7

6512730

SNAP RING

8

6512729

PIN

9

6631780

BEARING Was 6513027 - A

10

6512825

SHAFT

11

BOLT NLA - Was 6512765 - A

12

FLYWHEEL NLA - Was 6512764 - A

13

6512766

RING GEAR

14

6512725

MAIN BEARING STD. - complete set

14

6513085

MAIN BEARING -.010'' (0,25mm) - complete set

14

6513086

MAIN BEARING -.020'' (0,51mm) - complete set

15

6512693

BOLT

16

CRANKSHAFT NLA - Was 6512724 - A

17

6512743

KEY

18

6512744

GEAR

19

6512745

OIL THROWER

20

6512763

PULLEY

21

6512697

WASHER

22

6512695

BOLT

23

6513031

WASHER

24

6513030

PIN
