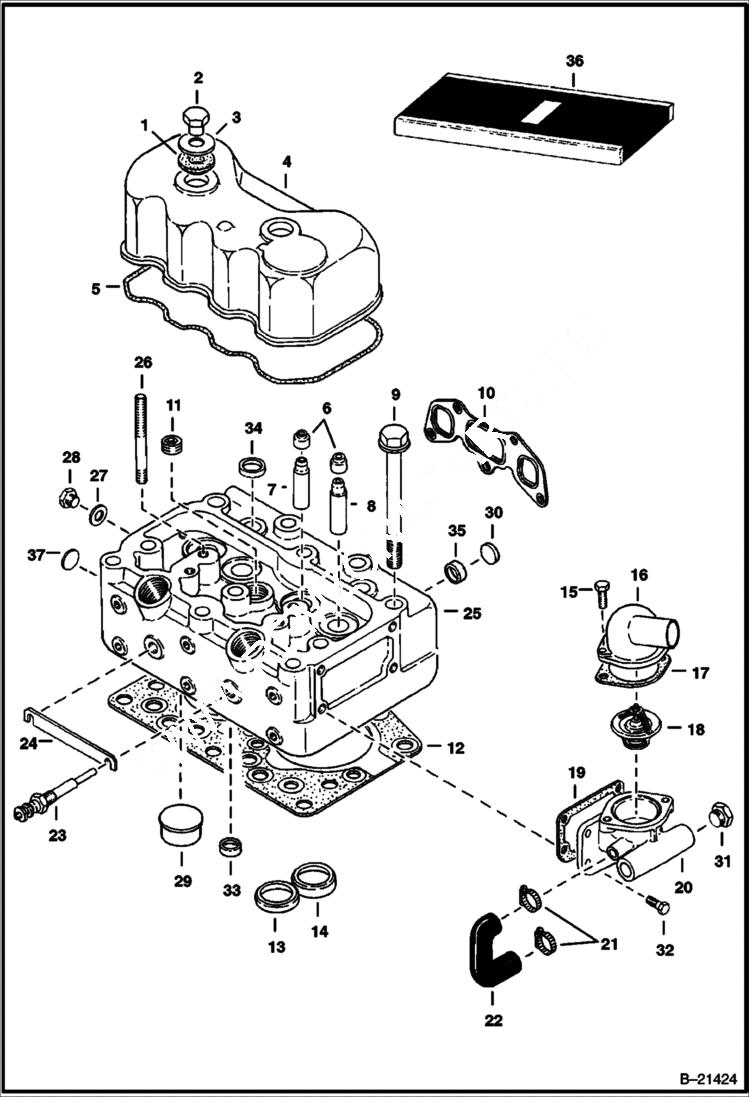

Запчасти Bobcat 500s CYLINDER HEAD POWER UNIT

1

6660993

SEAL Was 6512713 - A

2

6512970

NUT

3

6512971

WASHER

4

6512776

VALVE COVER

5

6512712

GASKET

6

6631753

SEAL Was 6512772 - A

7

6512769

VALVE GUIDE Intake

8

6512771

VALVE GUIDE Exhaust

9

6661092

BOLT Was 6512692 - A

10

6512716

GASKET manifold

11

16F8

PLUG

12

6512714

GASKET head

13

6512770

INSERT valve seat - Exhaust

14

6512768

INSERT valve seat - Intake

15

6513009

BOLT

16

6513007

OUTLET

17

6661097

GASKET Was 6512701 - A

18

6555980

THERMOSTAT

19

6512715

GASKET

20

6512721

HOUSING

21

42H12

CLAMP 10

22

6513014

HOSE

23

6512700

GLOW PLUG

24

6512972

CONNECTOR

25

HEAD NLA - cylinder - W/Ref. 6-8, 11, 13, 14, 28-30 & 33-35 - Was 6512767 - A

26

6512690

STUD

27

1FM80115

WASHER

28

6512965

PLUG

29

PLUG NLA - Was 6512966 - A

30

6512967

PLUG

31

6513008

PLUG

32

6513004

BOLT

33

6670643

CUP Was 3FM16 - A

34

6631743

PLUG Was 3FM00018B - A

35

3FM00012

PLUG

36

6664382

KIT gasket - Was 6662216 - A

37

6512964

PLUG
