Bobcat
/
Погрузчики
/
500s
/
533
/
4990M11001 & Above, 4990M12001 & Above, 4990M13001 & Above
/
POWER UNIT
/

ENGINE ISUZU 2AA1

Запчасти Bobcat 500s ENGINE ISUZU 2AA1 POWER UNIT

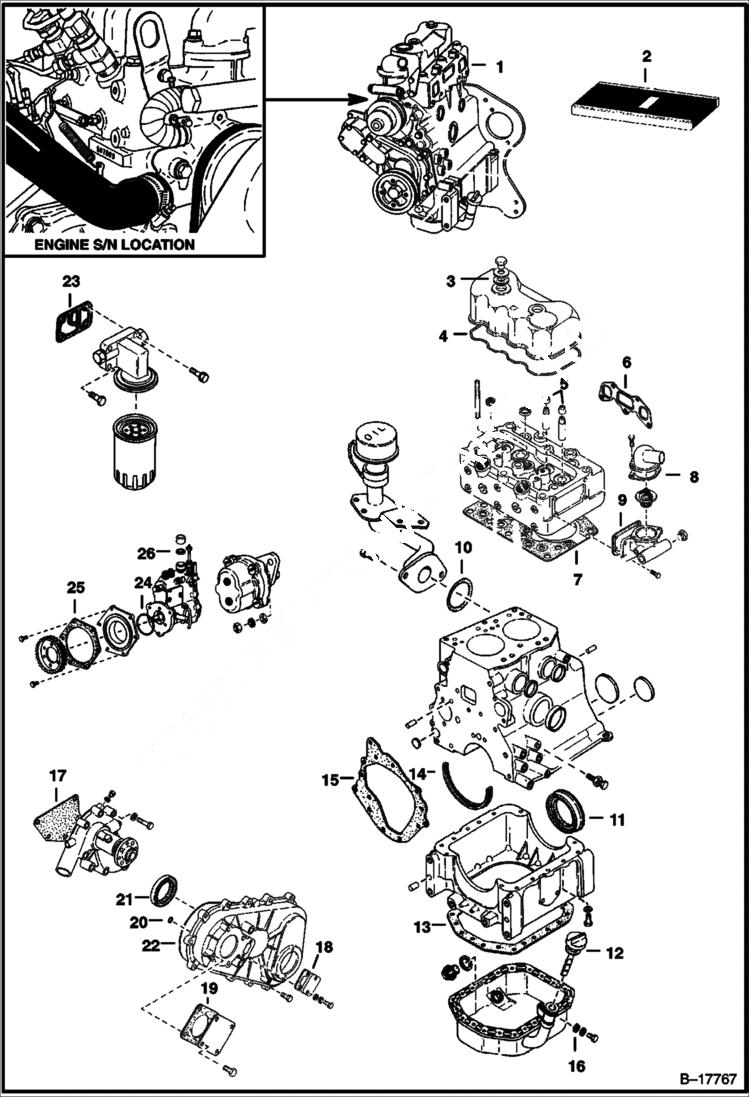

Схема запчастей Bobcat 500s - ENGINE ISUZU 2AA1 POWER UNIT

№

Артикул

Название

Примечание

Количество

1

ENGINE NLA - Includes flywheel, starter, injection pump & fuel pump - Does not include alternator or muffler - Was 6555800 - A

1

SHORT BLOCK NLA - Includes crankshaft, crankshaft seal, main bearings, pistons, conn. rods, camshaft & tappets - Does not include oil pump - Was 6512990 - A

2

6664382

KIT gasket - overhaul - Was 6662216 - A

3

6660993

SEAL See Illustration CYLINDER HEAD/ B21424 Ref. 1

4

6512712

GASKET See Illustration CYLINDER HEAD/ B21424 Ref. 5

5

6631753

SEAL See Illustration CYLINDER HEAD/ B21424 Ref. 6 - Was 6512772 - A

6

6512716

GASKET See Illustration CYLINDER HEAD/ B21424 Ref. 10

7

6512714

GASKET See Illustration CYLINDER HEAD/ B21424 Ref. 12

8

6661097

GASKET See Illustration CYLINDER HEAD/ B21424 Ref. 17

9

6512715

GASKET See Illustration CYLINDER HEAD/ B21424 Ref. 19

10

6513003

O-RING See Illustration CYLINDER BLOCK/ B21425 Ref. 4

11

6661093

SEAL See Illustration CYLINDER BLOCK/ B21425 Ref. 8

12

6512994

SEAL See Illustration CYLINDER BLOCK/ B21425 Ref. 11

13

6512720

GASKET See Illustration CYLINDER BLOCK/ B21425 Ref. 13

14

6512719

SEAL See Illustration CYLINDER BLOCK/ B21425 Ref. 14

15

6513137

GASKET See Illustration CYLINDER BLOCK/ B21425 Ref. 15

16

6512996

WASHER See Illustration CYLINDER BLOCK/ B21425 Ref. 29

17

6512711

GASKET See Illustration WATER PUMP & FRONT COVER/ C2201 Ref. 1

18

6513017

GASKET See Illustration WATER PUMP & FRONT COVER/ C2201 Ref. 6

19

GASKET See Illustration WATER PUMP & FRONT COVER/ C2201 NLA - Ref. 9 - Was 6513020 - A

20

6513022

O-RING See Illustration WATER PUMP & FRONT COVER/ C2201 Ref. 11

21

6631741

SEAL See Illustration WATER PUMP & FRONT COVER/ C2201 Ref. 12

22

6513025

O-RING See Illustration WATER PUMP & FRONT COVER/ C2201 Ref. 13

23

6513048

GASKET See Illustration FUEL INJECTION & LUBRICATION PARTS/ C2202 Ref. 14

24

6513043

O-RING See Illustration FUEL INJECTION & LUBRICATION PARTS/ C2202 Ref. 21

25

6513045

GASKET See Illustration FUEL INJECTION & LUBRICATION PARTS/ C2202 Ref. 23

26

6651851

GASKET See Illustration FUEL INJECTION & LUBRICATION PARTS/ C2202 Ref. 36

Выбрано товаров: 27
