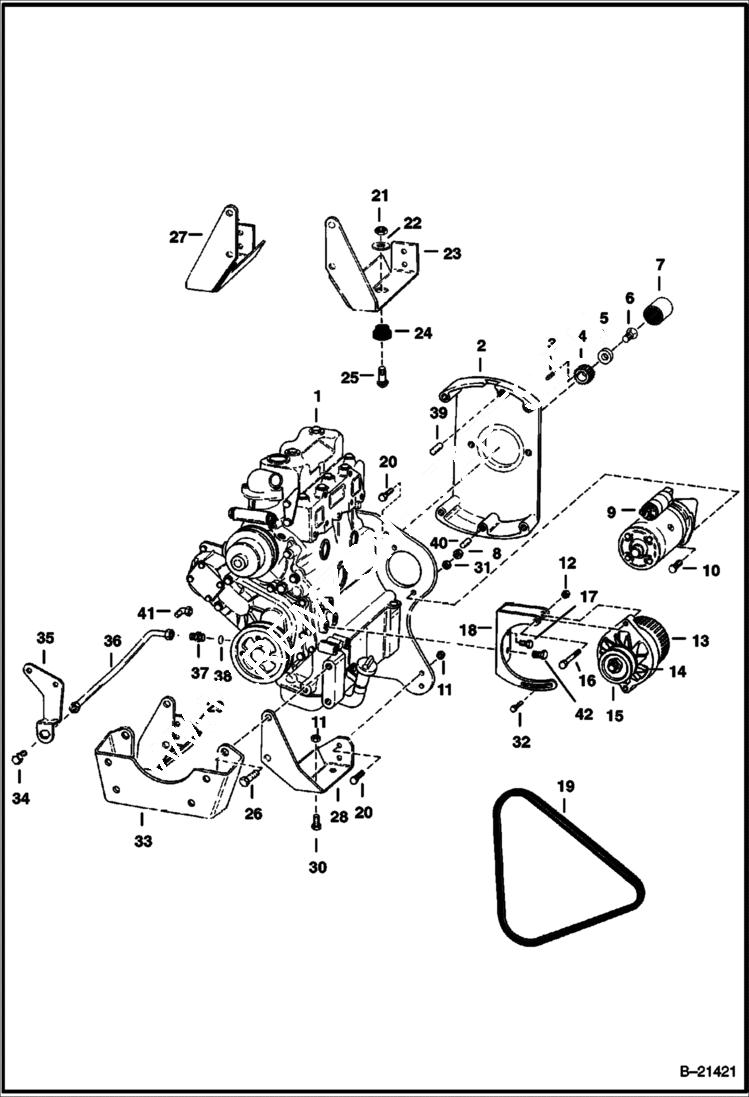

Запчасти Bobcat 500s ENGINE & ATTACHING PARTS POWER UNIT

1

ENGINE Isuzu 2AA1

2

6555516

HOUSING

3

7J3009

KEY square

4

6553539

ADAPTER

5

6553541

WASHER

6

96G616

SCREW allen head

7

6553540

COUPLER

8

6513055

NUT

9

STARTER See Illustration STARTER/ B21420 See Illustration STARTER/ C2199

10

BOLT NLA - Was 1CM001232B - A

11

61D8

NUT 5

12

61D6

NUT 5

13

ALTERNATOR See Illustration ALTERNATOR/ B21419A See Illustration ALTERNATOR/ B21418

14

329884

FAN

15

6541920

PULLEY

16

17C648

BOLT 5

17

6CM1220

BOLT

18

6558593

BRACKET

19

6555732

BELT alternator

20

17C820

BOLT

21

81D8

NUT

22

6515817

WASHER

23

MOUNT NLA - motor - R.H. - Replace/W 1-6558022, 4-17C-816 & 4-61D-8

24

SPACER NLA - Was 6558100 - A

25

BOLT NLA - Was 6553339 - A

26

1CM1425

BOLT Was 4CM1425 - A

27

MOUNT NLA - motor - L.H. - Replace/W 1-6558019, 4-17C-816 & 4-61D-8

28

6558019

BRACKET

29

6558022

BRACKET

30

17C816

BOLT

31

6513056

WASHER

32

35C516

BOLT 10 5/16'' dia - 1'' long - Was 6554744 - A

32

29CM825

BOLT 8mm dia - 25 mm long

33

6558472

BRACKET

34

PLUG NLA - Use Ref. 34, 36 & 41

34

36K6

CAP

35

BRACKET NLA - Use Ref. 34, 36 & 41

36

TUBE NLA - Use Ref. 34, 36 & 41

36

6553204

HOSE

37

6558947

ADAPTER

38

25K40026

O RING 10

39

6512981

PIN

40

656978

PIN

41

11K6

UNION

42

5CM1420

SCREW
