Запчасти Bobcat 500s STARTER ELECTRICAL SYSTEM

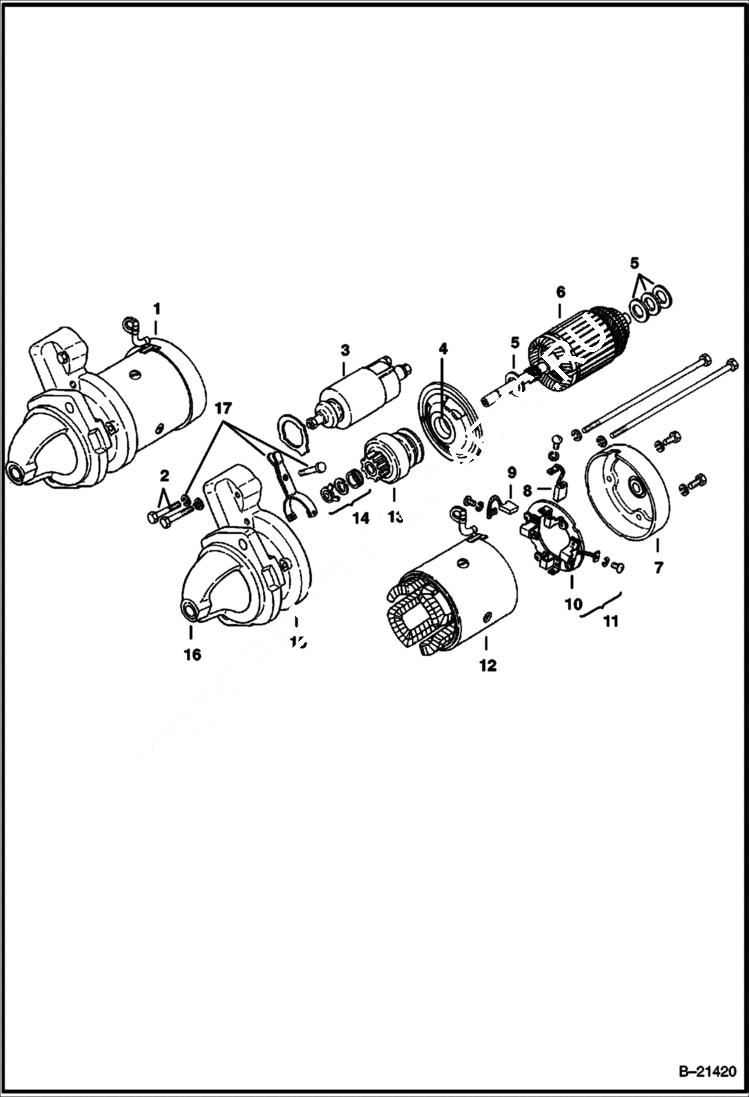

Схема запчастей Bobcat 500s - STARTER ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

STARTER NLA - 98210 - 01522 - order 6513138

2

6513348

BOLT

3

6513347

SOLENOID

4

6513342

BEARING

5

6513331

KIT thrust washer

6

6513333

ARMATURE

7

6513340

COVER W/Bushing

8

6513338

BRUSH (-)

9

6667581

BRUSH (+) - Was 6513337 - A

10

6513339

BRUSH spring

11

6513336

HOLDER brush assy. - Ref. 8-10

12

6513334

COIL

13

6513343

DRIVE

14

6513332

DRIVE SET

15

6513346

HOUSING W/Ref. 16

16

BUSHING NSS

17

6513345

LEVER shift set

Выбрано товаров: 17
