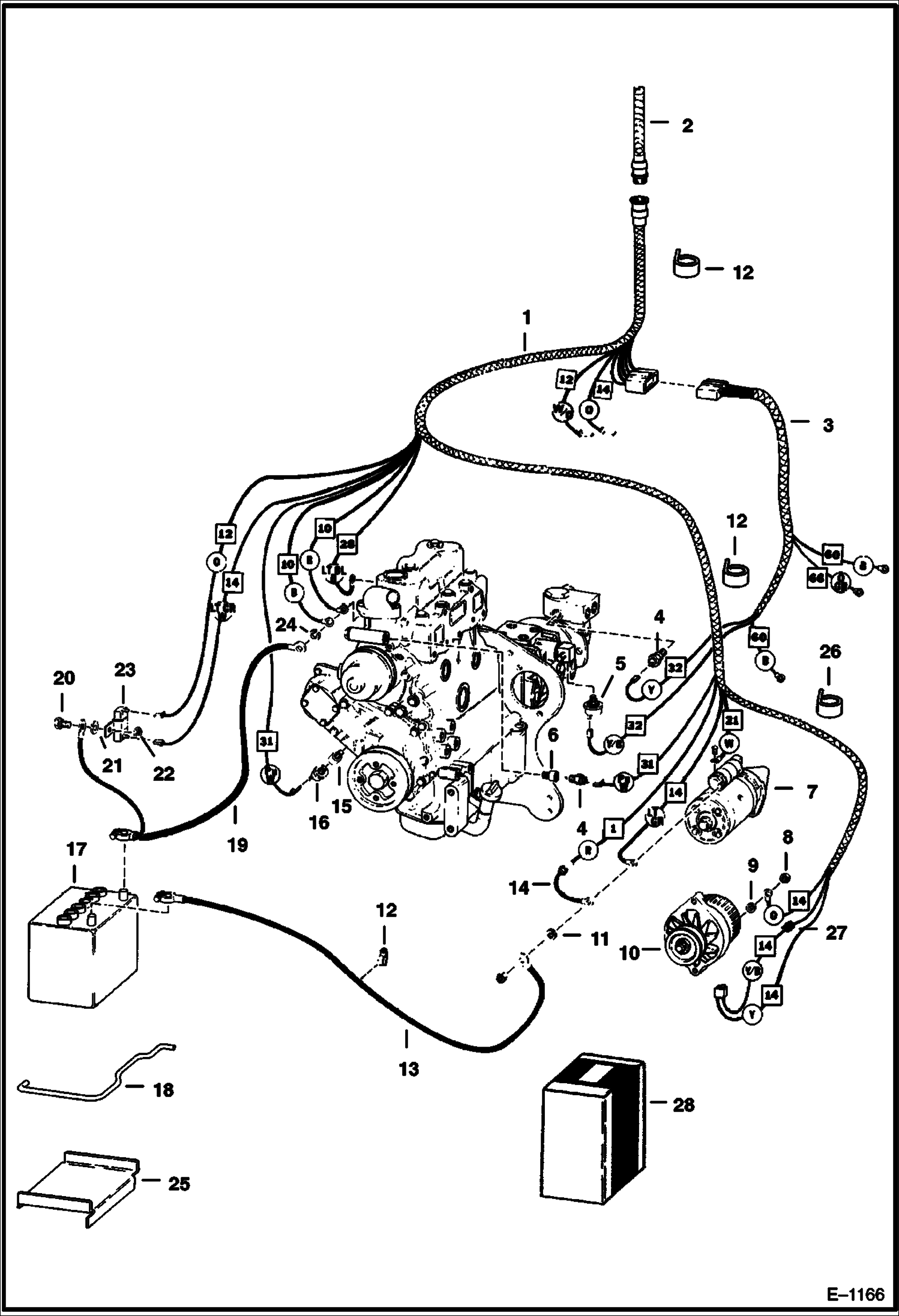

Запчасти Bobcat 500s ENGINE ELECTRICAL S/N 11999 & Below ELECTRICAL SYSTEM

1

6557452

HARNESS engine

2

HARNESS See Illustration CAB ELECTRICAL/ E1226 See Illustration CAB ELECTRICAL/ B21417 CAB

3

6557447

HARNESS wiring

4

6630821

SWITCH hydro. temp.

5

6557449

SWITCH hydro. pressure

6

19F3

BUSHING

7

STARTER See Illustration STARTER/ B21420 See Illustration STARTER/ C2199

8

12D12

NUT

9

6E4

WASHER 10

10

ALTERNATOR See Illustration ALTERNATOR/ B21419A See Illustration ALTERNATOR/ B21418

11

6E6

WASHER

12

30H41

CLIP

13

6553748

CABLE battery

14

6518132

FUSE 40A

15

6557453

ADAPTER

16

6631010

SWITCH, PRESS OIL ENG eng. oil pressure

17

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

17

6630154

CAP ``Danger''

17

6630155

CAP ``Poison''

17

CAP NLA - Was 6514898 - A

18

6553338

BRACKET battery holddown

19

6557451

CABLE battery

20

17C510

BOLT

21

6E5

WASHER

22

61D5

NUT

23

RESISTOR NLA - Was 6506077 - A

24

6E7

WASHER

25

BATTERY NLA - Was 6557794 - A

26

CLIP NLA - Was 6502236 - A

27

3675725

DIODE

28

KIT See Illustration WIRE HARNESS CONNECTOR/ A2765 NLA - connector - Was 6563326 - A
