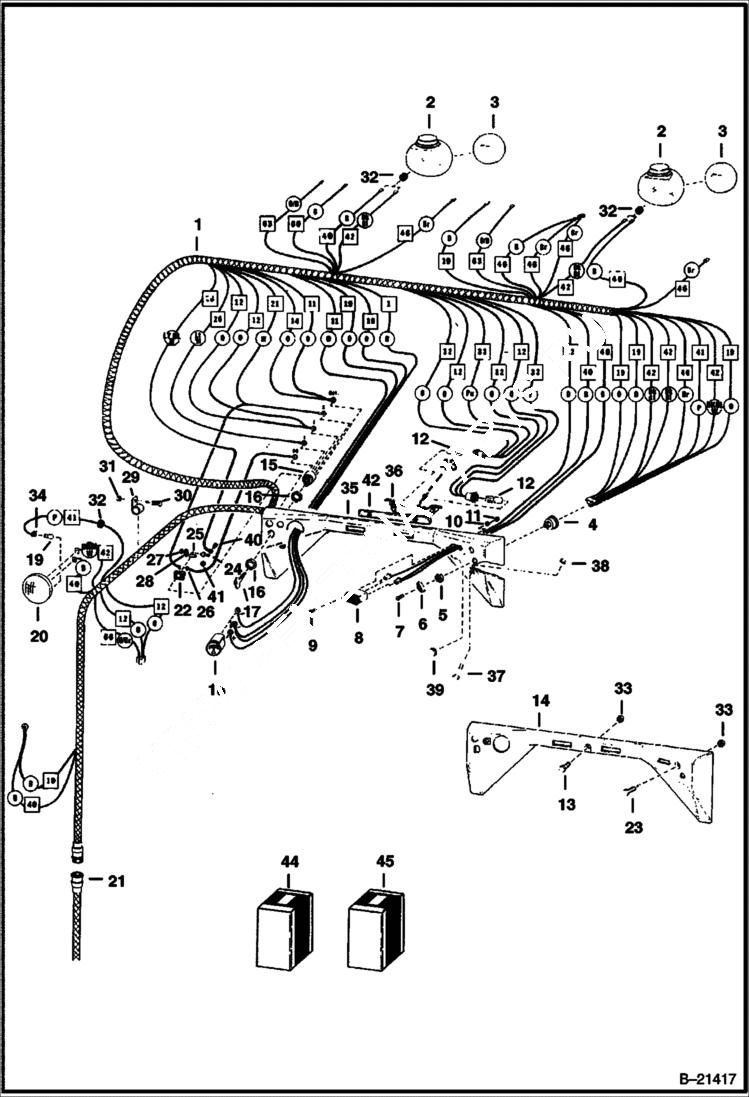

Запчасти Bobcat 500s CAB ELECTRICAL S/N 11999 & Below ELECTRICAL SYSTEM

1

6557492

HARNESS cab

2

6558142

HOUSING light

3

6557486

LAMP

4

6512808

SWITCH light - W/Ref. 5-7

5

NUT NSS

6

6599781

KNOB

7

SCREW NSS

8

6664886

HOURMETER Was 6631657 - A

9

85G808

SCREW

10

12E6

WASHER

11

12D6

NUT 10

12

6513468

BULB

13

17C532

BOLT 5

14

PANEL NLA - instrument - Was 6558243 - A

15

SWITCH See BTI289 NLA - ignition - W/Ref. 16 - Order Ref. 45 - Was 6519592 - A

15

6665606

SWITCH

16

6598721

NUT For NLA/6519592 Switch

16

6674202

NUT For 6665606 Switch

17

6512809

KEY for NLA/6519592 Switch

17

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

17

6693241

KEY 10 ignition - single key W/O ring

18

6512807

GAUGE amp.

19

960855

1003 BULB #1003 - Use only W/#4409 Lamp

19

898731

1156 BULB #1156 - Use only W/#4409X Lamp

20

LAMP NLA - #4409 - Order 6563740 & 898731B

20

6563740

LAMP #4409X

21

HARNESS See Illustration ENGINE ELECTRICAL/ E1311 See Illustration ENGINE ELECTRICAL/ E1166 ENG.

22

6557458

INDICATOR glow plug

23

17C560

BOLT

24

6512963

DIODE

25

6558093

BUS BAR

26

30R103

TERMINAL

27

62D4

NUT

28

6E4

WASHER 10

29

30H41

CLIP

30

10C512

BOLT Was 6553808 - A

31

61D5

NUT

32

6557493

GROMMET

33

91D5

NUT 5 Was 81D000005B - B

34

6557504

SOCKET bulb

35

PANEL NLA - instrument - Was 6558243 - A

36

6558242

BRACKET

37

17C572

BOLT

38

57D5

NUT Was 6511320 - A

39

1300057

PLUG

40

BOLT NLA - Was 85G000806B - A

41

12D8

NUT

42

6560699

LENS

43

6514742

RIVET

44

KIT See Illustration WIRE HARNESS CONNECTOR/ A2765 NLA - connector - Was 6563326 - A

45

6724282

SWITCH KIT Ref. 15 & 17
