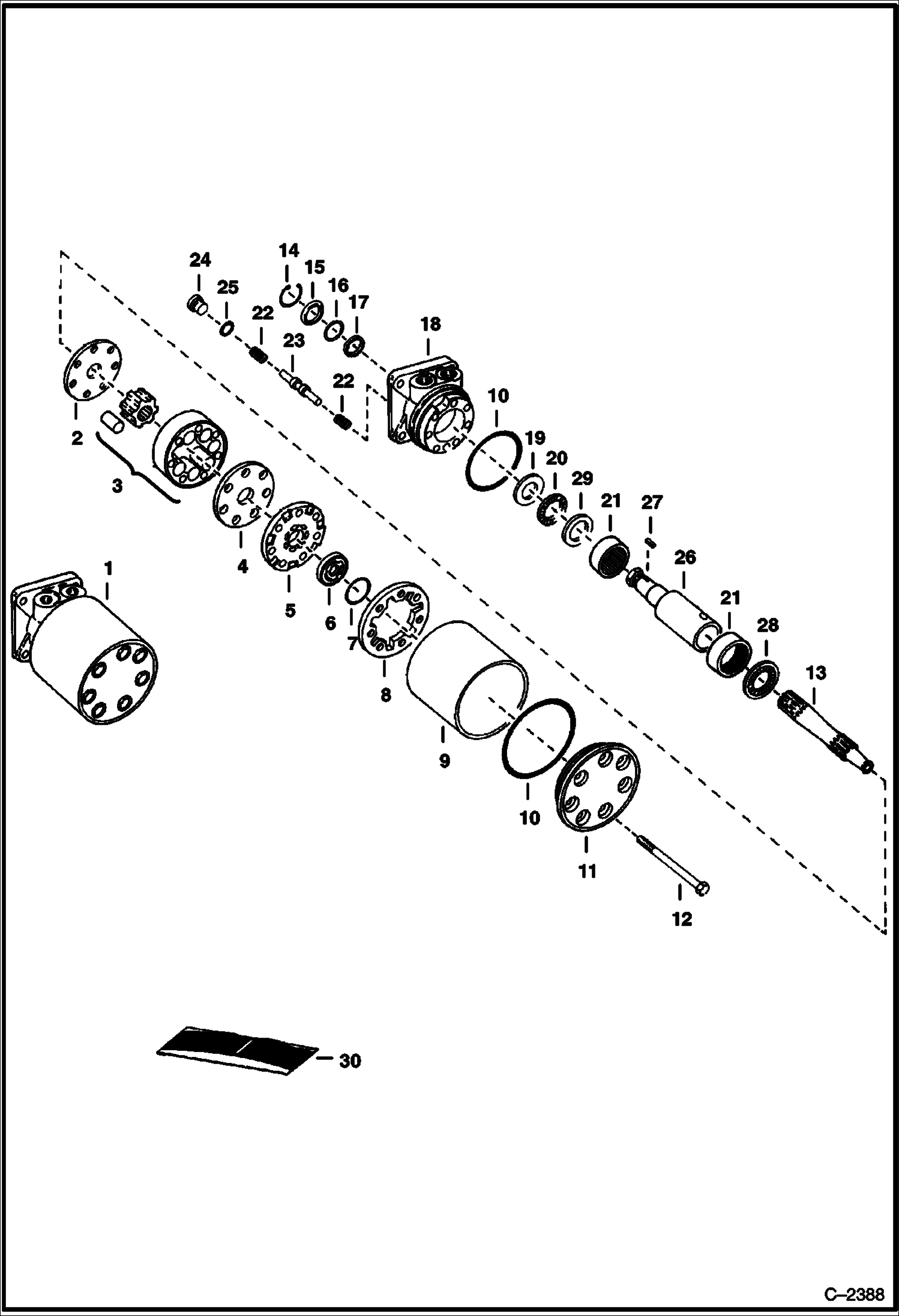

Запчасти Bobcat 500s HYDROSTATIC MOTOR MAE 24032 & MAE 24033 S/N 13001 & Above HYDROSTATIC SYSTEM

1

MOTOR See BTI155 See BTI287 NLA - hydrostatic - MAE 24032

1

MOTOR See BTI287 NLA - MAE 24033 - Was 6562006 - A

2

6512296

PLATE wear

3

ROTOR NLA - Was 6512297 - A

4

PLATE NLA - Was 6512298 - A

5

6512299

MANIFOLD

6

COMMUTATOR NSS

7

RING NSS - bonded

8

COMMUTATOR NLA - W/Ref. 6 - See 6512300

9

SLEEVE NLA - Was 6512306 - A

10

SEAL NSS

11

6512302

COVER

12

BOLT NLA - Was 994202 - A

13

LINK NLA - drive - Was 6512294 - A

14

SNAP RING NSS

15

WASHER NSS - back-up

16

WASHER NSS - back-up

17

SEAL NSS

18

HOUSING See BTI287 NLA - Was 6598050 - A

19

6514066

WASHER

20

6514052

BEARING

21

BEARING NLA - needle - Was 6514065 - A

22

SPRING NLA - Was 6513544 - A

23

6513543

VALVE spool - Closed Center

23

VALVE NLA - spool - Open Center - Was 6514738 - A

24

47K3

PLUG W/Ref. 25

25

6514064

O-RING

26

SHAFT NLA - Use 6562047 For MAE 24032 Only

26

SHAFT NLA- For MAE 24033 Only - Was 6598049 - A

27

6514053

KEY square

27

6J1008

KEY woodruff

28

6514056

BEARING

29

6598048

WASHER

30

6514896

SEAL KIT Ref. 7, 10 & 14 - 17

30

KIT See BTI287 NLA - Ref. 7, 10 & 14 - 27 - Was 6562047 - A

30

KIT See BTI287 NLA - Ref. 1 & 23 - Was 6561521 - A
