Запчасти Bobcat 500s HYDROSTATIC MOTOR MAE 24012, MAE 24021 & MAE 24024 S/N 12999 & Below HYDROSTATIC SYSTEM

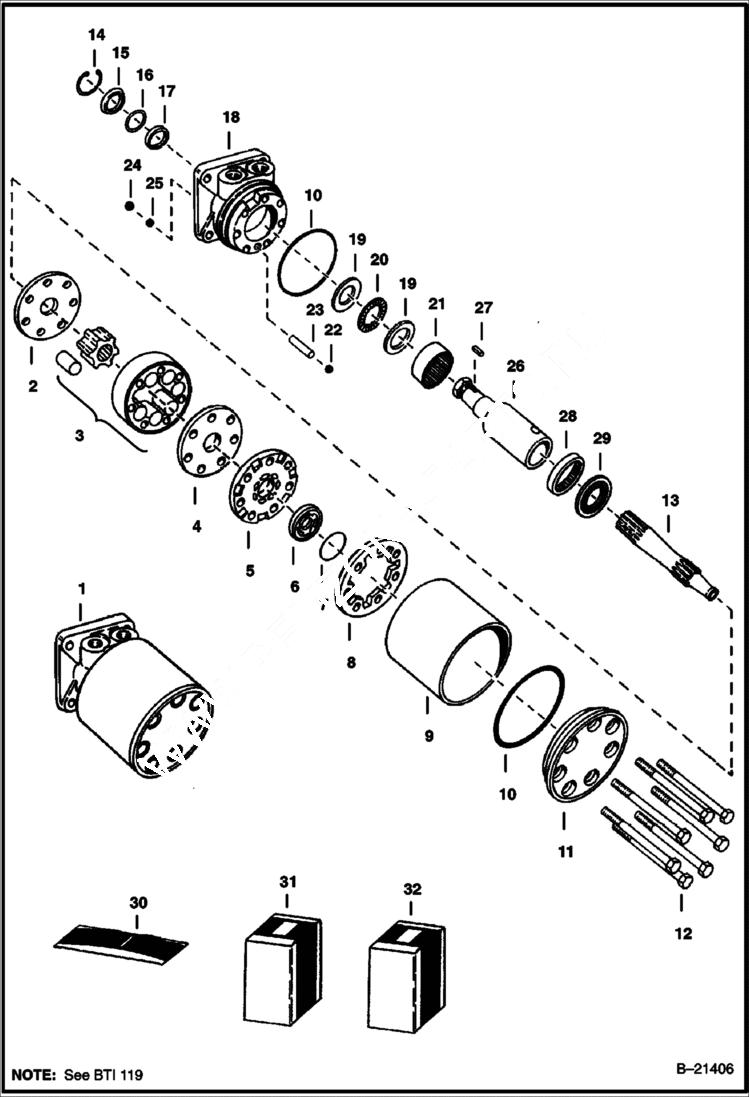

Схема запчастей Bobcat 500s - HYDROSTATIC MOTOR MAE 24012, MAE 24021 & MAE 24024 S/N 12999 & Below HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

MOTOR See BTI119 See BTI155 See BTI287 NLA - ORDER 6561521 KIT

2

6512296

PLATE

3

ROTOR NLA - Was 6512297 - A

4

PLATE NLA - Was 6512298 - A

5

6512299

MANIFOLD

6

COMMUTATOR NSS

7

RING NSS

8

COMMUTATOR NLA - W/Ref. 6 - Was 6512300 - A

9

SLEEVE NLA - Was 6512306 - A

10

SEAL NSS

11

6512302

COVER

12

BOLT NLA - Was 994202 - A

13

LINK NLA - Was 6512294 - A

14

RING NSS

15

SPACER NSS

16

WASHER NSS

17

SEAL NSS

18

HOUSING See BTI155 See BTI287 NLA - Order 6562047 Kit

19

WASHER NLA - Was 6512338 - A

20

BEARING NLA - Was 6512293 - A

21

BEARING NLA - See Ref. 1 - Was 6512292 - A

22

853750

BALL

23

PIN NLA

24

BALL NLA

25

BALL NLA

26

SHAFT See BTI155 See BTI287 NLA - Order 6562047 Kit

27

6514053

KEY Was 7J004014B - A

27

6J1008

KEY woodruff

28

730143

BEARING

29

BEARING NLA - Was 6512295 - A

30

6513423

SEAL KIT

31

KIT See BTI287 NLA - motor & spool - Was 6561521 - A

32

6576451

KIT See Illustration CLOSED CENTER KIT/ C3054 CLOSED CENTER

Выбрано товаров: 33
