Запчасти Bobcat 500s HAND CONTROLS S/N 12001 & Above HYDROSTATIC SYSTEM

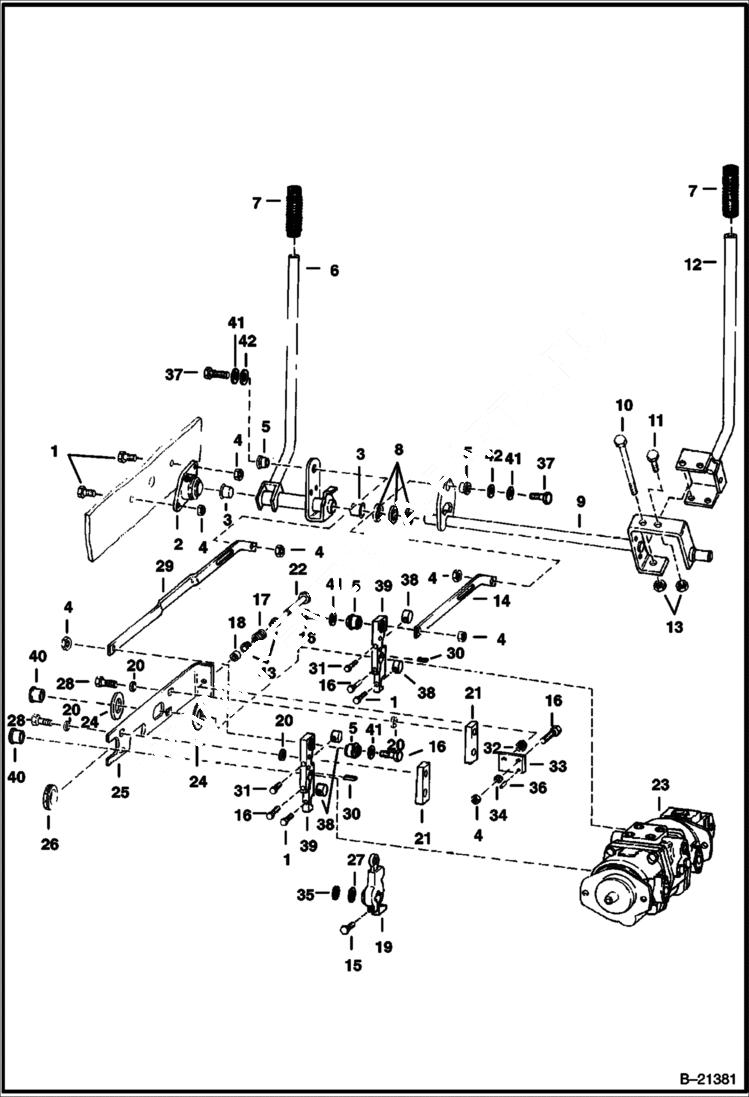

Схема запчастей Bobcat 500s - HAND CONTROLS S/N 12001 & Above HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

17C612

BOLT 5

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6558460

HANDLE L.H.

7

6513963

GRIP

8

25E29

WSHR

9

6564705

SHAFT Was 6558461 - A

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE R.H.

13

61D6

NUT 5

14

6558788

BAR

15

17C522

BOLT

16

17C628

BOLT

17

SPRING NLA - .44'' (11,18 mm) I.D. - Order 6572026 & 2 - 6571991 - Was 6505082 - A

17

6572026

SPRING .75'' (19,05mm) I.D.

18

6579990

WASHER

19

LEVER NLA - Order Ref. 1, 5, 16, 30, 31 & 38 - 41

20

6557831

WASHER

21

6562281

BAR

22

17C664

BOLT

23

PUMP See Illustration HYDROSTATIC PUMP/ B21405

24

6558680

WASHER

25

6558750

BRACKET

26

6558436

GUIDE

27

RETAINER NLA - Use W/Ref. 19 - Order Ref. 1, 5, 16, 31 & 38-40 - Was 6513388 - A

27

WASHER NLA - Use W/Ref. 19 - Was 6560894 - A

28

8C616

SCREW

29

6558787

BAR

30

5J806

KEY Use W/Ref. 19

30

8J3011

KEY Use W/Ref. 39

31

17C624

BOLT 5

32

83D6

NUT 5 Was 57D000006B - B

33

6559985

BLOCK

34

763403

WASHER

35

659764

RING Use W/Ref. 19

36

14J2522

PIN

37

17C626

BOLT

38

6562062

CAM

39

LEVER NLA - pintle - Order 6733231, 6678067 & 619021 - Was 6565753 - A

39

6733231

LEVER pintle

40

6565824

PIN Was 6562277 - A

41

6563914

WASHER

42

6563965

WASHER

43

6571991

GUIDE Use W/6572026 Spring

Выбрано товаров: 47
