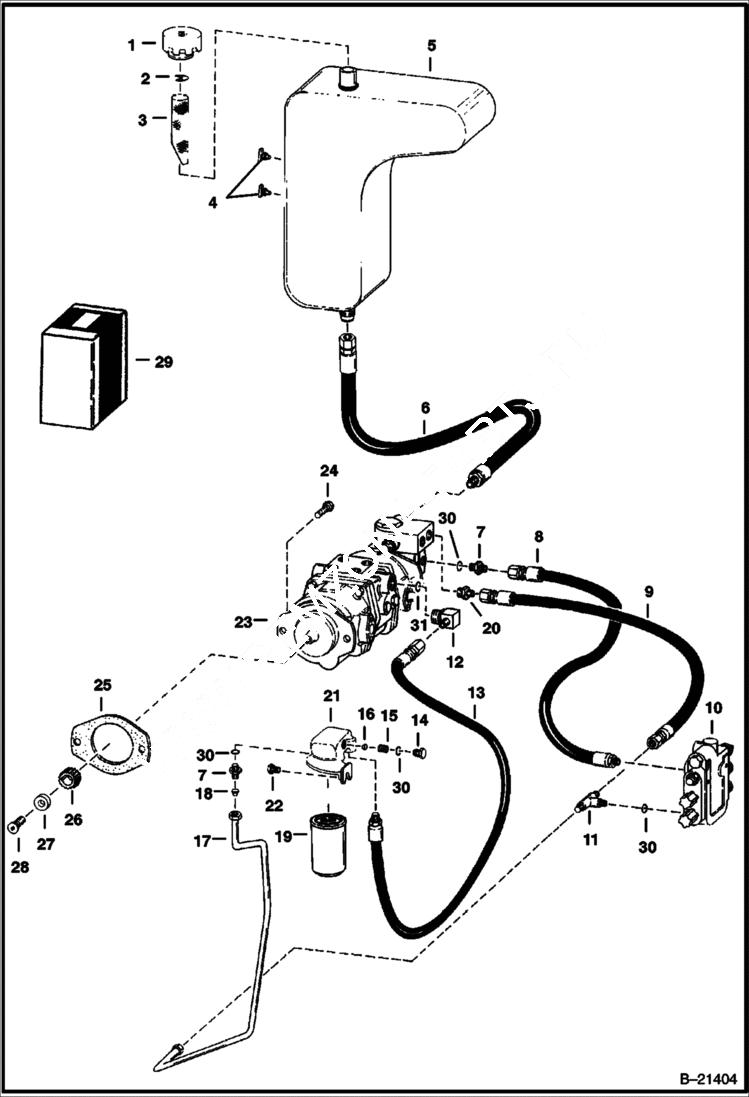

Запчасти Bobcat 500s HYDROSTATIC PUMP CIRCUITRY S/N 12999 & Below HYDROSTATIC SYSTEM

1

CAP NLA - Pack of 12 - Was 1779011B - A

1

6577785

CAP breather - Qty. of 1

2

713133

SNAP RING

3

6558604

SCREEN

4

72F1

FITTING

5

6555794

RESERVOIR

6

6557490

HOSE

7

15K7

FITTING W/Ref. 30

8

6553853

HOSE

9

6553856

HOSE

9

540845

HOSE ASY

10

VALVE See Illustration HYDRAULIC VALVE/ B21378

11

19K7

TEE W/Ref. 30

12

6560115

ELBOW W/Ref. 31

13

6557489

HOSE

14

6561811

PLUG W/Ref. 30

15

6553897

SPRING

16

6515078

POPPET

17

6555892

TUBE

18

6555832

ORIFICE

19

6515541

ELEMENT 10 Micron

20

6559518

ADAPTER

21

FILTER HEAD See BTI185 NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

22

84G3712

BOLT 5

23

PUMP See Illustration HYDROSTATIC PUMP/ B21405

24

17C820

BOLT

25

6503835

GASKET

26

6553539

ADAPTER

27

6553541

WASHER

28

96G616

SCREW allen head

29

6559850

KIT cold weather by-pass

30

79K10

O RING 10 Was 91F000007B - A

31

79K16

O RING 10 Was 91F000010B - A
