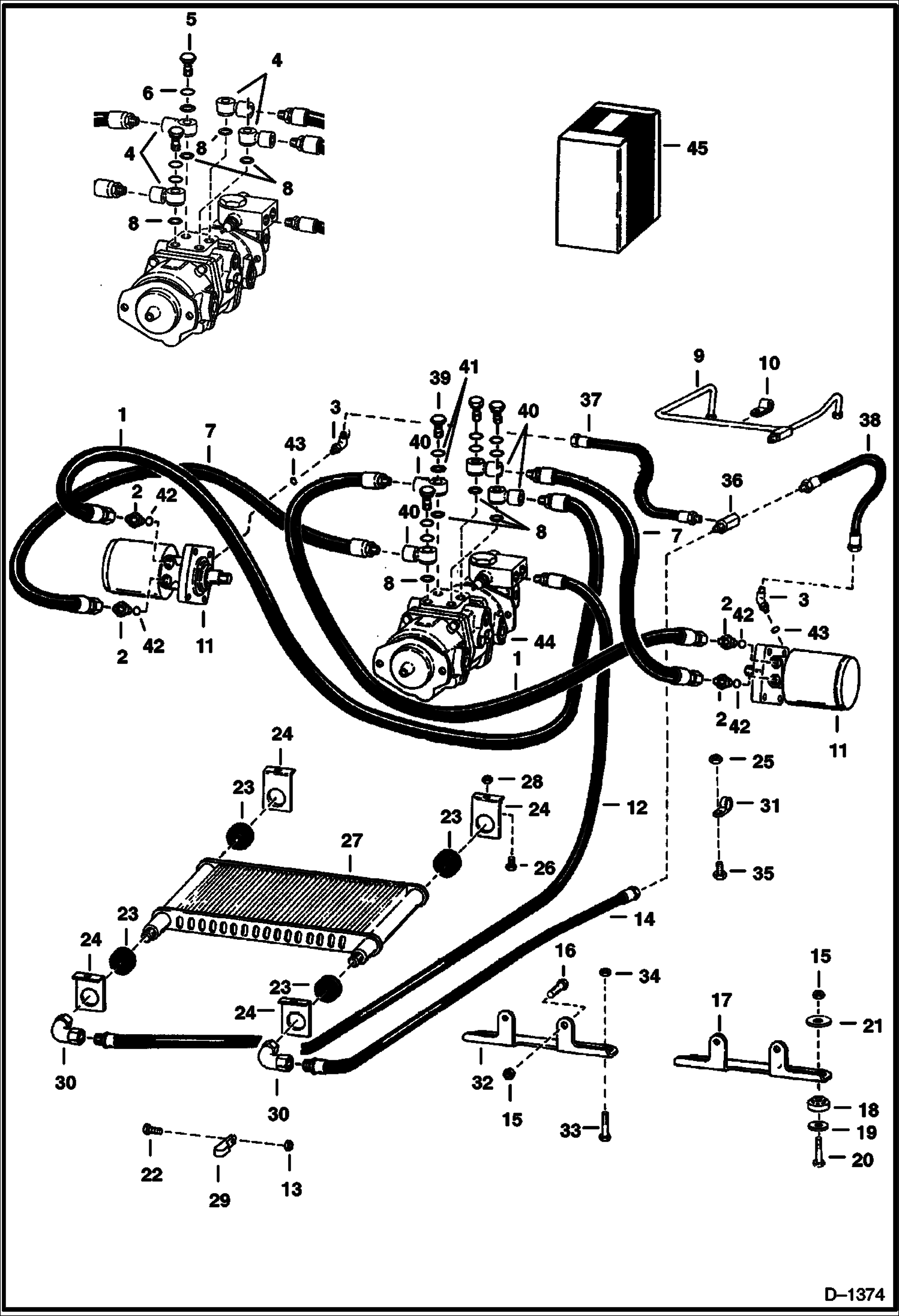

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY S/N 12999 & Below HYDROSTATIC SYSTEM

1

6557647

HOSE

2

730963

CONNECTR W/Ref. 42

3

17K5

ELBOW W/Ref. 43

4

FITTING NLA - Order Ref. 39-41

5

BOLT NLA - hollow - Order Ref. 39-41

6

79K16

O RING 10 Was 91F000010B - A

7

6557646

HOSE

8

79K12

O RING 10 Was 91F000008B - A

9

6557148

TUBE

10

30H62

CLIP

11

MOTOR See Illustration HYDROSTATIC MOTOR/ C2388 See Illustration HYDROSTATIC MOTOR/ B21406 NLA

12

6553857

HOSE

13

81D8

NUT

14

6554256

HOSE

15

81D8

NUT

16

17C820

BOLT

17

BRACKET NLA - Order Ref. 32-34

18

SPACER NLA - Was 6558100 - A

19

6543321

WASHER

20

17C836

BOLT

21

6515817

WASHER

22

17C624

BOLT 5

23

6511983

GROMMET

24

6558511

BRACKET

25

61D6

NUT 5

26

37C616

BOLT Was 6514537 - A

27

OIL COOLER NLA - Was 6557282 - A

28

6512897

NUT

29

31H42

CLIP

30

11K7

ADAPTER

31

CLAMP NLA - Was 6H000041B - A

32

6558023

MOUNT

33

17C816

BOLT

34

61D8

NUT 5

35

17C612

BOLT 5

36

ADAPTER NLA - Was 6559340 - A

37

6558958

HOSE

38

6558959

HOSE

39

6560702

BOLT hollow

40

6560701

FITTING banjo

41

58K118

O RING 10

42

79K10

O RING 10 Was 91F000007B - A

43

79K6

O RING 10 Was 91F000005B - A

44

PUMP See Illustration HYDROSTATIC PUMP/ B21405

45

6576451

KIT See Illustration CLOSED CENTER KIT/ C3054 CLOSED CENTER
