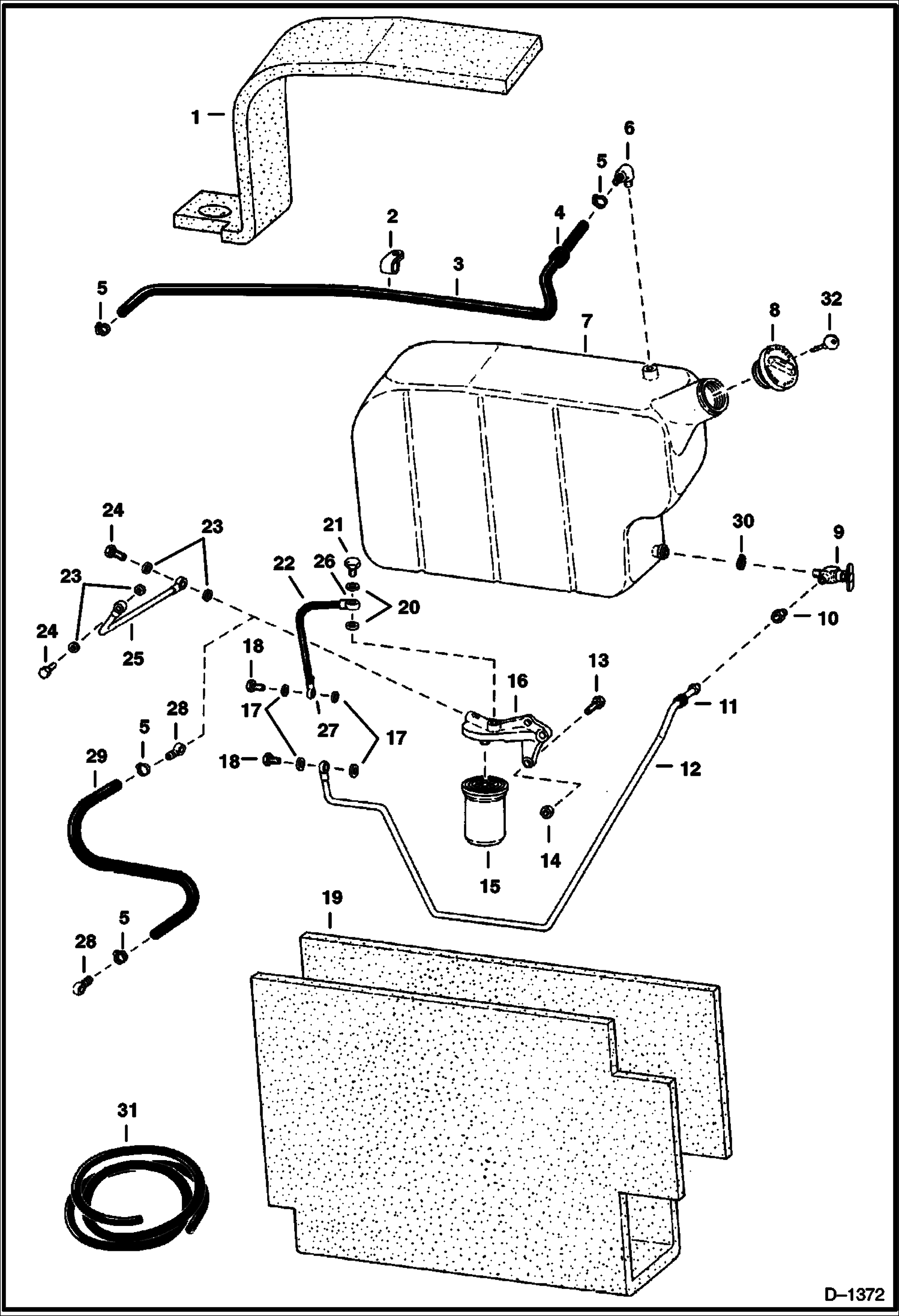

Запчасти Bobcat 500s FUEL SYSTEM MAIN FRAME

1

6555909

INSULATION

2

CLIP NLA - Was 6H000030B - A

3

HOSE NLA - 40'' (1016 mm) long - Order Ref. 31

4

1023368

GROMMET

5

42HS04

CLAMP, HOSE Was 6515575 - A

6

6555920

ELBOW

7

TANK NLA - Order 6560211 - Was 6557743 - A

8

6632468

CAP Was 6555717 - A

8

CAP NLA - Locking - W/Ref. 32 - Code GC020 - Was 6635877 - A

8

6661696

CAP, FUEL LOCKING locking - W/Ref. 32 - Code PK510

9

6512138

VALVE

10

CONNECTOR NLA - Was 59F000004B - A

11

6555249

GROMMET

12

TUBE NLA - Order 1 - 6505813 , 1 - 6598832 , 2 - 6515575 & 6 ft. of 672221B

13

17C624

BOLT 5

14

61D6

NUT 5

15

4121609

FILTER filter

16

HEAD See BTI226 NLA - filter

17

1FM80140

WASHER

18

6555923

BOLT hollow

19

6555908

INSULATION

20

6513763

WASHER Was 2FM14180 - A

21

6555921

BOLT hollow

22

HOSE NLA - 6'' (152,4 mm) long - Order Ref. 31

23

2FM12155

WASHER

24

6666396

SCREW hollow - Was 6555922 - A

25

TUBE NLA - Order Ref. 5, 28 & 29

26

6511899

ADAPTER insert

27

6513123

BANJO insert

28

6511033

CONNECTOR

29

HOSE NLA - 10'' (254 mm) long - Order Ref. 31

30

42HS8

CLAMP Was 6514005 - A

31

6577821

HOSE bulk - sold per foot - Was 672221 - A

32

6654374

KEY Code GC020

32

6587458

KEY Code PK510
