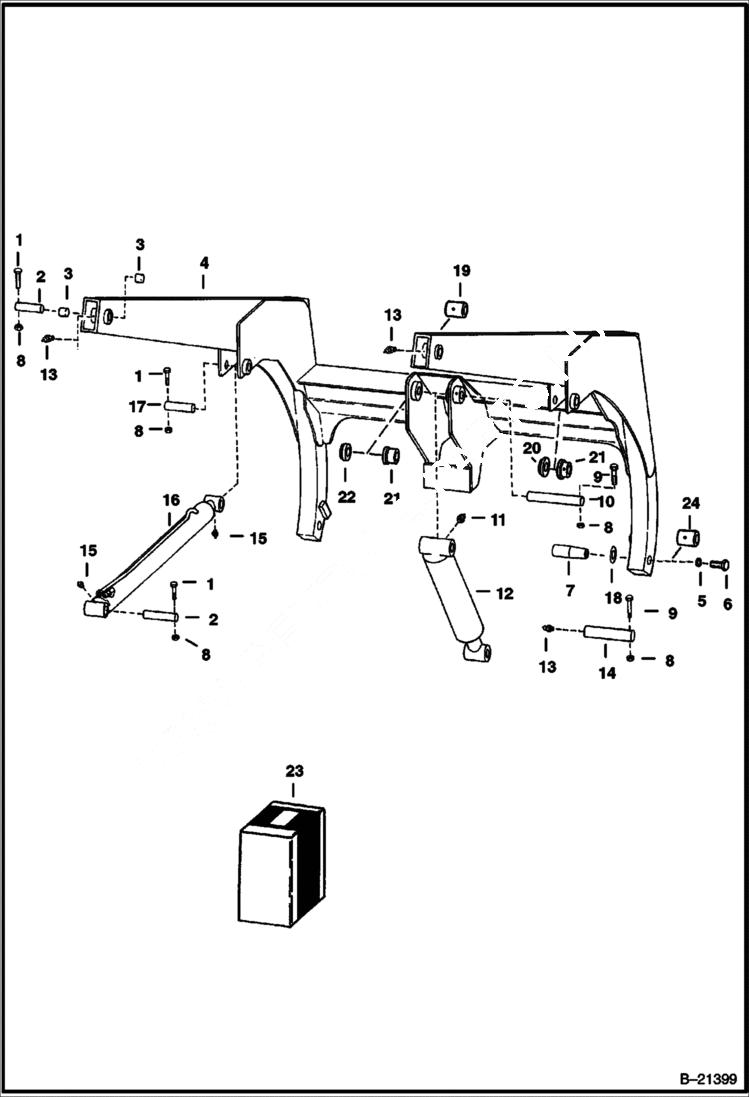

Запчасти Bobcat 500s LIFT ARM S/N 12120 & Below MAIN FRAME

1

17C636

BOLT

1

17C640

BOLT 5

2

6551663

PIN, PIVOT

2

6547595

PIN

3

6552920

BUSHING

4

LIFT ARM See BTI121 NLA

4

LIFT ARM NLA - Order 6711780 Boom, 6706143 Bob-Tach & 6565503 Mount - Was 6562941 - A

5

6555455

WASHER

6

17C1020

BOLT 5 1.25'' (31,8 mm) long

6

31C1064

BOLT 4'' (101,6 mm) long - Was 17C001064 - B

7

PIN NLA - Order 6707521 Pin Kit - Was 6555449 - A

7

6707521

PIN KIT W/6732012 Pin, 31C001064B Bolt & 6722967 Instructions

7

6732012

PIN, PIVOT Was 6707042 - A

7

6722967

INSTRUCTIONS

8

85D6

NUT, 5

9

17C632

BOLT 5

10

6704288

PIN, PIVOT Was 6553061 - A

11

10H35

FITTING, GREASE 10 .250-28

12

CYLINDER See Illustration TILT CYLINDER/ B21376 See Illustration TILT CYLINDER/ B21340 See Illustration TILT CYLINDER/ B21377 TILT

13

10H25

FITTING, GREASE 5 .125-27

14

6554246

PIN

14

6703572

PIN, PIVOT Was 6560704 - A

15

11H25

FITTING10

16

CYLINDER See Illustration LIFT CYLINDER/ B21375 See Illustration LIFT CYLINDER/ B2206 LIFT

17

6549189

PIN

17

6547493

PIN

18

27E18

WASHER 5 See BTI178

19

6578356

BUSHING Weld On - Was 6557097 - A

20

6555987

BUSHING weld on

21

6555989

BUSHING Weld On

22

6557095

BUSHING Weld On

23

6558228

BUSHING See BTI121 Use when replacing Lift Arm

23

6558229

BUSHING See BTI121 Use when replacing Lift Arm or Upright

24

6714874

BUSHING, WELD-ON weld-on-W/tapered hole - 1.25''(31,8 mm)
