Запчасти Bobcat 500s PANEL & SEAT MAIN FRAME

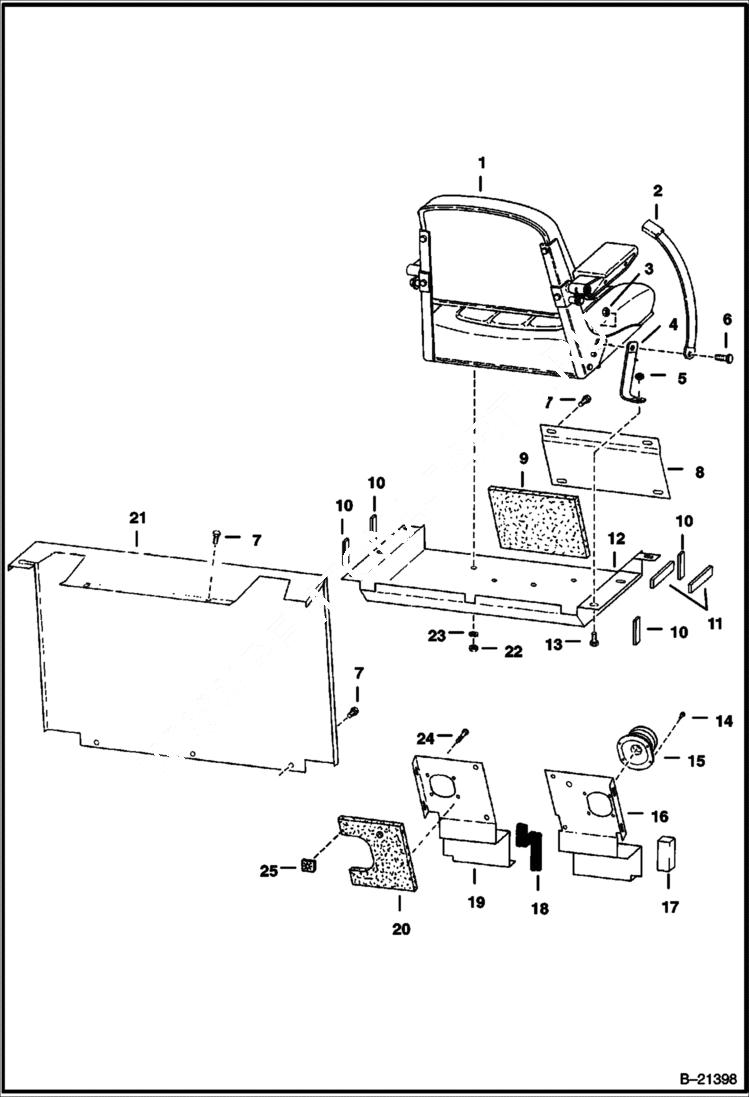

Схема запчастей Bobcat 500s - PANEL & SEAT MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT See Illustration SEAT/ B7184

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

3

81D7

NUT

4

6552184

SEAT BELT

5

57D6

NUT 5

6

17C716

BOLT

7

84G3712

BOLT 5

8

6554087

PLATE

9

6554365

INSULATION

10

FOAM STRIP NLA

11

FOAM STRIP NLA

12

PLATE NLA - seat - Was 6555648 - A

13

37C616

BOLT Was 6514537 - A

14

FASTENER NLA

15

6532127

BOOT Was 6563540 - A

16

PANEL See BTI151 NLA - RH - Was 6561712

16

6563541

PANEL R.H.

17

FOAM STRIP NLA

18

BEADING 10'' - Order 2 feet of 6645705

19

6554097

PANEL L.H.

19

6563543

PANEL L.H.

20

6554366

INSULATION

21

6553796

PANEL

22

61D6

NUT 5

23

4E6

WASHER

24

6555293

NAIL

25

6555294

CLIP

Выбрано товаров: 27
