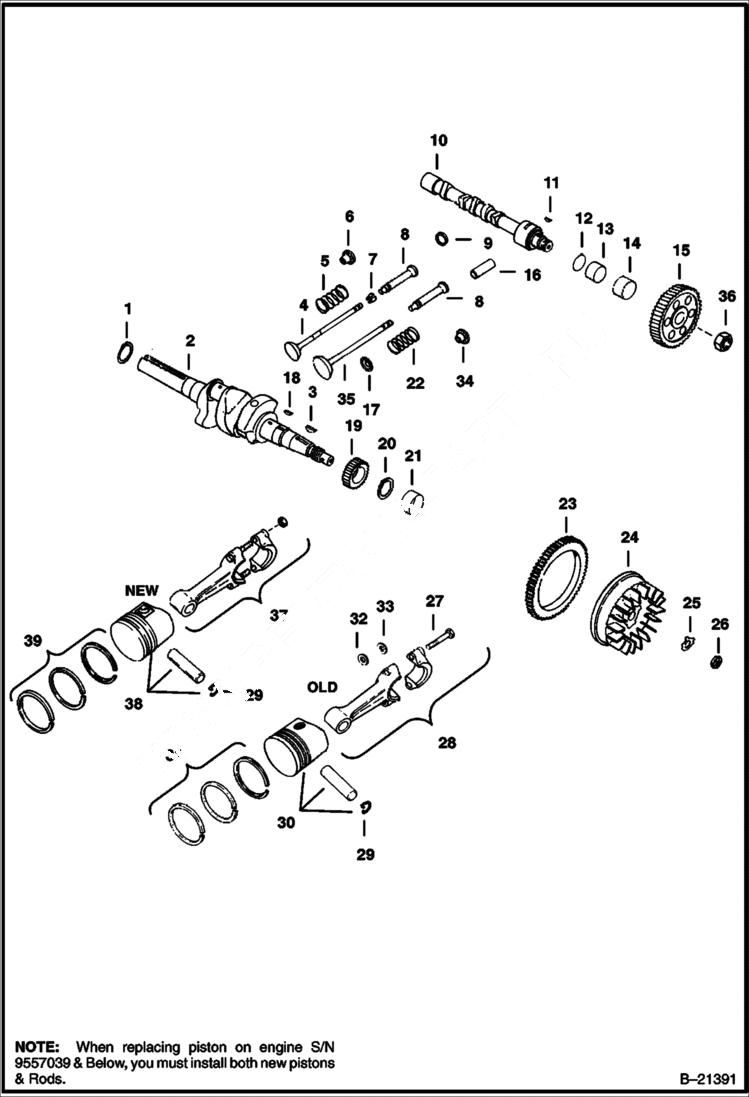

Запчасти Bobcat 500s CRANKSHAFT, CAMSHAFT, VALVES & PISTON POWER UNIT

1

992753

SNAP RING

2

CRANKSHAFT NLA - Was 6512285 - A

3

6J808

KEY, WOODRUFF

4

6519668

VALVE exhaust

5

6518898

SPRING valve exhaust

6

6632091

ROTATOR exhaust valve - Was 6518870 - A

7

6518861

KEY RETAINER

8

TAPPET NLA - Was 6512179 - A

9

6518872

INSERT intake valve

10

CAMSHAFT NLA - Was 6512180 - A

11

6J404

KEY, WOODRUFF

12

6517232

PLUG

13

BUSHING NLA - rear camshaft - Was 6512184 - A

14

6512183

BUSHING front camshaft

15

GEAR NLA - camshaft - Was 6512178 - A

16

6518882

VALVE GUIDE

17

6518883

RETAINER valve spring

18

5J605

KEY

19

GEAR NLA - crankshaft - Was 6512186 - A

20

659065

RING

21

MAIN BEARING NLA - Standard - Was 6512185 - A

21

6513701

MAIN BEARING .010'' (0,25mm)

21

6513702

MAIN BEARING .020'' (0,51mm)

22

SPRING NLA - valve - Was 6512177 - A

23

RING GEAR NSS - Order Ref. 24

24

6512201

FLYWHEEL W/Ring Gear

25

NUT NLA - Was 6512263 - A

26

8D16

NUT

27

BOLT NSS

28

6513570

ROD See BTI128 Std.

28

6513571

ROD See BTI128 .010'' (0,25mm) undersized

29

6513949

RETAINER piston pin

30

6632360

PISTON ASSY. See BTI145 W/Rings Std. - W/Ref. 29 & 31 - Was 6514699 - A

30

6632361

PISTON ASSY. See BTI145 W/Rings .003'' (0,08 mm) - W/Ref. 29 & 31 - Was 6514700 - A

30

6632362

PISTON ASSY. See BTI145 W/Rings .010'' (0,25 mm) - W/Ref. 29 7 31 - Was 6514701 - A

30

6632363

PISTON ASSY. See BTI145 W/Rings .020'' (0,51 mm) - W/ref. 39 & 31 - Was 6514702 - A

30

6632364

PISTON ASSY. See BTI145 W/Rings .030'' (0,76 mm) - W/ref. 29 & 31 - Was 6514703 - A

31

RING KIT NLA - Std. - For one piston - Was 6512228 - A

31

RING KIT NLA - .010 - For one piston - Was 6512229 - A

31

RING KIT NLA - .020 - For one piston - Was 6512230 - A

31

RING KIT NLA - .030 - For one piston - Was 6512231 - A

32

4E6

WASHER

33

890414

WASHER

34

6512175

RETAINER valve spring

35

6512176

INTAKE VALVE

36

6654125

NUT

37

ROD NLA - std - Was 6661146 - A

37

ROD NLA - .010'' (0,25mm) - Was 6661147 - A

38

6661129

PISTON ASSY. std. - W/Ref. 39

38

6661130

PISTON ASSY. .003'' (0,08 mm) - W/Ref. 39

38

6661131

PISTON ASSY. .010'' (0,25 mm) - W/Ref. 39

38

PISTON ASSY. NLA - .020'' (0,51mm) - W/Ref. 39 - Was 6661132 - A

38

6661133

PISTON ASSY. .030'' (0,76 mm) - W/Ref. 39

39

6661181

RING SET std.

39

6661134

RING SET .010'' (0,25mm)

39

6661135

RING SET .020'' (0,51mm)

39

6661136

RING SET .030'' (0,76mm)
