SHROUDING

Запчасти Bobcat 500s SHROUDING POWER UNIT

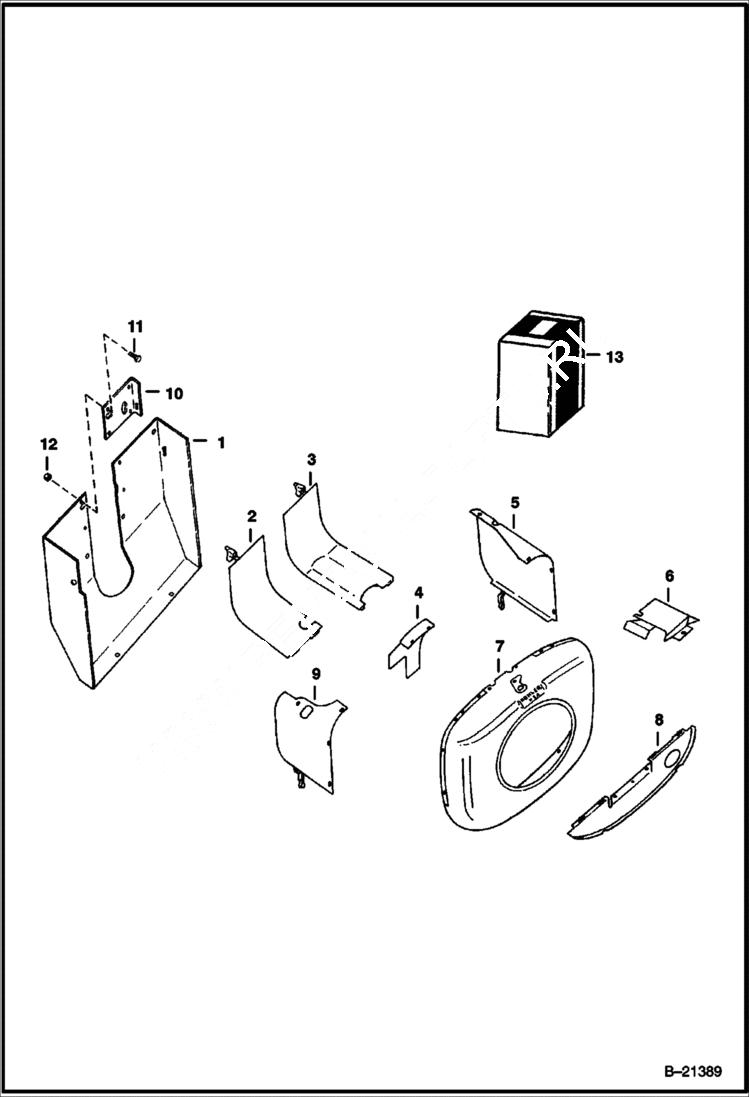

Схема запчастей Bobcat 500s - SHROUDING POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HEAT SHIELD NLA - Order Ref. 13

1

6561948

HEAT SHIELD

2

SHIELD NLA - Was 6512166 - A

3

SHIELD NLA - Was 6512170 - A

4

SHIELD NLA - Was 6512174 - A

5

SHIELD NLA - Was 6512316 - A

6

6512169

SHIELD

7

6645010

SHIELD blower - Was 6512168 - A

8

SHIELD NLA - Was 6512171 - A

9

SHIELD NLA - Was 6512167 - A

10

6561949

MOUNT jackshaft

11

17C508

BOLT

12

61D5

NUT

13

6561963

KIT shield
