Запчасти Bobcat 500s VANE PUMP HYDROSTATIC SYSTEM

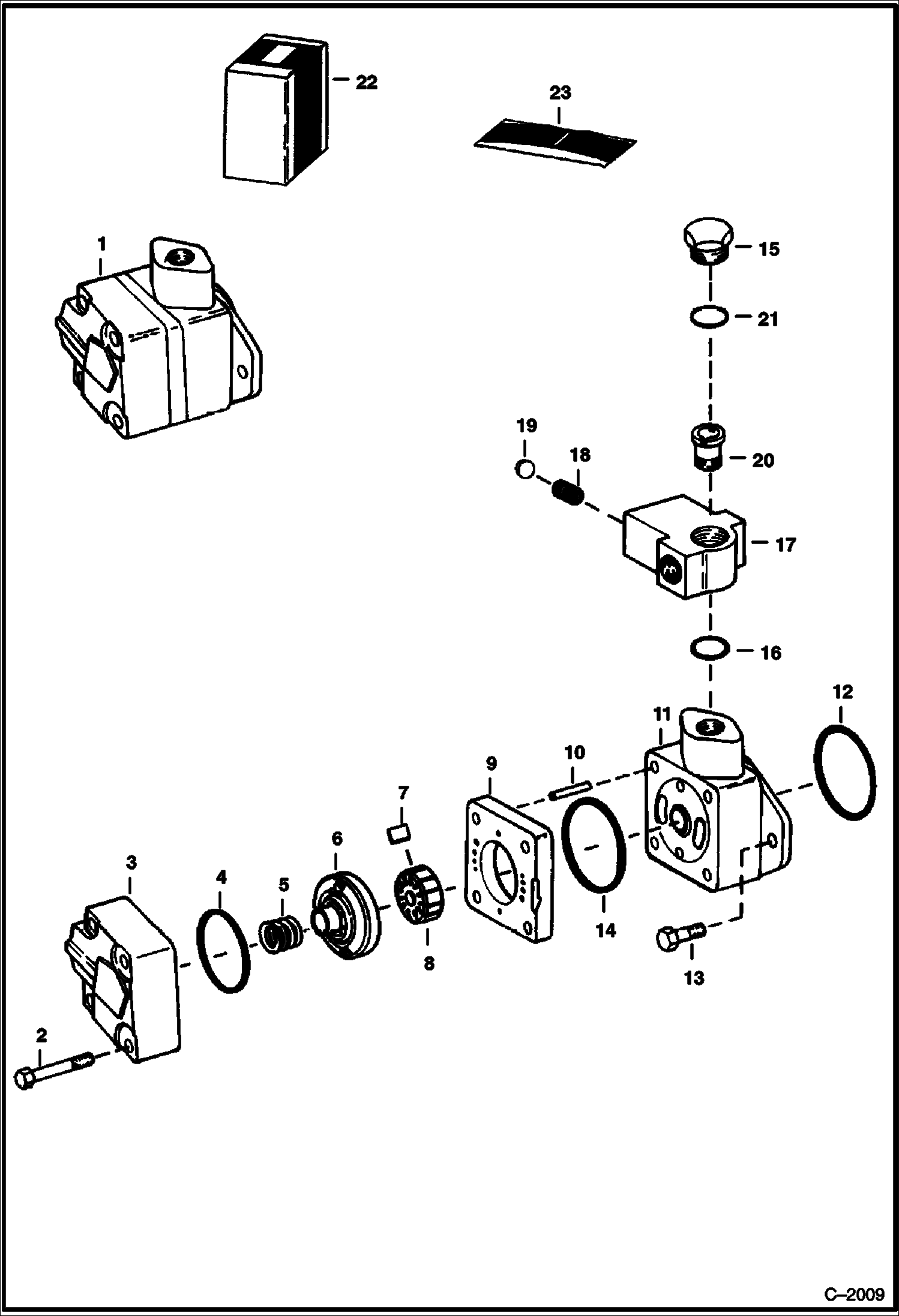

Схема запчастей Bobcat 500s - VANE PUMP HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6512594

PUMP Ref. 2 - 13

2

17C648

BOLT 5

3

COVER NLA

4

25K30214

O RING 10

5

992510

SPRING

6

PLATE NLA - pressure - Was 6649261 - A

7

VANE NSS

8

ROTOR NSS - vane

9

RING NSS

10

PIN NSS

11

BODY NLA

12

6519704

O-RING

13

17C616

BOLT 5

14

25K30216

O RING 10

15

6553899

PLUG W/Ref. 21

16

79K16

O RING 10 Was 91F000010B - A

17

BLOCK NLA - Use 1-6559533 , 1-6598384

17

6559533

BLOCK

18

6553897

SPRING

18

SPRING NLA - Was 6558618 - A

18

6559896

SPRING

19

6515078

POPPET

20

6560137

RETAINER

21

79K24

O RING 10 Was 91F000012B - A

22

992512

KIT cartridge - Ref. 7 - 9

23

6551834

SEAL KIT Ref. 4, 12 & 14

Выбрано товаров: 26
