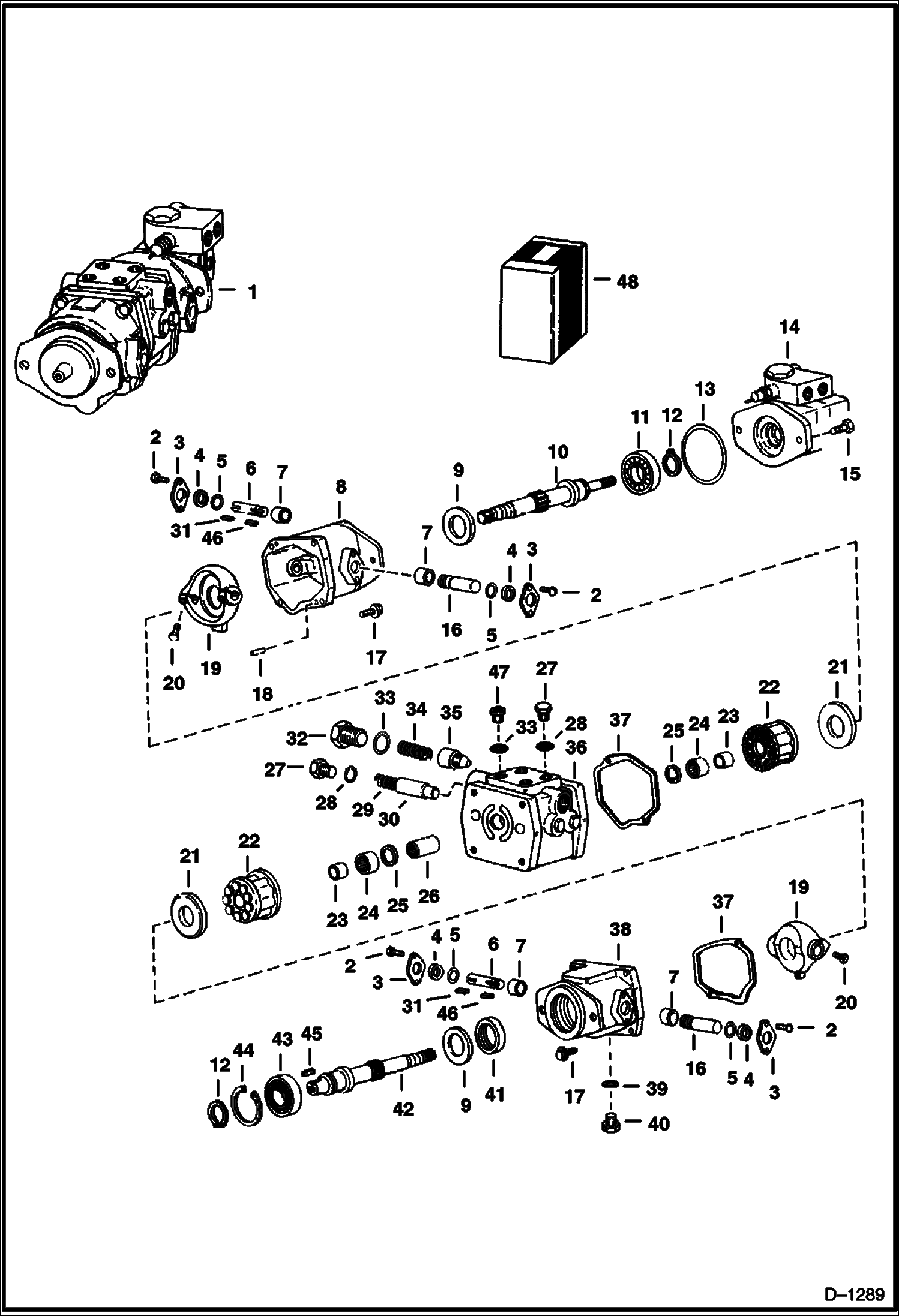

Запчасти Bobcat 500s HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

PUMP See BTI153 NLA

1

6561056

PUMP New

1

6599506REM

PUMP, HYD COMPLETE Remanufactured - Was 6599506 - A

2

85G1004

SCREW

3

PLATE Was 6519293 - A

4

O-RING NSS

5

O-RING NSS

6

PINTLE NSS - control

7

BEARING NSS

8

HOUSING NSS - Was 6519299 - A

9

6519655

SPACER

10

SHAFT NLA - Was 6519345 - A

11

853189

BEARING

12

711298

RING

13

6519704

O-RING

14

6512594

PUMP See Illustration VANE PUMP/ C2009 VANE

15

17C616

BOLT 5

16

PINTLE NSS

17

BOLT NLA - Was 71G000624B - A

18

214028

PIN

19

YOKE NPA - Was 6519343 - A

20

17C732

BOLT

21

SWASH PLATE NLA

22

6519302

KIT rotating group - W/Ref. 21

23

SLEEVE NLA - Was 6519347 - A

24

784807

BEARING

25

SNAP RING NLA - Was 6519658 - A

26

COUPLING NLA - Was 6519344 - A

27

24K6

FITTING W/Ref. 28

28

79K8

O RING 10 Was 91F000006B - A

29

SPRING NSS

30

RELIEF VALVE NSS

31

6519657

KEY

32

24K8

PLUG W/Ref. 33

33

79K12

O RING 10 Was 91F000008B - A

34

6512673

SPRING

34

6519701

SPRING

35

POPPET NLA - charge pressure - Was 6519295 - A

36

6519303

VALVE PLATE

37

6519342

GASKET

38

HOUSING NSS - Was 6519298 - A

39

79K10

O RING 10 Was 91F000007B - A

40

24K7

PLUG

41

SEAL NSS

42

6519346

SHAFT

43

1300111

BEARING

44

711406

RING

45

6519654

KEY

46

6519656

KEY

47

47K8

PLUG

48

6519304

SEAL KIT Ref. 4, 5, 13, 28, 33, 37 & 41

48

KIT NLA - pintle - Ref. 6, 7 & 16 - Was 6551835 - A

48

KIT high pressure relief NLA - Ref. 29 & 30 - Was 6512674 - A
