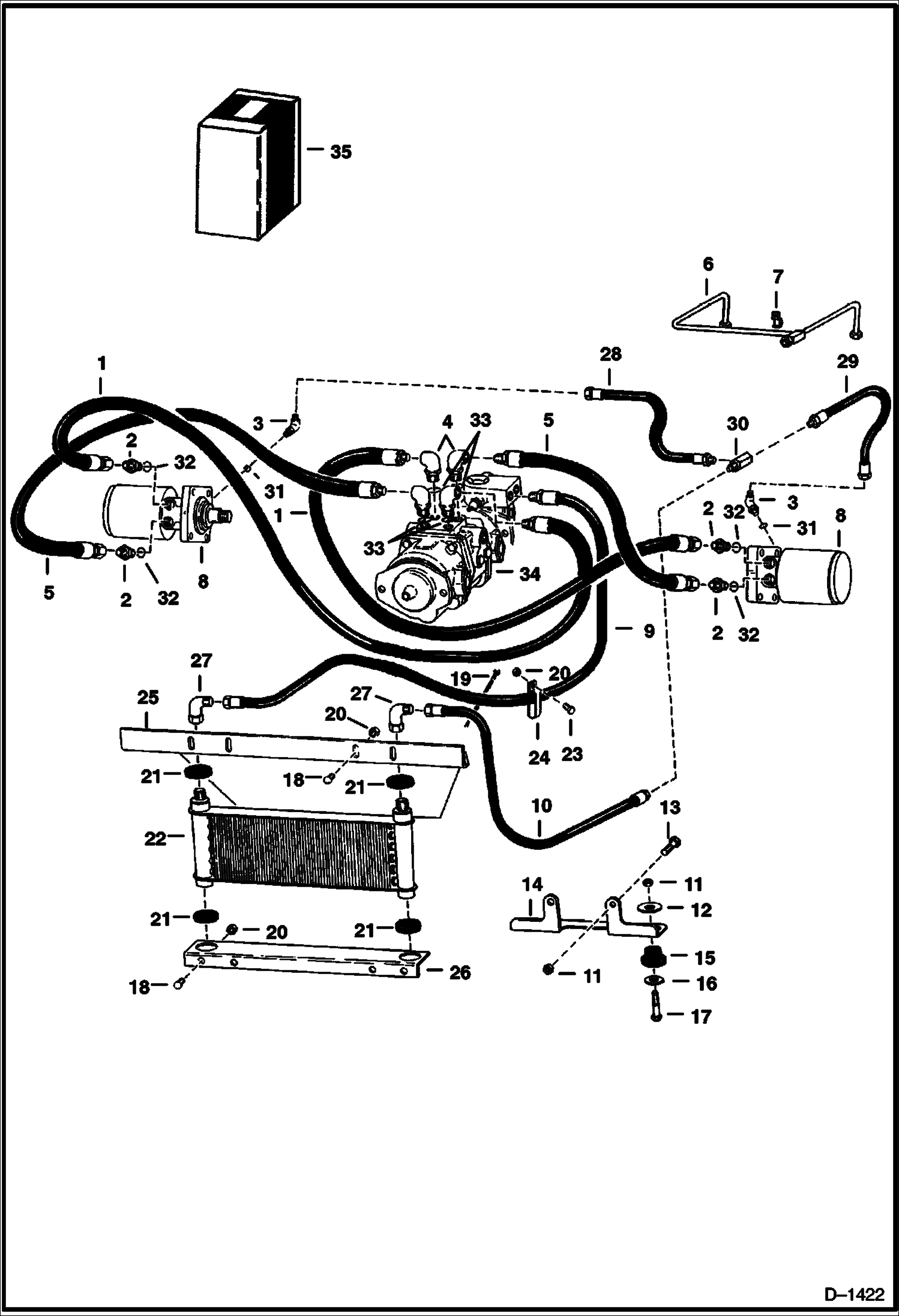

Запчасти Bobcat 500s HYDROSTATIC MOTOR CIRCUITRY S/N 13999 & Below HYDROSTATIC SYSTEM

1

6557647

HOSE

2

730963

CONNECTR W/Ref. 32

3

17K5

ELBOW W/Ref. 31

4

6553390

ELBOW W/Ref. 33

5

6557646

HOSE

6

6557148

TUBE

7

CLAMP NLA - Was 5H000004B - A

8

MOTOR See Illustration HYDROSTATIC MOTOR/ C2388 See Illustration HYDROSTATIC MOTOR/ B21382

9

6553857

HOSE

10

6554256

HOSE

11

81D8

NUT

12

6515817

WASHER

13

17C820

BOLT

14

6557147

BRACKET

15

6560633

DAMPENER shock

16

6543321

WASHER

17

BOLT NLA - Was 6553339 - A

18

37C616

BOLT Was 6514537 - A

19

6610510

TIE Was 1715312 - A

20

61D6

NUT 5

21

6511983

GROMMET

22

OIL COOLER NLA - Was 6557282 - A

23

17C612

BOLT 5

24

31H42

CLIP

25

6553431

BRACKET

26

6553432

BRACKET

27

11K7

ADAPTER

28

6558958

HOSE

29

6558959

HOSE

30

ADAPTER NLA - Was 6559340 - A

31

79K6

O RING 10 Was 91F000005B - A

32

79K10

O RING 10 Was 91F000007B - A

33

79K12

O RING 10 Was 91F000008B - A

34

PUMP See Illustration HYDROSTATIC PUMP/ D1289

35

CLOSED CENTER See Illustration CLOSED CENTER KIT/ C3054 KIT
