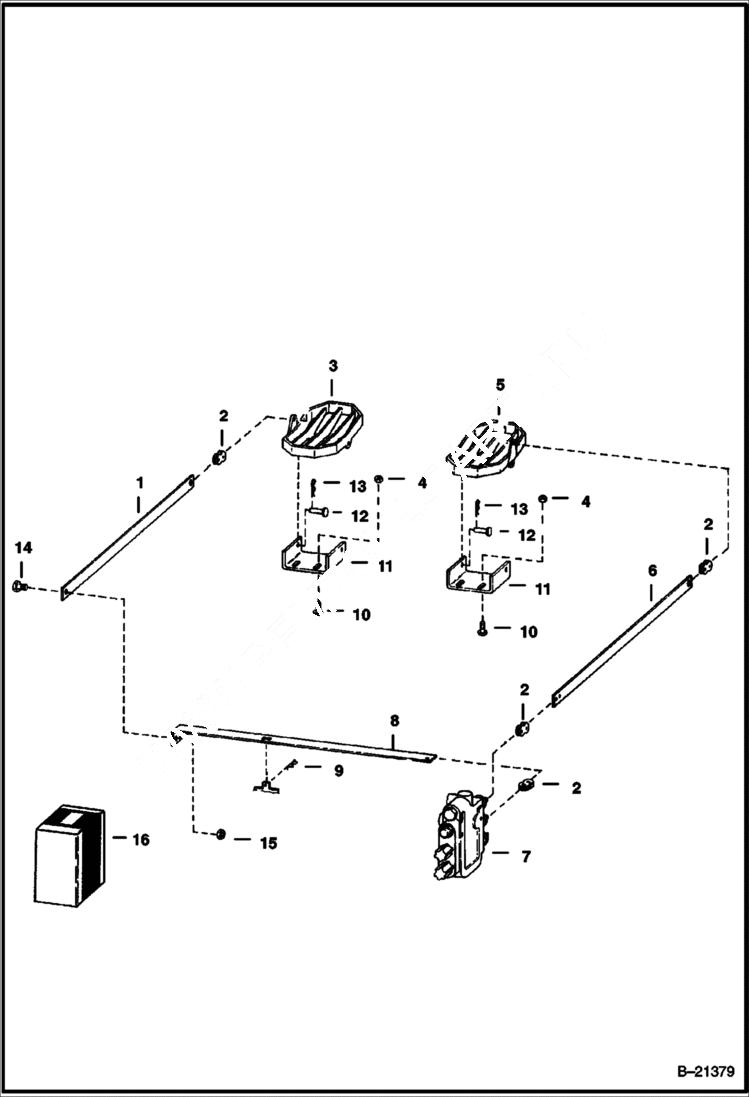

Запчасти Bobcat 500s CONTROLS PEDALS S/N 11784 & Below HYDRAULIC SYSTEM

1

6552711

BAR

2

6515186

CONNECTOR

3

6552669

PEDAL

4

57D6

NUT 5

5

6552670

PEDAL

6

6552713

BAR

7

VALVE See Illustration HYDRAULIC VALVE/ B21378

8

6552710

LEVER

9

1318565

COTTER PIN

10

6704349

BOLT Was 6514537 - A

11

6558447

BRACKET

12

1737762

PIN

13

1306637

CLIP

14

17C612

BOLT 5

15

85D6

NUT, 5

16

6560111

KIT pedal - To change to new style pedals
