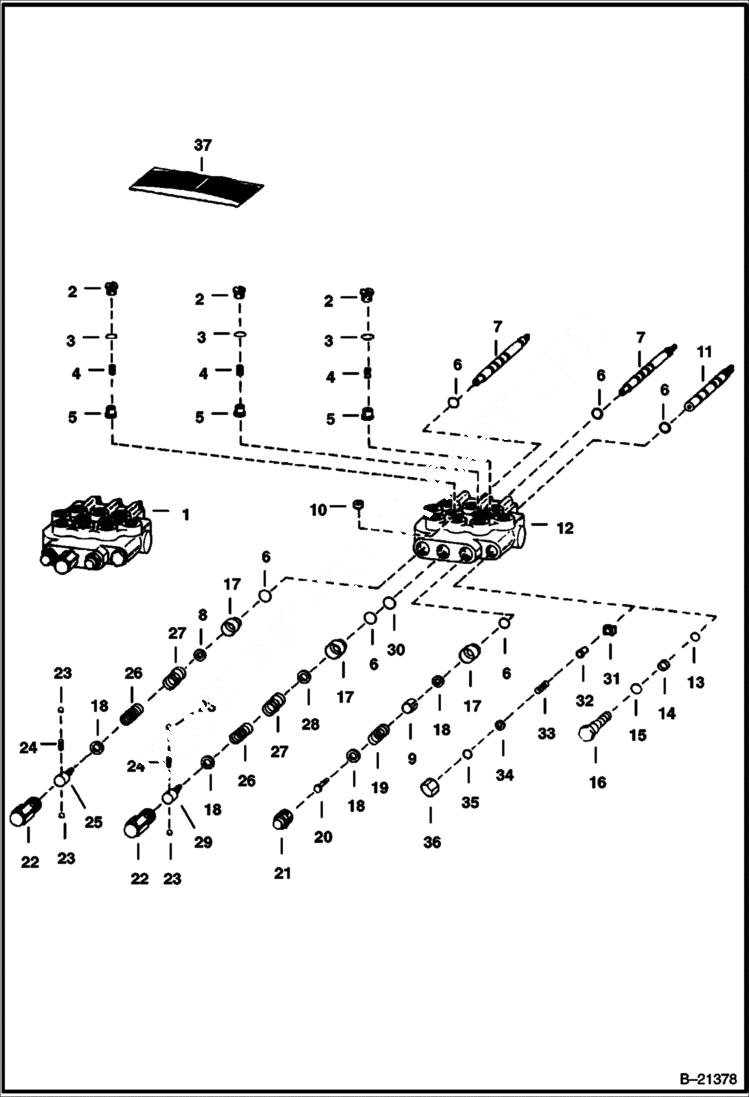

Запчасти Bobcat 500s HYDRAULIC VALVE HYDRAULIC SYSTEM

1

VALVE NLA - 34573-AAA

1

6562031

VALVE 34573-AAP

2

6632473

PLUG W/Ref. 3 - Was 947754B - A

3

58K112

O RING 10

4

1550482

SPRING

5

4149071

PLUNGER L

6

25K40020

O RING 10

7

SPOOL NLA

8

6510804

WASHER

9

SPACER NLA

10

6512249

ORIFICE

11

SPOOL NLA

12

HOUSING NLA

13

25K30020

O-RING 10 34573-AAA Valve

14

73K114

RING back-up - 34573-AAA Valve

15

25K30024

O RING 10 34573-AAA Valve

16

RELIEF VALVE NLA - 34573-AAA valve - 1500 psi - Was 6512247 - A

17

6510809

BUSHING

18

5290338

WSH Was 529038

19

6510858

SPRING

20

6511039

BOLT spool

21

6510811

CAP

22

6510810

CAP

23

949093

BALL

24

6510806

SPRING

25

6514705

SCREW spool detent

26

6510807

SPRING

27

6512250

SPRING

28

6511034

WASHER

29

6511038

SCREW spool detent

30

O-RING NSS

31

6598214

SEAT 34573-AAP Valve

32

6598212

POPPET 34573-AAP Valve

33

6598210

SPRING 34573-AAP Valve

34

6598211

SHIM 34573-AAP Valve

35

O-RING NSS - 34573-AAP Valve

36

6598213

CAP 34573-AAP Valve

37

SEAL KIT NLA - 34573-AAA Valve - Order Ref. 3, 6 & 13-15 - Was 6511621 - A

37

6598220

SEAL KIT 34573-AAP Valve - Ref. 3, 6, 31 & 36
