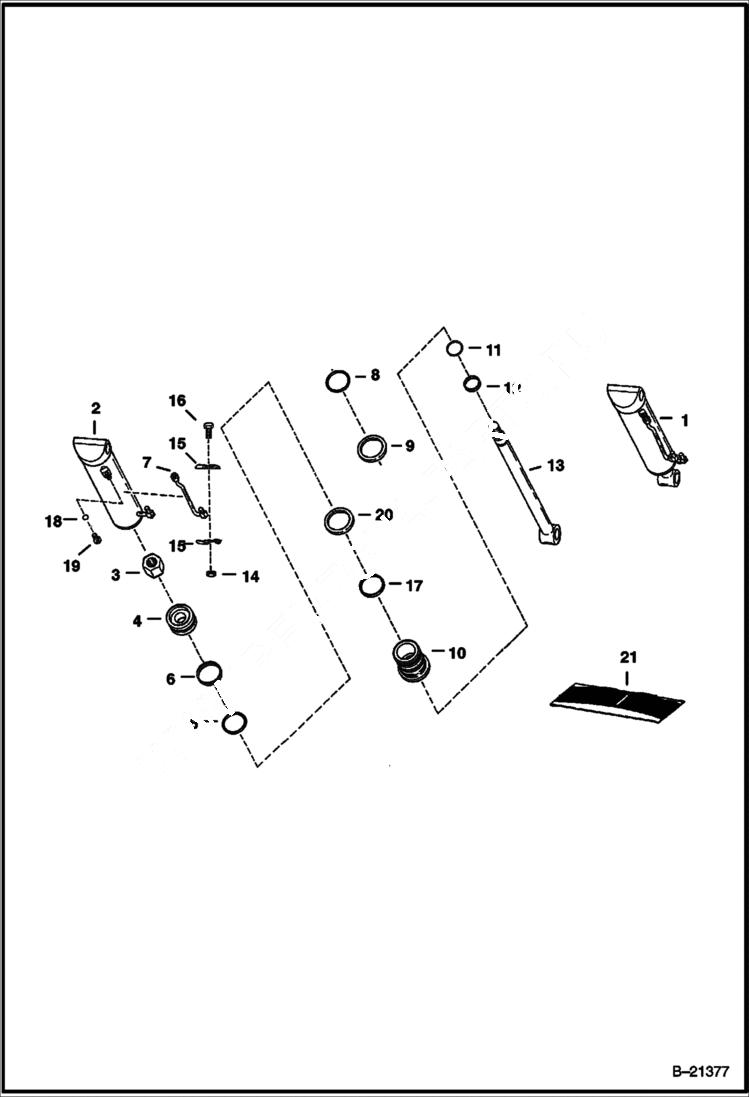

Запчасти Bobcat 500s TILT CYLINDER W/Replaceable Tube HYDRAULIC SYSTEM

1

6589331

CYLINDER, TILT tilt - Ref. 2 - 16

2

CASE NLA - Order 6589331 - Was 6589332 - A

3

6803253

NUT Was 92D000018B - B

4

6803870

PISTON Was 6553912 - A

5

947088

RING, BACK-UP

6

25K30218

O RING 10

7

6593392

TUBE

8

58K232

O RING 10

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

6538367

HEAD, CYL TILT

11

6538141

SEAL

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6592897

ROD Was 6553913 - A

14

95D6

NUT Was 91D-6 - A

15

6502426

CLAMP

16

17C624

BOLT 5 Was 17C000620B - B

17

58K234

O RING 10 Was 54K40300 - B

18

79K6

O RING 10 flat boss face

18

95K6

O'RING tapered boss face

19

PLUG NLA - W/Ref. 18 - flat boss face - Was 47K000005B - A

19

90KV5

PLUG W/Ref. 18 - tapered boss face

20

7008355

SEAL, QUAD

21

6589798

SEAL KIT Ref. 3, 5, 6, 8, 9, 11, 12 & 17 - Was 6587989 - A
