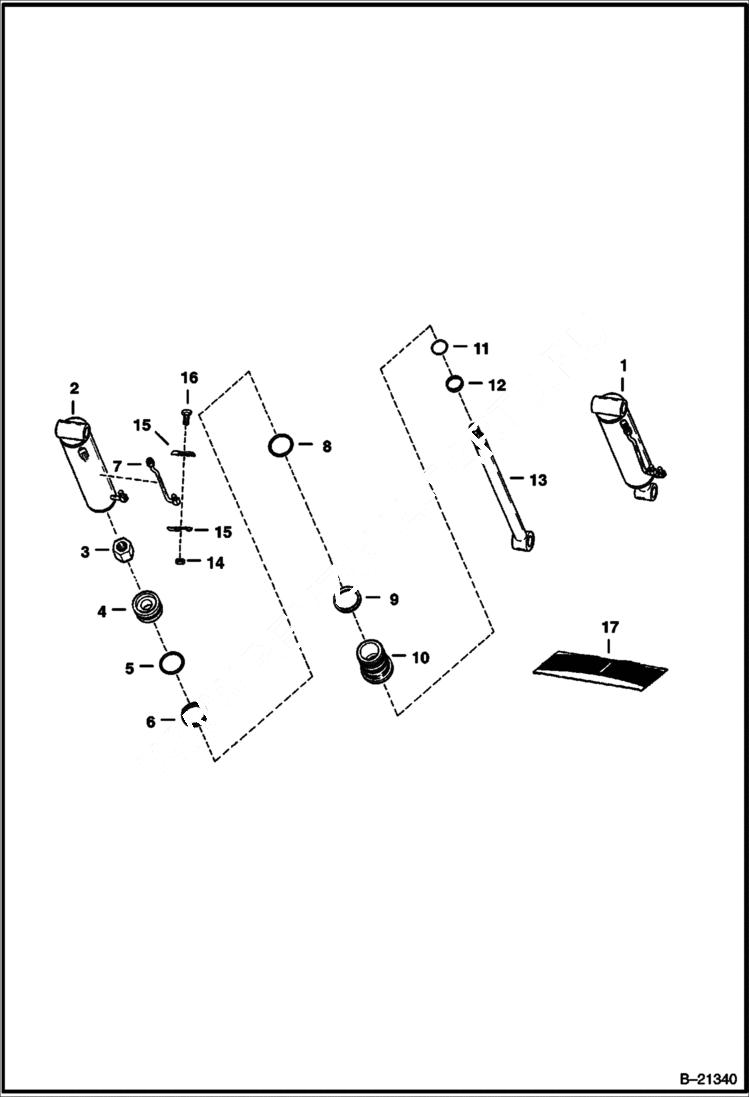

Запчасти Bobcat 500s TILT CYLINDER W/Replaceable Tube HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - Ref. 2 - 16 - Order 6589331 Cylinder - Was 6592974 - A

2

CASE NLA - Order 6589332 & 6538367 Head - Was 6592972 - A

3

6803253

NUT Was 92D000018B - B

4

6803870

PISTON Was 6553912 - A

5

947088

RING, BACK-UP

6

25K30218

O RING 10

7

6593392

TUBE

8

58K232

O RING 10

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

6588912

HEAD Was 6531649 - A

11

6538141

SEAL

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6553913

ROD Was 6592897 - A

14

85D6

NUT, 5

15

6502426

CLAMP

16

17C620

BOLT

17

6589798

SEAL KIT Ref. 3, 5, 6, 8, 9, 11 & 12 - Was 6587989 - A
