Запчасти Bobcat 500s AUXILIARY HYDRAULICS S/N 11999 & Below HYDRAULIC SYSTEM

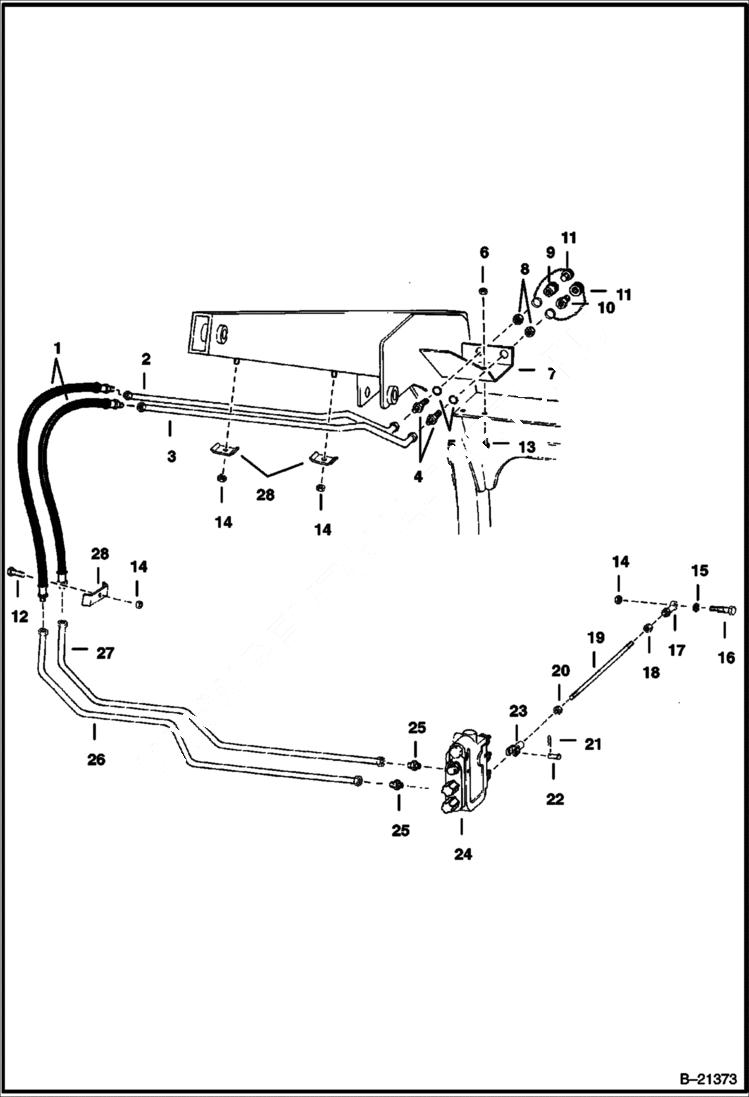

Схема запчастей Bobcat 500s - AUXILIARY HYDRAULICS S/N 11999 & Below HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6553454

HOSE

2

6554148

TUBE

3

6554147

TUBE

4

45K6

CONNECTR

5

79K8

O RING 10 Was 91F000006B - A

6

61D6

NUT 5

7

6554136

BRACKET

8

86F6

NUT

9

6512159

QUICK COUPLER See BTI302 Female

9

58K211

O RING 10

10

6513634

QUICK COUPLER See BTI302 Male

11

6513709

CAP PLUG rubber

11

6515167

PLUG Steel

11

6515168

CAP Steel

12

6514571

BOLT

13

17C612

BOLT 5

14

85D6

NUT, 5

15

6557831

WASHER

16

17C620

BOLT

17

6512955

SWIVEL L.H. threads

18

NUT NLA - Was 13D000005B - A

19

6567057

ROD

20

8D6

NUT 5

21

6513495

COTTER PIN

22

6559014

CLEVIS PIN

23

6560526

CLEVIS

24

VALVE See Illustration HYDRAULIC VALVE/ B21378

25

15K6

ADAPTER

26

6557150

TUBE

27

6553458

TUBE

28

6502203

CLAMP

Выбрано товаров: 31
