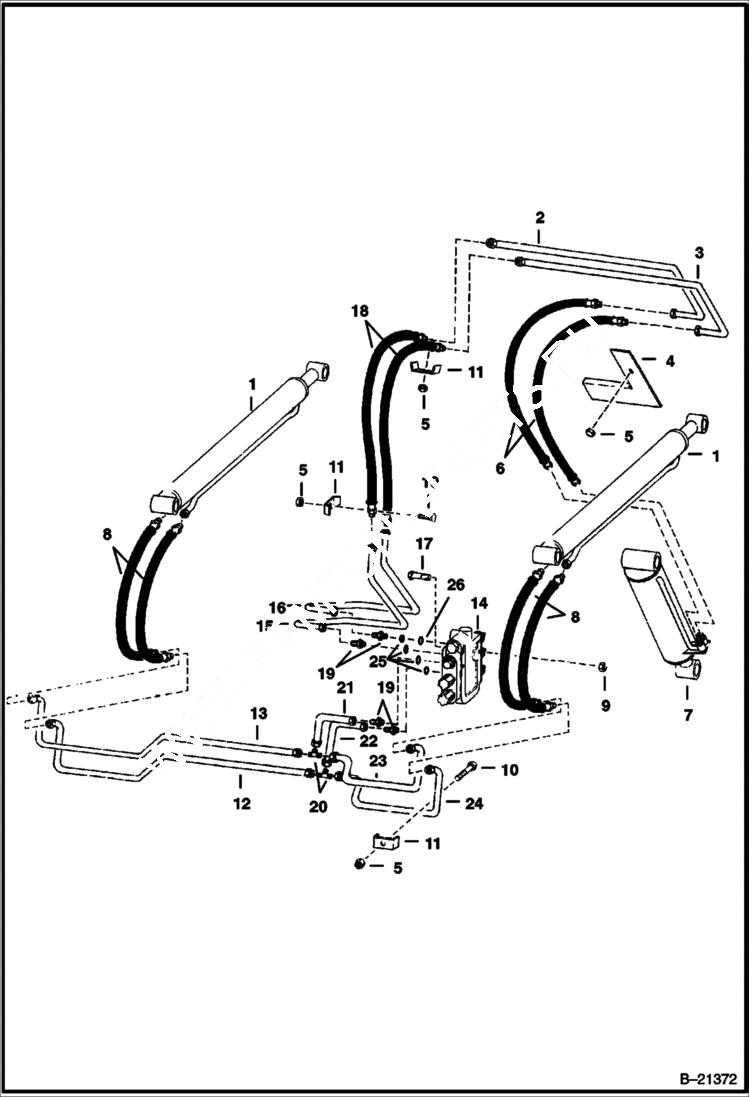

Запчасти Bobcat 500s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B21375 See Illustration LIFT CYLINDER/ B2206 LIFT

2

6553159

TUBE

3

6553160

TUBE

4

6553422

COVER

5

85D6

NUT, 5

5

84G3720

BOLT

6

6553204

HOSE

7

CYLINDER See Illustration TILT CYLINDER/ B21377 See Illustration TILT CYLINDER/ B21376 TILT

8

6553244

HOSE

9

85D5

NUT 5

10

6514571

BOLT

11

6502203

CLAMP

12

6560096

TUBE

13

6560097

TUBE

14

VALVE See Illustration HYDRAULIC VALVE/ B21378

15

6561950

TUBE

16

6553251

TUBE

17

17C532

BOLT 5

17

17C548

BOLT

18

6553454

HOSE

19

15K6

ADAPTER

20

10K6

FITTING

21

6560093

TUBE

22

TUBE NLA - Was 6560092 - A

23

6560095

TUBE

24

6560094

TUBE

25

79K8

O RING 10 Was 91F000006B - A

26

6631552

ORIFICE .1093'' (2,78mm) Dia. - Use only when replacing Ross motors with Char Lynn Motors
