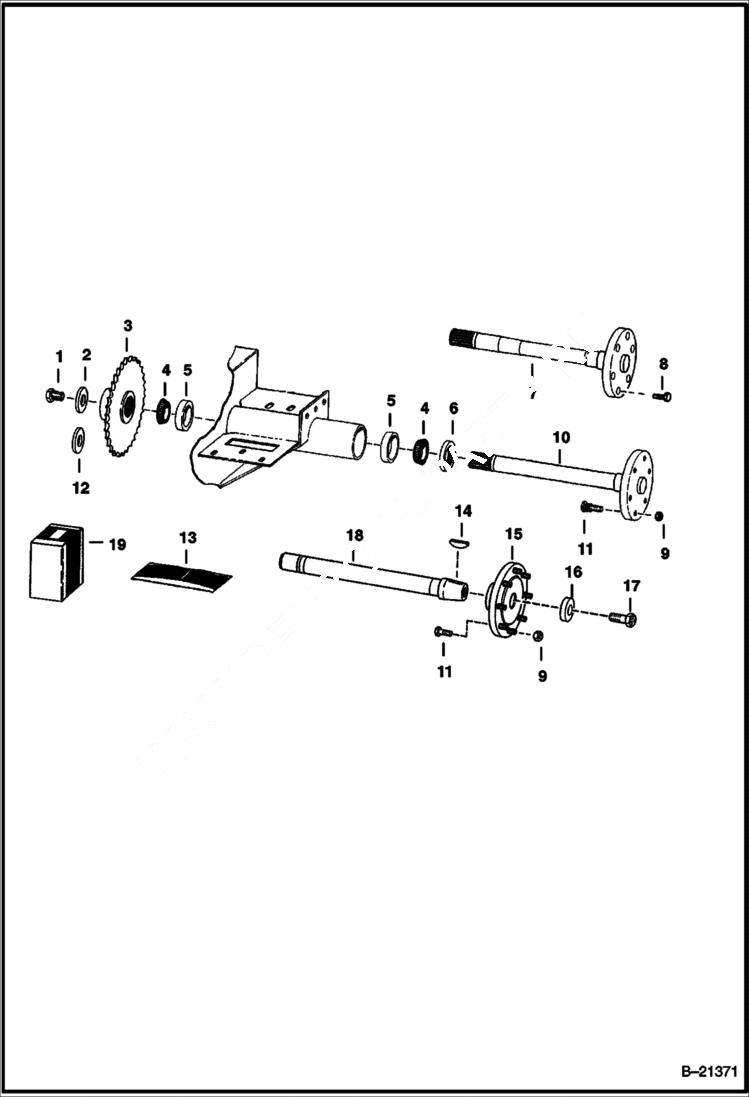

Запчасти Bobcat 500s AXLE DRIVE TRAIN

1

18C1224

BOLT

2

6552871

WASHER

3

6548891

SPROCKET

4

3974866

BEARING, AXLE Was 6511331 - A

5

RACE NSS - Order Ref. 4 - Was 6511330 - A

6

6660126

SEAL Was 6512114 - A

7

AXLE NLA

8

6553418

BOLT wheel

9

6557188

NUT 1/2'' (12,7mm)

9

6564669

NUT, 10 wheel - 9/16'' (14,29mm) - Was 6519169 - A

10

AXLE ASSY. NLA - 1/2'' (12,7mm) - Order 6568926 Axle Assy.

10

AXLE ASSY. NLA - W/ 9/16'' (14,29mm) Studs - Was 6568926 - A

11

6564741

BOLT Was 6557187 - A

11

6709170

BOLT, WHEEL 9/16'' (12,7mm) - Was 6559502 - A

12

6563606

WASHER recessed - Use to take up .005'' (0,13mm)or .010'' (0,25mm) end play on axle

13

6568974

KIT See Illustration AXLE SEAL KIT/ B4041 AXLE SEAL

14

6J1664

KEY

15

6706038

HUB W/Ref. 11 - 9/16'' (14,29 mm) stud

16

6716843

WASHER Was 6569461 - A

17

18C1632

BOLT 2 in (50,8mm) long - for Ref. 18 - W/1.5 in. (38,1mm) deep threads - torque to 575-625 ft. lbs.

17

18C1636

BOLT 2.25 in. (57,2mm) long - for Ref. 18 - W/1.65 in. (41,9mm) deep threads - torque to 575-625 ft. lbs.

18

6706039

AXLE ASSY.

19

6722927

KIT Axle - W/Ref. 11 & 14 - 18
