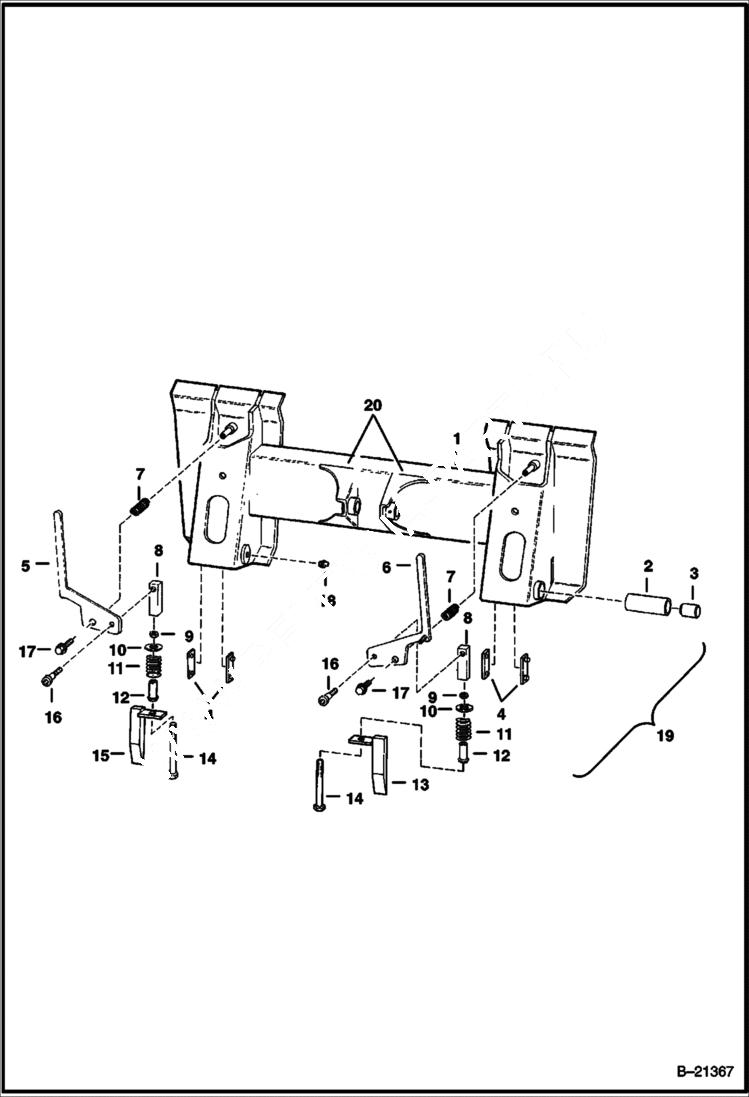

Запчасти Bobcat 500s BOB-TACH S/N 14563 & Above MAIN FRAME

1

FRAME NLA

2

6567114

BUSHING W/Ref. 3

3

6562067

BUSHING

4

6562026

INSERT

5

6563106

LEVER Was 6579698 - A

6

6563107

LEVER Was 6579697 - A

7

6704453

SPRING Was 6503387 - A

8

BLOCK NLA - Order 6565186 Block & 17C000884B Bolt

8

6565186

BLOCK, BOB-TACH WEDGE Use only with 17C000884B Bolt

9

7D8

NUT 5

10

1303141

SPACER

11

6578253

SPRING, COMPRESSION Was 6562018 - A

12

6562019

GUIDE

13

6565189

WEDGE

14

17C880

BOLT 1/2'' x 5'' (12,7mm x 127mm)

14

17C884

BOLT 1/2'' x 5-1/4'' (12,7mm x 133,35mm) - Use with 6565186 Block

15

6565190

WEDGE

16

38C810

BOLT shoulder - Was 661846B - A

17

35C608

BOLT Was 6557232 - A

18

743332

FITTING, GREASE 5

19

BOB-TACH See Illustration DECALS/ E1163 See BTI288 NLA - REF. 1 - 18 - WAS 6562309 - ALSO ORDER 6561383 DECAL - A

20

6557081

GUSSET Weld on
