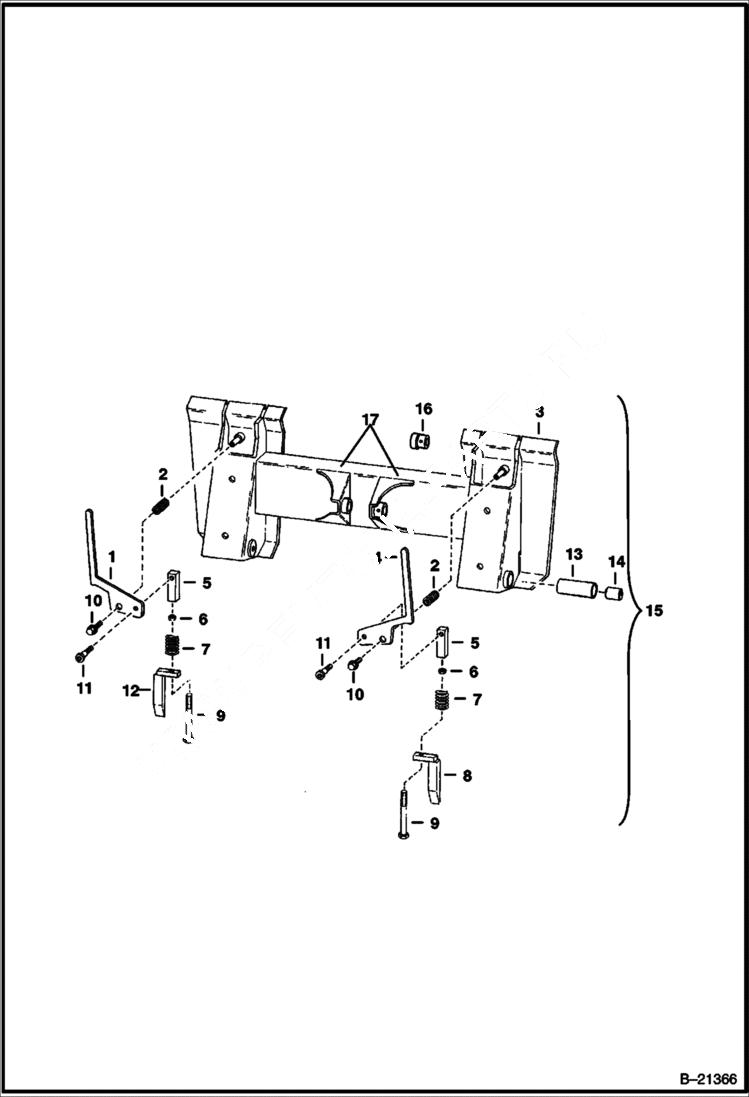

Запчасти Bobcat 500s BOB-TACH S/N 12348 Thru 14562 MAIN FRAME

1

6563106

LEVER L.H. - Was 6579698 - A

2

6704453

SPRING Was 6503387 - A

3

FRAME NLA

4

6563107

LEVER RH - 6579697 - A

5

6557080

BLOCK

6

7D8

NUT 5

7

6548407

SPRING

8

6548913

WEDGE R.H.

9

17C896

BOLT

10

35C608

BOLT Was 6557232 - A

11

38C810

BOLT shoulder - Was 661846B - A

12

6548912

WEDGE L.H.

13

6558424

BUSHING W/Ref. 14

13

6565326

BUSHING W/Ref. 14

14

6554294

BUSHING

14

6589665

BUSHING Was 6562067 - B

15

BOB-TACH See Illustration DECALS/ E1163 See BTI288 NLA - REF. 1 - 14 - WAS 6559774 - ALSO ORDER 6561383 DECAL - A

16

6562642

BUSHING, WELD-ON Weld On

17

6557081

GUSSET Weld on
